The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

Von Duprin 98/9947-F 98/9949-F Center Case

Replacement Center Case for the 9847/9947 and 9849/9949 Exit Devices

Von Duprin Part # 050022

Von Duprin 373L 88 Lever Trim

The Von Duprin 050155 33/99 Cylinder Dogging Conversion Kit converts Hex Dogging Devices to the Cylinder Dogging.  For use with the 33A, 35A, 98 and 99 Devices.

Von Duprin Part # 050115

Von Duprin 22 / 2227 Push Bar End Cap

Cap fits on the ends of the Von Duprin 22 Series Push Bar.

Von Duprin Part # 968598

Von Duprin 050500 88 Latch Tail Kit

The Von Duprin Part # 050500 includes the 1 Latch Tail, 2 Latch Tail Rivets, and 2 Latch Tail Springs.  This product is used on the Von Duprin 88 Rim Device, for the EO, NL, TP and DT functions.  This is not the Latch Tail Kit used on the Fire Rated Von Duprin 88-F Devices.

Von Duprin Part # 050500

Von Duprin 050520 33/3547A/48A Bottom Rod

Replacement Von Duprin 050520 33/3547A/48A Bottom Rod.

Von Duprin Part # 050520

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960

Von Duprin 88 Hinge Case Spring

Used on all Von Duprin 88, 8847, 8827 and 8827 Exit Devices. 4-1/2" long x 5/16" diameter.

Von Duprin Part # 090080

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

Von Duprin 050073 98/9947 98/9949 98/9975 Case Cover

Cover for the Von Duprin 050022, 050029 and 050030 Center Chassis Assemblies.  Cover includes mounting bracket and screws.

Von Duprin Part # 050073

The Von Duprin 22 Center Case 109012 has been around for almost 40 years.  This case will replace all of the non fire rated center cases, meaning all of the devices that have a hex key dogging assembly on the hinge side cover plate.

Von Duprin Part # 109012

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

The Von Duprin 9927 Bottom Latch 050090 replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050401. Mounting screws and bracket are included.

Von Duprin Part # 050090

This Von Duprin Panic Device 7500 Mortise Body Only is used on the Von Durprin 8875, and Von Duprin 98-9975 panic hardware. The body measures 5-7/8" high by 4-1/2" deep and 1" thick. This is the body that has been used since about 1977.

Call or email for pricing on the SS7500, 7500-IN, and E7500 Mortise Bodies and replacement parts for the Lock.

We ship the 7500 in US32D, brushed stainless steel.

The Von Duprin 88 Spring Stop Assembly 050451 is the piece that holds the hinge case spring in place. It is used on all of the Von Duprin 88 models.

Von Duprin Part # 050451
Old Part #107682

Von Duprin 050066 33/3547 98/9947 Compression Spring (10)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 10.

Von Duprin Part # 090066

Von Duprin 900894 230L Tailpiece Auxiliary

The Von Duprin 900894 230L Tailpiece Auxiliary includes the Tailpiece (steel), Tailpiece Guide (nylon), and the Pine Tree Clip (nylon).  The Tailpiece measures about 2-1/2" x 1/4" x 3/32" thick.

Von Duprin Part # 900894

The Von Duprin Exit Device 2227 Center Case 109358 replaces worn out Von Duprin 2227 Surface Vertical Rod Center Cases.  The center case has been the same for the last 30 years.

Von Duprin Part # CASE.107
Old Von Duprin Part # 109358

The Von Duprin 22 Mechanism Metal End Cap 900397 is new for 2016.  This new kit replaces the 900397 with a metal end cap, which is has always been a weak link of the 22 series.  The package includes the End Cap, Bracket and the Mounting Screws.  This cap and bracket will work on all of the 22 and 2227 series.

Von Duprin part # 900397

Von Duprin 050023 98/9975-F Center Case Kit

The Von Duprin 050023 98/9975-F Center Case Kit less cover is used on the 9875 and 9975, Panic and Fire Rated Hardware.

Von Duprin Part # 050023

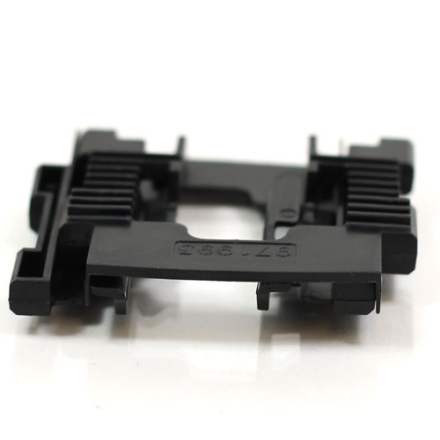

Von Duprin Push Bar Guide 090049

Fits on the end of the push bar assembly, reduces noise and friction. Used on the Von Duprin 33A, and 99 / 98's

Von Duprin Part # 090049
Old Von Duprin Part # 971993

Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw.  I would recommend the D100, Panic Bar Retainer, for dogging down your device.

Von Duprin 88 dog screw 14 threads per inch

Von Duprin Part # 090083

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759

Von Duprin 22, 33, 9927 Bottom latch.

Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.

Includes screws and sometimes the bracket

Von Duprin Part # 050401

Von Duprin 8827-F Special Hex Stud Kit

The Von Duprin Special Hex Stud mounts on the upper and lower latches.  The cover attaches to the Hex Stud, it is like a spacer.

Von Duprin Part # 050478
Old Part # 961218

The Von Duprin 050580 Weather Stripping is for there 5654 and 5754 Mullions.  Each strip is 10' long and two would be required per mullion.  This product is specific to Von Duprin products and will usually only work on Von Duprin Products.

The Von Duprin 8827 Bottom Latch Case 050461 is used on all Von Duprin 8827 non fire rated exits.  A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

The Von Duprin Strike 299F is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.  Ships with shim and mounting screws.

Von Duprin Part # 299F

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

Von Duprin Exit Device 994/996 Hex Stud

This is the Hex Stud used on the Von Duprin 994/996 Lever Trim. The threads are 1/4-20 on the male side. Overall lenght is 2"

Von Duprin Part # 971585

Von Duprin 050575 98/9947 Adjustable Bottom Rod

Von Duprin 050575 98/9947 Adjustable Bottom Rod.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050575
Old Part #112342

Von Duprin 360L Lever Trim

The Von Duprin 360L Lever Trim has a base measurement of 7-1/2" high by 1-11/16" wide and 7/8" thick. The lever is 4-1/2" and projects out 3". This lever Trim uses a 1-1/4" Mortise Straight Cam Cylinder.

Von Duprin Part # 360L

The Von Duprin 55 Arm Brushing 050333 takes up the slack between the lever arms and the housing.  It measures 13/16" outside diameter by 5/16" high.

Von Duprin 050333

The Von Duprin 6000 Series Solenoid Kit is used to replace burnt out solenoids on there 6000 series.  To order determine the voltage and whether you have fail safe or fail secure.

Part # 050237 12 VDC (Fail Safe & Fail Secure)
Part # 050239 16 VDC (Fail Safe & Fail Secure)
Part # 050240 24 VDC (Fail Safe & Fail Secure)
