8" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 7-3/8" to the Floor when mounted.

 Made by Grand Specialties 608z

12" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed rubber shoe can be adjusted down as the rubber shoe wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 11-3/8" to the Floor when mounted.

 Made by Grand Specialties in USA Part # 612z

5" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 4-3/8" to the Floor when mounted.

made by Grand Specialties 605z 605b

• Not load-bearing
• Available 3/4"(19mm) offset only
• Non-ferrous base material
• Used with 117, 117-1/4, 195, UNI closers,
127 closer
• Maintains door alignment
• Furnished with wood and machine screws

Handing diagram

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

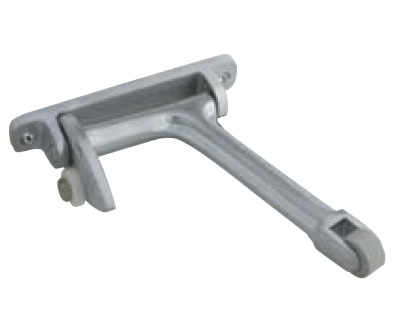

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

The Heavy Duty Cal Royal CRCODE101 is for use on the 7700 and 9800 Rim and Surface Vertical Rods. This lock features Single Code with up to 8000 code combinations, weather resistant, non handed, and code can be changed without removing the lock. Comes in Brushed Chrome finish only.

Installation and Programming Instructions

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

LCN 4820 Closer Arm

The LCN 4820 Auto-Equalizer Regular Arm comes with the Arm & Forearm, Rod & Shoe, and all the arm screws.

LCN Part # 4820-3077

LCN 4310ME-72MC Door Closer Cover

Replacement metal cover for the LCN 4310ME Door Closer

Manufacture Part #:  4310ME-72MC

LCN 4410ME-72MC Door Closer Cover

Replacement metal cover for the LCN 4410ME Door Closer

Manufacture Part #:  4410ME-72MC

The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

Jackson 2085 Panic Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.  This device is for 36" doors.

Yale 7000 Lever Trim

The Corbin Russwin Hold Open Arm Parallel Bracket is the standard bracket shipped with the Hold Open Arm.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket used by the hold open arm for parallel arm applications only.  Corbin Russwin part # 509F49.

LCN Sentronic Door Closer 4040SE-3436 On/Off Switch

The LCN 4040SE On/Off Switch measures 1" by 1/2" and the button projects up 1" from the base. This component is usually mounted by two way foam tape to isolate if for undesirable shock.

LCN Part # 4040SE-3436

The Detex ECL-230D-PH Alarmed Exit Device is a battery operated, rugged deadbolt panic device, and is UL-Listed Panic Hardware for 36" to 48" doors. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force, and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm. Rim Cylinder is not included.

The LCN Head and Tube 78H and 78HL comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8".  The head and tube usually breaks where the cast ring attaches to the tube.  This part usually goes by the part number 4040-78H, 4040-78HL, 4040XP-78H, 4040XP-78HL, 1260-78H, 1260-78HL, ect.,.

The LCN Sentronic Door Closer 4040SE-168 Slider used to be just the slider, the metal part.   In October of 2015 they changed the part so the roller is now included and they are held together by a snap ring or E-clip.

The slider is not longer sold separately, it is sold with the roller.  You have to take the Assembly apart to get just the slider.

• Standard top pivot for most offset pivot
sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Non Handed

The Falcon 712L Lever Trim is used for the XX-C, 18-C, and all 24 Series Falcon Devices.  The XX-C and 18-C are the obsolete concealed vertical rod Monarch Exit Devices. The Trim is non handed or field reversible. The Key locks or unlocks the Lever. The escutcheon measures 1-3/4" wide and 7-1/4" long.

The ESC6600 are non handed, with a Grade 1 thru bolted design. It features a clutch mechanism, double heavy duty spring support to prevent sagging and a hardened stell heavy duty spindle. Entrance function, key locks or unlocks lever, operates as a Classroom Function. Ships with mounting screws and a 6-Pin Schlage Mortise Cylinder.

The International 8600 Dogging Assembly is used on the 8510S, 8710S, 8610S, 8810S, 8501S, 8710S, and many more.

The Falcon Automatic Opener 8242 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon Automatic Opener 8231 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Detex ECL-230D Alarmed Exit Device is a battery operated, rugged deadbolt panic device. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm.  Rim Cylinder is not included.

If you have a door that requires Panic Hardware, then use the ECL-230D-PH

The Jackson Panic Device 1095 Active Housing is the working side of the 1095 panic hardware.  The housing comes will all the internal parts, including the latch bolt.  The distance between the mounting studs on this case is 6-5/16".  Jackson part # 30-988 Right Hand Body, and part # 30-989 Left Hand Body

Left Hand Housing shown in the aluminum finish.

The Norton 7700AS Arm Stud is for use on the 7700PT Power Track Closers.  The stud connects the arm to the slider (7700SLD) and is held in place by the Retaining Ring (7700ASR).   This piece is approximately 1" long.

The Corbin Russwin Regular Arm for 2800 is the standard arm shipped by them for the past 40 years.  This replacement regular arm will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  The arm is non handed and can be used for regular, parallel and top jamb mount.  Corbin Russwin part # 688F95.

The reinforcing pivot hinge is a good way to solve door sag issues. And also be a preventative solutions for future isses with extra heavy or wide doors. The hinges comes in two sizes 4 or 4.5 inches, and two finishes, prime coat and satin chrome. The hinge uses a heavy duty ball-bearing to add extra life.  The base metal is steel.

Von Duprin 373L 88 Lever Trim

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Jackson 2095 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom
