The Adams Rite 8600 Concealed Vertical Rod is designed for narrow stile aluminum framed glass doors.  The device will fit on stile widths of 2" or more.   We recommend this device for replacement only, modifying your existing door to this exit device will be labor intensive.  The 8611 would be for the aluminum finish and the 8622 would be or the dark bronze finish.  We try to keep the Aluminum and Dark Bronze in stock in the 36" and 48" devices.

This device is not Electrified, please call for the Electrified Model.

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

The Stainless Steel Engraved Push Plate is newer to our product line, but has been a very good seller.  This plate is constructed of 16 gauge (.050") thick stainless steel, and comes in two different sizes, the 3-1/2" x 15", and the 4" x 16".  The black engraved "PUSH" is 3/4" tall.  We can only get this is stainless steel at this time, and the mounting screws are included.

The Doromatic 2390 Anchor Block Assembly is used to connect the push bar to the device channel.

Discontinued December 2024

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

Dor-o-Matic 1690, 1790 and 2390 Dogging Spring

Doromatic part # 971493-76 or PB323

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

The Von Duprin 499F is used on the 22, 98 and 99 Series Fire Rated Rim Devices when used with the 9954 Mullion.  A Fire Rated Device is one that does not have a dogging pin or screw to lock the door in the open position.

Von Duprin Part # 499F

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

The LCN Door Closer 4021 is also known as the Smoothee.  The 4021 ships with regular arm, standard plastic cover, and self reaming and tapping screws.  The 4021 is considered an application specific closer.  Meaning you have to specify left and right swing door, and can only be mounted top jamb.  A top jamb mount is when the closer is mounted on the top rail of the door frame and the arms hangs down and attaches to the door.  Top Jamb door closers are also mounted on the pull side of the door.  The Non sized cylinder will work on just about any size interior or exterior door and meets ADA requirements.  We ship the 4021 REG.

The Von Duprin Panic Device 230TP Trim is for use on the 22 and 2227 series only.  The key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 12-1/16" with a plate thickness of 3/32".

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

The Detex D Lever Trim is used on the 10, 20, 21 and 27 Series exit devices. The D Lever is designed to be as heavy duty as their exit devices. It features a break-away lever to prevent damage. The escutcheon measures 2-3/4 x 9-1/16 inches, with a plate thickness of 7/8 inch. We ship the classroom function, which locks and unlocks the lever.

The Von Duprin Dogging Adapter Spring 090042 is the clip that holds the dogging shaft in the assembly.  We sell these individually, and it is the #2 item on the diagram.

The Von Duprin Panic Device 880DT Trim is for 88 Series devices only.  Stanchions welded on the back line up with the device on the interior. The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

The Detex HDK 100450 Dogging Hex Key has a 5/32" hex with a 2-1/4" shaft length.   The overall length is 3-1/8".

The LCN Door Closer 4111 is known as the Smoothee, and is one of the heaviest duty door closers made. If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 EDA model, which is a non hold open arm, on this page. The cylinder mounting holes are 2-1/2" by 6".

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

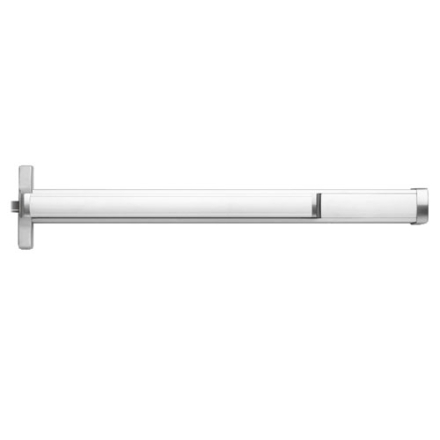

Jackson 2085 Panic Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.  This device is for 36" doors.

Monarch 19 Series Chassis Assembly Cover

This is the cover for the Monarch Falcon 19-R Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8". We sometimes find the number 6133 - 000 cast into the inside of the cover.

Monarch/Falcon part # 650384
Old Part # 6133

This Von Duprin Panic Device 7500 Mortise Body Only is used on the Von Durprin 8875, and Von Duprin 98-9975 panic hardware. The body measures 5-7/8" high by 4-1/2" deep and 1" thick. This is the body that has been used since about 1977.

Call or email for pricing on the SS7500, 7500-IN, and E7500 Mortise Bodies and replacement parts for the Lock.

We ship the 7500 in US32D, brushed stainless steel.

International 58L Escutcheon Trim for the 5000 Series Devices

Non-handed, easily install with exit device Escutcheon plate measures 8-1/16" tall by 2-5/8" wide by 29/32" thick. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle-Most Popular
Passage - no cylinder hole, lever always active
Night Latch (Storeroom) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Norton 7701-11 Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" and 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

The Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

The Cal-Royal 4500 Series Lever Trim is for use on the 45-RIM and 45-SVR Exit Devices. The Lever Trim is non handed and ships with a 6-pin C Keyway Cylinder. The function is Classroom, which means the key will lock or unlock the lever. The lever also incorporates a clutch function so the mechanism will not break when excessive force is applied to the lever.

Jackson 2095 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

Cal Royal Thumb Pc Trim

Works with the 7700 Series

2-5/8" X 15"

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The LCN Door Closer 1261 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with Tri mounting capability. The 1261 is the door closer I would recommend if you are tired of replacing your store front door closers because of leakage.  The 1261 is the most heavy duty standard template closer that is made.  This door closer will work on the push, pull or top jamb, and is non handed.  The 1261 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1261 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer.  The hole spacing is 3/4" x 9-1/16", so it is considered a standard template closer.  LCN also offers a 20 year warranty on this closer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

The Von Duprin Panic Device 880K Trim is for use with the 88 series devices only.  Plate measures 3" wide by 14-3/16" long with an 1-5/8" diameter bore for cylinder. Knob projects out 2-3/4".  We do not sell many of these anymore, due to ADA requirements, but they are still available.

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143

Cal-Royal 9000 Series Lever Trim HDESC is for use on the 9800 and 9800 Exit Devices. The Trim has a clutch mechanism to prevent breaking and two heavy duty springs to prevent sagging. Escutcheon measures 2-5/8 inches wide by 10-5/8 inches long.  The lever projects out 2-7/8 inches. Key locks or unlocks lever.
