The Von Duprin 100316 is used on the 5547 on the top of the door.   The top rod goes through the square hole on the plate.  The plate shown in the Picture has both sides or LHR and RHR doors.  One side of the strike is usually broken off depending on the hand of the door.

The LCN Door Closer 4031 is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors. Closer meets ADA requirements.  The hole spacing on this closer will not match the 4030's that LCN produced up to 1997, that was a completely different door closer.

We ship the 4031 Rw/PA

The WS11 door stop used to be under the Glynn-Johnson product line as the WB11 until they merged with H.B. Ives.  At that point they became the WS11.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11x, except that it is designed for wood or drywall mounting and ships with wood screws and anchors.

The Ives WS401CCV Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

The LCN Door Closer Cover is the standard plastic cover that ships with LCN Door Closers.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape cover on the door closer cylinder.  The part number is the Series Number followed by -72.   So, the part number would be 1460-72, 4010-72, 4020-742, 4030-72, 4040-72 and 4110-72.   We have access to all the covers, if yours is not here call us and we will quote you a price.

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.

The Von Duprin 990K Trim is known as a Knob Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The key locks and unlocks the knob.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990K-R&V.

The Von Duprin 8827 Top Latch Case 050460 is for non fire rated doors. A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  This is the part that may be causing your bottom latch to drag on the floor. The Top Latch does all the work on the Von Duprin 8827. When the Top Latch is retracted, it holds the rods in the retracted position.

Von Duprin part # 050460
Old Part # 101750

Von Duprin NL Drive Screw 090074

The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.

Von Duprin Part # 090074
Old Von Duprin Part # 970441

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

The LCN Door Closer 1461 series closer ships with regular arm, a slim line plastic cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.  The narrow foot print allows this door closer to be mounted on the top jamb and narrow stile doors without a drop plate.

We ship the 1461 Rw/PA

The Norton Door Closer Regular Arm is the standard arm that is shipped with the 9300, 1600, 8301, 8501 and 7500 door closers.  It will also work with the Yale 2300, 50, 3301, 3501 and 4400 series door closers.  This arm has had a bunch of different factory numbers over the years, including 1620-1, 7701-1 and 400-1.

Doromatic Exit Device 1590 Pushbar End Cap PB202

Cover the end of the 1590 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106875 or PB202

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The LCN Door Closer 62PA Parallel Arm Shoe is constructed of steel and then powder coated to your color.  This is the shoe that LCN used on there universal door closers for the parallel arm mounted door closers. This is the bracket that is shipped with the Rw/PA and Hw/PA arms.  A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The Door Push Plate 60 has the classic half round design.  The plate measure 8" wide and 16" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH59 (Push Plate 59), but is a 1/2" wider and 1" taller.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Schlage Mortise Spindle and Spring

The spindle measures 2" long by 5/16".

Schlage Part # L283-060

The LCN Door Closer 4041XP-CUSH is the same cylinder as the 4040XP, but with a CUSH arm (4040XP-3077CNS).  This closer can only be mounted in the parallel arm configuration.  With this closer you get the XP heavy duty cylinder with the heavy duty CUSH arm.

We ship the 4041XP-CUSH

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

The LCN Door Closer Cush-n-Stop Arm 3077CNS is a Non-handed parallel arm that features solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077CNS, 1460-3077CNS, 4040-3077CNS, 4110-3077CNS.

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

Monarch Trim Spring 4841

2-1/2" long x 3/16" diameter

Monarch part # 4841

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

The LCN Door Closer 4011FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

We ship the 4011 FL

The Ives Wall Door Stop / Holder WS445 has been a staple of the Ives product line for at least the last 45 years, and is the same product as the WS443 except it has a holder function.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11-16" projection from the wall.  This product ships with an expansion shield and lead shield.  This holder is considered a manually holder due to the fact you have to bend over and latch and unlatch it.

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The LCN Sentronic Overhead Concealed Door Closer 3130SE is shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

The International Door Closer Arm 3010-PT is for end loading top arm assembly (7/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

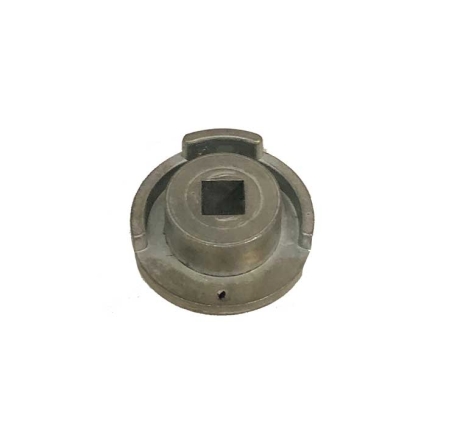

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.
