The Dor-O-Matic 1690/1790/1990/2090 Pinion PB5 has been in use since the 1970's.  This gear or pinion is what activates the latch or the rods on the 990, 1090, 1690, 1790, 1990 and 2090 devices.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are the same device, with the same parts, just a different name plate.  The manufacture part number on this is CAM.102, PB5 or PB140.

1690 parts breakdown

1790 parts breakdown

1990 parts breakdown

2090 parts breakdown

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices.  The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color.  This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.

The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction.  This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Doromatic Exit Device 1790 Parts Breakdown

Falcon / Dor-o-Matic EL1790 Panic Device

The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp, 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16

Falcon Doromatic 1690, 1790, and 2390 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door for the inside or with a key on the outside.  The KIT.1197 comes complete with mounting screws.   Some of the earlier version where riveted into the rail, so you might need to drill out the rivets, the screws shipped with KIT.1197 have self tapping thread forming screws.

Doromatic part # KIT.1197

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This Lever Trim is now reversible.   To change the hand all you have to do is remove the shear pin, rotate the handle and reinsert the shear pin.

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

Adams Rite 8800 Panic Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

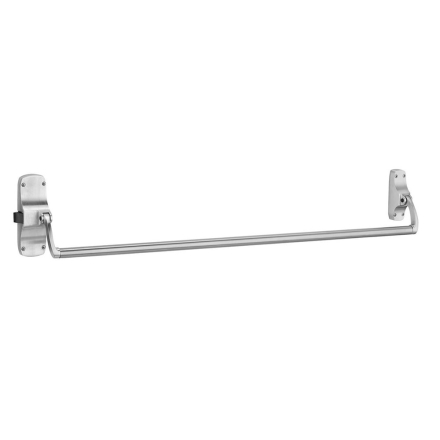

The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map.  It is designed for all types of single and double doors with mullions.  It is field reversible, and ships with a 42" cross bar that can be cut down in the field.  The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.

Sargent Panic 97-0008 End Plug

Sargent 97-0008 End Plug and 01-001 End Plug Screw.  Fits the 90 series cross bar panic devices.

Dor-o-Matic 1790 Channel Spacer. This part is used on Dor-o-Matic 1790's with an outside key cylinder.

Doromatic part # SPACER.107 or PB326

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

Jackson Panic Device 1295 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2677
New Jackson Part # 30-2654

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

Dor-o-Matic 1690, 1790 and 2390 Dogging Spring

Doromatic part # 971493-76 or PB323

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

The Von Duprin 22 Panic Only 22EO is part of the economy series.   Even though is it the least expensive Von Duprin, it is still a very heavy duty panic device.  It is for all types of single and double doors with mullion, for door stiles as narrow as 3-13/16”.   All 22 Series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, Grade 1.  The Von Duprin 22 ships with the 299 standard strike, dog key, and all of the needed mounting fasteners.  Even though it is the least expensive, they offer all the replacement parts, just like there other models.  We stock all of the replacement parts Von Duprin has to offer on the 22 and 2227 series.
We keep the 36” devices in stock in the SP28 Sprayed Aluminum and SP313 Sprayed Dark Brown in stock.
Von Duprin Part # 22EO
