Door Hardware

The Door Pull Handle 10 has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel.  The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection.  This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle.  This handle is available in 8", 10", 12" and 18" centers on the mounting holes.  If you have a 9" centered handle use the PH-4000.   It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.1" diameter material

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

The Door Push Plate 50 is the most common push plate we find out in industry today.  It does not matter what type of commercial building you go into, you will find this style and thickness plate.  The are offered in standard sizes, that are shown below, and can be made to custom sizes.  The plates are 16 gauge metal (.050 thick) and are shipped with 4 beveled edges.   The matching finiish screws are shipped with each plate.

Finishes

3 x 12" GPH312
3.5 x 15" GPH315
4 x 16" GPH416
6 x 16" GPH616
4 x 20" GPH420
8 x 16" GPH816

The Ives 112HD Continuous Full Mortise Hinge Geared Hinge measures 83" long and is constructed of extruded aluminum.  This hinge is non handed, and will work on doors up to 48" wide and 450 pounds.  You can easily cut this hinge in the field if your door is less than 83" high.

The Ives 157XY Continuous Full Surface Geared Hinge is an ideal solution for the replacement or worn or broken storefront door pivots, which we run across quite often. I our opinion this is the best solution if you can not find a compatable replacement pivot. The geared hinge will not allow the door to twist, which makes your door more sturdy in the frame. This hinge measures 83" long and is 3-7/16" wide included the cover which hides the screw mounting. A patented easy to install, heavy duty hinge which offers lateral and vertical adjustablility whle the door is still hanging. The hinge is non handed, will mount on a narrow frame, can be cut down in the field and will work on doors up to 550 pounds. 12-24 x 1/2" steel self drilling and tapping screws are included.

The TH1100-HK1 is the perfect solution for existing hinges that have failed, and is a quick and easy fix for compromised door openings.  Deluxe Hinge Kit TH1100-HK1 comes in a package of two hinges, 2 1/4" shims, and 12 one-way mounting screws.   The hinges are non handed, will work on Flush, and 1/8" offset door applications, have a self lubricating pin that rotates on anti-friction bearings, and have a vertical adjustment screw.   They are constructed of an aluminum alloy.

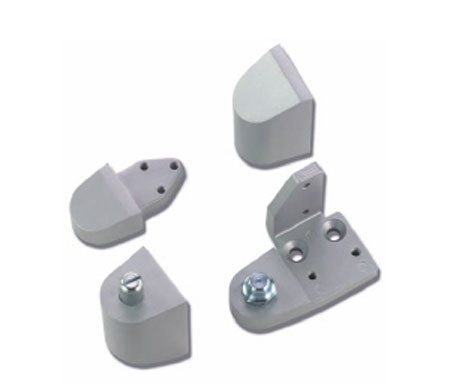

Non-Handed Offset Storefront Pivot Hinge Set, includes top and bottom pivots and all the fasteners.

Universal Intermediate Storefront Door Pivot.  Comes with all the screws need to install right out of the box.

The EPT-10 Von Duprin Power Transfer is a 10 wire, 24 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-10

The EPT-2 Von Duprin Power Transfer is a 2 wire, 18 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-2

Intermediate Hinge IP-1901 and IP-1902

Cast aluminum construction with steel bearings. The hinge measures 5" high by 2-1/2" wide. This hinge has a 3/4" offset. We find this hinge in the middle section of the door between the top and bottom hinges. Available in the Aluminum color and Dark Brown. See the dimensional information under more views.

Manufacture Part # IP-1901 and IP-1902
IP-1901 is for Left Hand Doors
IP-1902 is for Right Hand Doors

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

TH1110 Arch/Vista Wall Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1114U US Alum Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1116 Aldora Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Kawneer Style Intermediate TH1121 Hinge

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.



The TH1300 YKK Offset Pivot Hinge Set is found on YKK Aluminum Framed Storefront Doors.

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram
