Stops / Holders
Stops and holders are essential door parts needed within a school, business, or any large building. RBA Door is a leading commercial hardware provider that will help equip you with stops and holders. We carry a variety of options to best suit the way you want your door stops to function and appear. We have successfully worked with customers since 1970, and we pride ourselves in providing the best service and selections in the industry. Our knowledgeable sales representatives are waiting to speak with you about starting your order for stop and holders, so call us today.
-
Plunger Type Door Holder / Stop 583
The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish. It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection. The throw is 1-1/4". These are sometimes called pop-up or push down stops. This piece will ship with matching finish mounting screws.
GJ583- -
Ives FB458 Metal Door Flush Bolt
Ives FB458 Metal Door Flush Bolt
The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"
Ives Part # FB458
FB458- -
Magnetic Door Stop/Holder
Magnet Door Stop
Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.
Not for use on doors with spring hinges or door closers.
GDS100 -
SEM7850 LCN Electro Magnetic Door Holder
The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color. Armature extensions are available, along with replacement covers, magnets, and armatures. Outlet box not included
LCN Part # SEM7850
SEM7850- -
SEM7840 LCN Electro Magnetic Door Holder
The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color. Armature extensions are available, along with replacement covers, magnets, and armatures. Outlet box not included
LCN Part # SEM7840
SEM7840- -
SEM7830 LCN Electro Magnetic Door Holder
The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color. Armature extensions are available, along with replacement covers, magnets, and armatures.
LCN Part # SEM7830
SEM7830- -
SEM7820 LCN Electro Magnetic Door Holder
The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color. Armature extensions are available, along with replacement covers, magnets, and armatures.
LCN Part # SEM7820
SEM7820- -
SEM-7800-825 Armature for LCN Electro Magnetic Door Holder
The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series. It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color. LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825
SEM7820-825- -
SEM7850-828 Armature for LCN Electro Magnetic Door Holder
SEM7850-828 Armature for LCN Electro Magnetic Door Holder features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 2-5/8". Available in an aluminum or dark bronze color. Armature extensions are available, along with replacement covers, magnets, and armatures.
LCN Part # SEM7850-828
SEM7850-828- -
Kickdown Door Holder Rubber Shoe For GJ1154M and GJL444-555
Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder
Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screwGJ1154 -
Floor Door Stop Dome 1-3/8" FS438
Floor Door Stop Dome 1-3/8" FS438
We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years. Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be. This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8". The are constructed of cast aluminum or cast bronze depending on the finish you are looking for. The rubber stop is non-marring and replaceable. The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".
GJFB14- -
Floor Door Stop Heavy Duty 540
Floor Door Stop Heavy Duty 540
This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high. Uses a 3/4" diameter hole for the lag sheild.
RB540 -
Floor Door Stop FS444
Floor Door Stop FS444
This door stop has been around a long time. We have been selling it for the past 35 years, and it is one of our best sellers year in and year out.
Features: Ideal for interior or exterior use. Cast brass construction. Accommodates door undercut up to 2-1/2". Non-marring rubber tip. Packed with expansion shield and lead shield. This Floor Mounted Door Stop is 3" high, and the base has a 2-1/2" diameter.
RB444HD- -
Floor Door Stop FS442
Floor Door Stop FS442
This Floor Mounted Door Stop used to go by the name Glynn Johnson GJFB19 or FB19. When Ingersoll Rand purchased H. B. Ives in the 1990's they brought it over under the Ives Floor Mounted Door Stop FS442. Features: Designed to blend well with all types of construction and provide a minimum of hindrance to cleaning efforts. Accommodates door undercut up to 2". Heavy-Duty cast brass or aluminum construction. Non-marring rubber bumper. This door stop has an overall height 2-7/8". Mounted shield and screws included.
GJFB19- -
Floor Door Stop FS434
The Floor Door Stop FS434 is another one the old Ives parts that has been around for about 40 plus years. The FS434 is constructed of burnished wrought steel, with a soft, resilient gray rubber shoe. The shoe is replaceable and is under related products. The stop measures 2-5/8" overall height, and the base measures 1-1/2" wide by 2-3/4" long. This door stop ships with all the fasteners and anchors needed.
GJ434 -

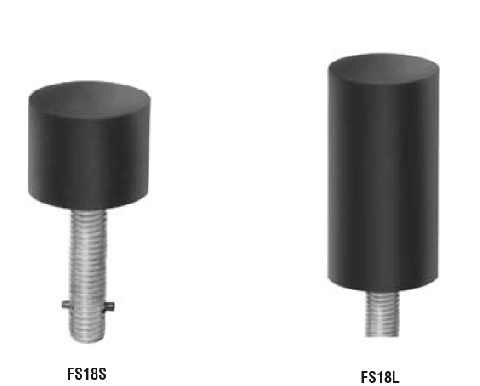

Floor Door Stop-Security FS18
Floor Door Stop-Security FS18 is designed for areas of high vandalism. The molded rubber is flame resistant and mounted to a 5/8" threaded mounting shaft. Once the 7/8" diameter hole is drilled to a depth of 2-1/2" it can be grouted in concrete and leaves no exposed fasteners. The recommended grout is Thorogrip. They are ideal for jail or security cell areas. There are two versions of this door stop one projects 1-1/2" (FS18S) out of the floor and the other 3" (FS18L).
GFS18- -
Floor Door Stop / Holder
The F20 or GJF20 was a mainstay of Glynn-Johnson for years. When the Glynn-Johnson door stop line merged with H.B. Ives it became the FS20. This door stop has been discontinued from Ives, but we have been able find a large stock. This Floor Mounted Door Stop also holds the door open, when in the latched position you can push the door and the holding latch will flip up and unlock thee holding clip. It is constructed of cast bronze or brass and then plated to your desired finish. This stop has a 2-1/2" long base that is 1-1/2" wide. The overall height is 3-1/8" with a 2-5/16" floor to rubber stop centerline. For use with door undercut up to 2-1/2".
GJF20- -
Floor Door Stop 524
Floor Door Stop 524
The 524 Door Stop is one of the more interesting door stops we have. They are constructed of cast brass that is then plated to your finish. It measures 1-1/4" in diameter and is 1-1/2" tall. One of the benefits of this door stop is there are no exposed screws. The 524 ships with a 12-24 x 1" machine screw, a plastic anchor and a lead anchor.
GJ524- -
Floor Door Stop / Holder Heavy Duty 541
Floor Door Stop / Holder Heavy Duty 541
This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 3" high. Uses a 3/4" diameter hole for the lag sheild.
RB541 -
Floor Door Stop / Holder FS43
Floor Door Stop / Holder FS43
This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF43A or F43A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS43. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.
Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" HighGJF43A- -
Floor Door Stop / Holder FS42
Floor Door Stop / Holder FS42
This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF42A or F42A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS42. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.
Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" HighGJF42A- -
Floor Door Stop / Holder FS41
Floor Door Stop / Holder FS41
This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF41A or F41A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS41. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.
Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" HighGJF41A- -
Floor Door Stop / Holder FS40
Floor Door Stop / Holder FS40
This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.
Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" HighGJF40A- -
Floor Door Stop / Holder 536
Floor Door Stop / Holder 536
The Stop and Holder 536 is considered a manual door holder. It is a manual door holder because you have to physically bend over and hook and unhook the holder. This holder is constructed cast brass or cast bronze and then plated to your desired finish. The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop. It ships with all of the fasteners.
GJ536- -
Floor Door Stop / Holder FS446
Floor Door Stop / Holder FS446
The Ives FS446 Door Stop and Holder is a modification of the FS444, which is the non holder version. It is considered a manual type floor holder, because you have to manually latch the holder for it to hold the door open. It is constructed of cast bronze or brass, and is no longer available in a cast aluminum. It is designed for doors with up to 2-1/2" of undercut, meaning the distance between the finished floor and the bottom of the door. It measures 3-3/4" overall height with a 2-1/2" diameter, and the distance from the base to the center line of the rubber non-marring stop is 2-1/2". This stop is packed with expansion shield and lead shield.
GJF26- -
Floor Door Stop Dome 1-5/8" Height 521
Dome Door Stop 1-5/8" Height 521
The 521 is a larger version of the other dome stops we offer. It offers forged brass construction with a gray rubber bumper. The base measures 1-3/4" diameter x 1-5/8" High, with a 1/4" thickness. That this point only US26D-Brushed Satin Chrome is available. It ships with wood screws and machine screws and floor anchors.
GJ521 -
Floor Door Stop Dome 1-1/4" Height 523
Floor Door Stop Dome 1-1/4" Height 523
This contemporary looking Dome Stop has been a hot selling in the last few years. The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish. At this time, only brushed or satin chrome is available. The base is 1-11/16" wide by 4" long and 1-1/4" tall. The base is 1/2" thick. This door stop ships with wood and machine screws and all of the anchors.
GJ523 -
Floor Door Stop Dome 1" Height FS436
Floor Dome Door Stop 1" Height FS436
We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years. Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be. This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8". The are constructed of cast aluminum or cast bronze depending on the finish you are looking for. The rubber stop is non-marring and replaceable. The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".
GJFB13- -
Floor Door Stop Dome 1" Height 522
Floor Door Stop Dome 1" Height 522
This contemporary looking Dome Stop has been a hot selling in the last few years. The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish. At this time, only brushed or satin chrome is available. The base is 1-11/16" wide by 4" long and 1" tall. The base is 5/16" thick. This door stop ships with wood and machine screws and all of the anchors.
GJ522
