Dor-o-Matic 1690 Lift Bracket. This is the bracket the Concealed Vertical Rods Connect to.

Doromatic part # BRKT.138 or PB127

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1990 Complete Repair Kit-PB20

Kit includes 25 different parts to keep your 990/1990 working smoothly

Dor-o-Matic part # 4270100583

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.

Doromatic part # BUSH.109 or PB3

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic Exit Device 1790 Parts Breakdown

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

The Dor-o-Matic 1990/2090 "E" Ring RRing.109 is use to connect the concealed rods to the Traveller Assembly (G199028, PB88, or 4270100013).  The rods fit through the traveller and rod bushings, and the Retaining Ring holds them in place.  This piece has a diameter of 1/2".   This item is now under the Falcon name plate.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

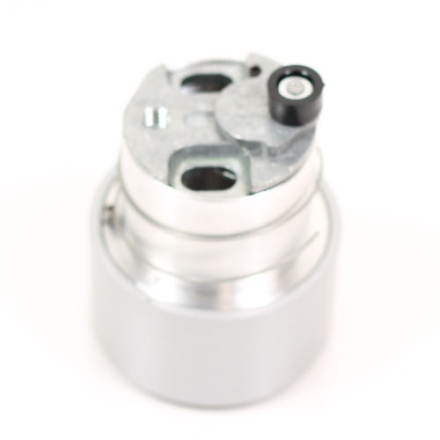

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall lenght.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

Dor-o-Matic 1590 NL Cam Assembly

Doromatic part # 4270107283

No longer Manufactured

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

NO LONGER AVAILABLE

Dor-o-Matic 1490 NL Cam Assembly

Doromatic Part # 4270107268

Parts Break Down

Dor-o-Matic 1790 Drive Bushing, needed to use the optional key cylinder.

Doromatic part # CAMASY.101 or PB319

Dor-o-Matic 1690 Falcon Center Case Cover Kit

Color: Black

Doromatic part # COVER.113 or PB313

The Falcon SC71 Door Closer used to go by the Doromatic SC71. This is a higher quality door closer at a more affordable price. This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension. It has the ability to be mounted on the push, pull or top jamb and is non handed. This closer is considered a Grade 1 closer, which is the highest grade you can get. The hole spacing is 2-3/8” x 6-3/4”, which is the same hole spacing as the Norton 7500 and Yale 4400 door closers. We ship the SC71 Rw/PA

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

Dor-o-matic 2090 Retractor. This piece retracts the latchbolt when the key is turned. The retractor measures 7/8" diameter by 5/16" gear height. Flange projects up 5/8".

Doromatic part # RETRACT.102

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

The Dor-o-Matic 2090 Backplate Assembly PB89 has been around since the early 1970's.  It is now called the Falcon 2090 Back Plate Sub Assembly, but it is the same thing, just different owners of the company.  This piece includes the plate casting, latch bolt, pinion gear, and retractor.

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

LEFT HAND BACKPLATE SHOWN

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

Dor-o-matic 990/1090/1990/2090 Lever Arm Pivot Pin measures 1-1/32" long by 9/32" diameter.

Doromatic Part # PIN.115

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Doromatic Exit Device 1490 Pushbar End Cap PB201

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106787 or PB201
