The Von Duprin 050190 Bottom Fitting is for the 5654 / 5754 Mullions.  The package includes the bottom fitting and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-7/8"

Von Duprin part # 050190

Von Duprin 050519 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519

The Von Duprin Strike 1409 Blade Stop is used on just about every Von Duprin Rim Device when door frame protection is needed.  We see this strike on many Narrow Stile door setups.  The strike measures 1-7/8" by 1-3/4" outside dimension. The strike has a projection of 1/2".  The strike is constructed die cast metal and the blade is made of stainless steel.

Von Duprin Part # 1409

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

The Von Duprin Strike 1609 strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.   This Strike is not rated for Fire Doors, which are usually interior corridor doors.

Von Duprin Part # US19-Black finish

The Von Duprin 050135 Top Fitting and Cover is for use on there 5654 / 5754 Mullions.  Package includes the Top Fitting and Cover, and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8"

Von Duprin Part # 050135

The Von Duprin 050130 Fitting Set is for the 5654 / 5754 Mullions.  Set includes top and bottom fittings, all of the mounting screws.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8".

Von Duprin Part # 050130

The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.

Von Duprin Part # 968601

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 8827 Latch Covers 050464 is used on the top and bottom latches of the 8827 Panic Hardware, and the bottom latch of the 8827-F Fire Rated Hardware.  Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548

Von Duprin 8827 Bottom Rod Connector.

Connects bottom rod to the bottom latch. The Bottom Rod Connector is included with the Von Durpin Bottom Rod.

Von Duprin Part # 050327
Old Part #960578

Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

The Von Duprin 6000 Series Solenoid Kit is used to replace burnt out solenoids on there 6000 series.  To order determine the voltage and whether you have fail safe or fail secure.

Part # 050237 12 VDC (Fail Safe & Fail Secure)
Part # 050239 16 VDC (Fail Safe & Fail Secure)
Part # 050240 24 VDC (Fail Safe & Fail Secure)

The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

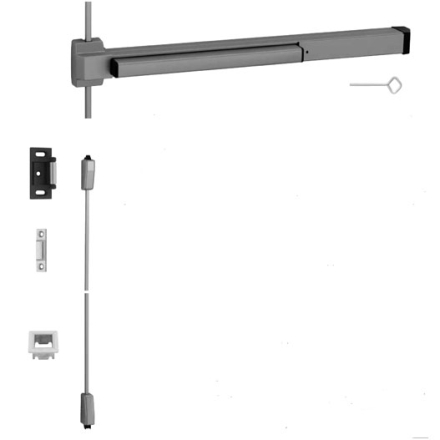

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

Von Duprin 8827 Chassis Tie Rod Pkg 050328

The 8827 Chassis Tie Rod Package is the rod that goes through the top and bottom latches. The Tie Rod is held in place by the Special Chassis Nut. The Tie Rod measures 1-3/8" long by 3/16" diameter.

Von Duprin Part # 050328
Old Von Duprin Part # 967616

The Von Duprin 1654-4954 Mullion Brackets 050330 are the top and bottom mullion fittings for the 1654 and 4954 Mullions. . Includes Top and Bottom Fittings, screws and mounting shields.

Von Duprin part # 050330

Von Duprin 8827-F Special Hex Stud Kit

The Von Duprin Special Hex Stud mounts on the upper and lower latches.  The cover attaches to the Hex Stud, it is like a spacer.

Von Duprin Part # 050478
Old Part # 961218

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759

Von Duprin 050484 33/3527A Center Case Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050484

Von Duprin 050073 98/9947 98/9949 98/9975 Case Cover

Cover for the Von Duprin 050022, 050029 and 050030 Center Chassis Assemblies.  Cover includes mounting bracket and screws.

Von Duprin Part # 050073

Von Duprin 050575 98/9947 Adjustable Bottom Rod

Von Duprin 050575 98/9947 Adjustable Bottom Rod.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050575
Old Part #112342

The Von Duprin 88 Lever Arm Left Hand 050439 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

The Von Duprin Exit Device 2227 Center Case 109358 replaces worn out Von Duprin 2227 Surface Vertical Rod Center Cases.  The center case has been the same for the last 30 years.

Von Duprin Part # CASE.107
Old Von Duprin Part # 109358

The Von Duprin 3348/9948 Bottom Latch Kit 050495 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces previous versions of the 33/3548 and 98/9948 bottom latches.

Von Duprin Part # 050495
Von Duprin Old Part # 112907

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L
