The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Von Duprin 050485 33/3547A/49A Center Case Cover

Replacement Von Duprin 33/3547A/49A Concealed Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050485

Von Duprin 8827 Rod Guide Assembly

Securely holds rod in place and protects rod from bending.

Von Duprin Part # 050482
Old Part # 101648

The Von Duprin 2227 Latch Covers 050566 is used on the top and bottom latches.  Package includes mounting screws

Von Duprin part # 050566

Von Duprin 050405 33/3547A Center Case

Replacement Von Duprin 33/3547A Concealed Vertical Rod Device Center Case.

Von Duprin Part # 050405

Von Duprin 9927 Latch Covers.

This cover is used on the 2227, 3327A, 3427A, 9827 and 9927 Exit Devices. Replace old bent and worn covers with brand new ones.

Includes mounting screws

Von Duprin Part # 050566

Other finishes are available

Von Duprin 050403 33/35A Rim Center Case

Replacement Von Duprin 33/35A Rim Device Center Case.

Von Duprin Part # 050403

The Von Duprin 050036 5547 Bottom Rod Kit is for use with the 5547 Concealed Vertical Rod panic hardware.

Von Duprin Part #050036
Old Von Duprin Part #102551

The Von Duprin 99 Rim Center Case Cover 050071 replaces your old 1 or 3 piece covers.  Included in the package is the cover and the mounting screws.

Von Duprin part # 050071

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Von Duprin 050483 33/35A Rim Center Case Cover

Replacement Von Duprin 33/35A Rim Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050483

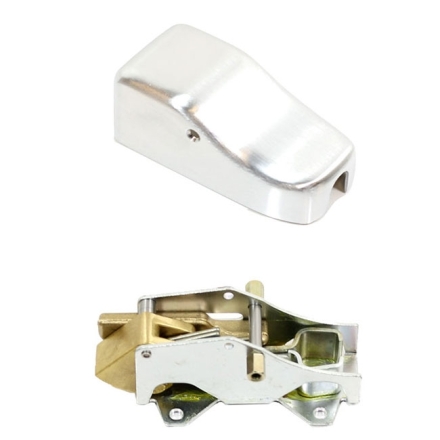

The Von Duprin 8827 050467 Bottom Latch And Cover is the 050461 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050467

The Von Duprin Panic Device 880TP Trim is for the 88 series only.  The stanchions welded on the back line up with the 88 device on the interior.  The optional key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 14-3/16" long with an 1-5/8" bore hole for cylinder.

Von Duprin part # 880TP-R

The Von Duprin 8827 Latch Covers 050464 is used on the top and bottom latches of the 8827 Panic Hardware, and the bottom latch of the 8827-F Fire Rated Hardware.  Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

The Von Duprin 050335 1654/4954 Top Mullion Fitting and Cover are the replacement top fittings for the 1654 and 4954 removable mullions.

The Von Duprin Panic Device 880K Trim is for use with the 88 series devices only.  Plate measures 3" wide by 14-3/16" long with an 1-5/8" diameter bore for cylinder. Knob projects out 2-3/4".  We do not sell many of these anymore, due to ADA requirements, but they are still available.

Von Duprin 22 Control Link Pin

The control link pin is the connector pin, that connects the latch head assembly to the push bar assembly. When the push bar is pushed in it retracts the latch bolt and the pin connects the two pieces. This Control Link Pin is used on the Von Duprin 22, 33A, 98 and 99 Panic Devices.

VON DUPRIN PART # 050529
Old Von Duprin Part # 969520

The Von Duprin Panic Device 880DT Trim is for 88 Series devices only.  Stanchions welded on the back line up with the device on the interior. The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

The Von Duprin Strike 264 measures 2-7/8" tall by 1-1/4" wide with a roller projection of 9/16". Used on the Von Duprin 22, 88, 98 and 99 when a lower profile strike is need in place of the Von Duprin 299 Strike. The hole spacing is 2-1/8" on center, and it ships with mounting screws and a shim. Also known as a Von Duprin Surface Roller Strike.

Von Duprin Part # 264

Von Duprin Exit Device Lever Trim Shear Pin Kit

This is the component that is designed to break, if the lever handle is forced to open , this pin snaps so your trim is not destroyed. 3/16" diameter shaft by 5/8" overall length. Retaining Ring included. This shear pin is used on the 230L, 360L, 992L, 994L and 996L Von Duprin Lever Trims.

Von Duprin Part # 050611 Old Part # 971583

The Von Duprin 9927 Bottom Vertical Rod 110574 is the replacement rod for broken or bent vertical rods.  All of the 9927 bottom rods are the same length, this is set by Federal Building Codes, so the center line of the Panic Hardware is a certain height from the finished floor. The length of the rod is 31-1/4" long, less the fittings.  The old part number on this was 110574, and the newer one is 050514.

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

Von Duprin 050484 33/3527A Center Case Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050484

Von Duprin 050404 33/3527A Center Case

Replacement Von Duprin 33/3527A Surface Vertical Rod Device Center Case.

Von Duprin Part # 050404

The Von Duprin 1654-4954 Mullion Brackets 050330 are the top and bottom mullion fittings for the 1654 and 4954 Mullions. . Includes Top and Bottom Fittings, screws and mounting shields.

Von Duprin part # 050330

Von Duprin 33/35/98/99 push bar stock absorbers. This is the piece that makes these Von Duprin exit devices one of the quietest devices made.

Von Duprin Part # 050491

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

Von Duprin 98/9947-F 98/9949-F Center Case

Replacement Center Case for the 9847/9947 and 9849/9949 Exit Devices

Von Duprin Part # 050022

Von Duprin 373L 88 Lever Trim

Von Duprin 050520 33/3547A/48A Bottom Rod

Replacement Von Duprin 050520 33/3547A/48A Bottom Rod.

Von Duprin Part # 050520

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960
