The Von Duprin 9927 Center Case 050021 center case replaces all earlier versions of the 9827 and 9927 Center Cases. Everything shown in the picture is included with the product. Along with all the mounting screws.
The Von Duprin Dogging Adapter Spring 090042 is the clip that holds the dogging shaft in the assembly. We sell these individually, and it is the #2 item on the diagram.
The Von Duprin 050580 Weather Stripping is for there 5654 and 5754 Mullions. Each strip is 10' long and two would be required per mullion. This product is specific to Von Duprin products and will usually only work on Von Duprin Products.
The Von Duprin 900894 230L Tailpiece Auxiliary includes the Tailpiece (steel), Tailpiece Guide (nylon), and the Pine Tree Clip (nylon). The Tailpiece measures about 2-1/2" x 1/4" x 3/32" thick.
The Von Duprin 970321 299 Strike Shim is for use with the Von Duprin 299 and Falcon FA299 strikes. The plate measures 2-7/8 x 1-1/4" x 1-16" thick. The product is sold individually.
The Von Dupin 1439 Strike measures 1-7/8 horizontal x 1-3/4 inches vertically. The strike has a projection of 1/2 inch. We find this strike used on the 33A and 35A exit devices.
The Von Duprin 499F is used on the 22, 98 and 99 Series Fire Rated Rim Devices when used with the 9954 Mullion. A Fire Rated Device is one that does not have a dogging pin or screw to lock the door in the open position.
Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw. I would recommend the D100, Panic Bar Retainer, for dogging down your device.
The Von Duprin 900620 35/3348 98/9947 Adjusting Screw Package is used to adjust the concealed vertical rods. This package is used on the 3347, 3547, 3347-F, 3547-F, 9847, 9847-F, 9947 and 9947-F. This is a package of 2.
The Von Duprin 338 Strike measures 1-5/8" by 1-7/8" with a 5/8" projection. The screw mounting is 1-7/8". This strike is used as a bottom strike on the Von Duprin surface and standard equipment there concealed vertical rod devices 3347, 3547, 5547 8847, 9847 and 9947.
The Von Duprin 55 Hinge Case Spring 090052 is the spring in the inactive case. This spring does all of the lifting of the cross bar, and is used on the 55 Rim, 5547 Concealed Vertical Rod and 5575 Mortise Device. It measures 1-5/8" long by 5/8" diameter.
The Von Duprin Panic Device 230TP Trim is for use on the 22 and 2227 series only. The key cylinder locks and unlocks the thumb piece. The plate measures 3" wide by 12-1/16" with a plate thickness of 3/32".
New style axle snaps together, and replaces the old style which were screwed together with allen wrenches. This style of axle has been around since about 1990. The piece on the right is only used for taking the axle apart.
The Von Duprin Panic Device 230NL Trim is for use with the 22 Rim and 2227 Surface Vertical Road devices. The key locks and unlocks the panic bar. The plate measures 3" wide by 12-1/16" high and has a plate thickness of 3/32".
The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.
Von Duprin Part # 050277 Old Von Duprin Part # 960652
The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release. We run into issues where people are able to shake the door, and the door opens. The package includes two sets of stabilizers and all the mounting screws.
The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware. This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite. The screw is a 5/16-18 x 5/8 hollow set point.
The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.
The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997. The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

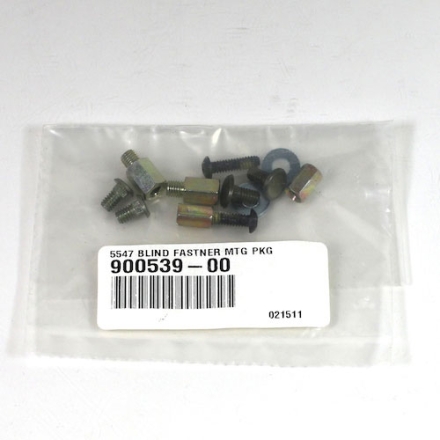

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods. This part is used on the 5547 Concealed Vertical Rod only.
The Von Duprin 050508 88TP-F Cylinder Cam Package is the piece that the key cylinder fits into on the back of the exit device. This piece is only used with the 880TP outside trim on the Rim Devices.
The Von Duprin Old Style Dogging Shaft was used on devices manufactured before July 1997. The Shaft measures roughly 1-1/2" long with a 1/2" diameter. The hex is 5/32".
The Von Duprin Strike 299 is used on the 22, 88, 98, and 99 Rim Devices and also as a Top Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". Ships with shim and mounting screws.
The Von Duprin 9927 Rod Guide Assembly 112063 works on all of the Von Duprin 98 and 9927's. The guide keeps the rods from bowing or getting bent by hand carts, or rowdy patrons. Replaces the old style which had the cover and springs.
The Panic Hex Key 5/32" x 3-1/16" Long is a must for Von Duprin 22, 33, 35, 98 and 99 panic hardware. This key has a longer shaft to reach deeper into the Von Duprin Panic Devices. This key is also known as Hex Key, Dog Key, Allen Key, and Dogging Key.
