The Door Pull Plate 5010 is .050" wought solid aluminum, stainless steel, or brass depending on the finish. The Door Pull GHE10, handles come with thru bolts. The plate has counter sunk holes and sheet metal screws in matching finish.

Finishes

3" x 12" GPL312
3.5" x 15" GPL315
4" x 16" GPL416

The International Door Closer 854P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" x 9-1/16" mounting holes

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

The Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting is the perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only.  The Rim device is one that has a latch bolt sticking out of the housing.

Von Duprin Part # 090050 or 090022

The Yale 2701 is a non handed door closer that can be mounted push, pull or top jamb. The closer is adjustable 1-6 sizing, so it will work on any size door, interior or exterior.  The closer ships with a full cover, and all the mounting screws. This a Grade 1 closer, which is the highest rating possible. The mounting is 3/4 x 12 inches on centers.

The Ives Wall Mounted Door Stop WS33 is another hold back part from the Glynn-Johnson door stop era.  I can not remember the Glynn-Johnson part #, but when Ives purchased them, they changed it to WS33.  This stop is constructed of cast brass that is then plated to a brushed chrome finish.  It features a replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.  And a sloping design that discourages vandalism.The base height is 3" with a width of 2-1/4", and a projection of 3-3/4",  WS33 is furnished with wood screws for drywall mounting.

The LCN 159 Arm Screw is used on all of the LCN Closers to hold the arm on the Spindle of the Cylinder.  This screw goes by the number 4040-159, 4110-159, 4020-159, 1260-159, 1260-159, 4040-159 and 4040SE-159.   This is the screw that holds the arm on to the Door Closer Spindle (Shaft).  The screw has a 3/4" diameter head, 1/2" high with a 1/4" diameter shaft with 20 threads per inch (1/4-20 screw).

The Jackson 1095 30-1247 / 30-1248 Lever Arm.  Replacement Lever Arm for the Jackson 1095 Active Housings.   This arm will only work on the 1095 Active Case!  The difference between this arm and the 1085 arm is the Pin in in the top of the arm.   The pin fits into the triangular linkage clip, which actuates the latch bolt.  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

Yale 1500 Exit Device

1500-36 For openings up to 36" (0.91m) wide.
1500-48 For openings up to 48" (1.22m) wide.
Strikes 799 Rim Strike (Single Doors)
Stile Minimum Stile width: 4-1/2" (114mm)
Hand Field Reversible

The 855 has been discontinued.  If you order it the 885 will be sent, it is the same door closer, but features back check.

The International Door Closer 855P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 48” interior or 42” exterior doors.

3/4" x 9-1/16" mounting holes

Detex EAX-300 Battery Powered Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

Jackson Exit Device Crossbar Screw 1085/1095

Self threading screw cuts its own threads into the extruded aluminum crossbar.

Jackson Part # There is not a part #. Jackson only sells the screw as a package with the crossbar.

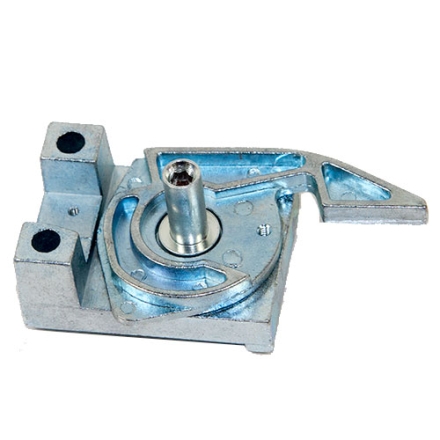

Detex Advantex 102216-2 Hex Key Dogging Assembly

Advantex Hex Dogging Assembly for the 10, 20, 30, 40, and 50 series.

Detex Part #102216-2

The Jackson Door Closer Center hung Arm - 20-400B is used with the 20-330 door closer.  This arm is for use with double acting, center hung doors.  The arm measures 10" long by a 1-1/2" wide and 1/2" thick.

Jackson Part # 20-400B

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

The Door Push Plate 59 has the classic half round design.  The plate measure 7-1/2" wide and 15" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH60 (Push Plate 59), but is a 1/2" more narrow and 1" shorter.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Push Plate 50 is the most common push plate we find out in industry today.  It does not matter what type of commercial building you go into, you will find this style and thickness plate.  The are offered in standard sizes, that are shown below, and can be made to custom sizes.  The plates are 16 gauge metal (.050 thick) and are shipped with 4 beveled edges.   The matching finiish screws are shipped with each plate.

Finishes

3 x 12" GPH312
3.5 x 15" GPH315
4 x 16" GPH416
6 x 16" GPH616
4 x 20" GPH420
8 x 16" GPH816

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Actuator 4-3/4" square, with blue engraved lettering with text.

The Yale Door Closer 51 Series has been around since the early 1970's.  With the advent of the aluminum framed storefront doors, this door closer was a perfect fit.  The 50 series is a non-sized, non-handed closer that can be mounted on the push (parallel arm), pull (regular arm) or top jamb.   A Grade 1 closer certification, means it is one of the more heavy duty closers out there.  Older models may be stamped with Scoville or Eaton, which are the companies that used to own Yale.  We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer.   Ships with all mounting screws and a parallel arm bracket.  The hole spacing is 3/4" by 9-1/16".

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

The International Door Closer 1803BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The International Door Closer 1805BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 54” interior or 48” exterior doors.

3/4" X 9-1/16" Hole Spacing

The LCN Sentronic Door Closer Roller - 3034 is used on all of the LCN Track Closers, and Sentronic Closers. Nylon wheel is 1-1/16" diameter by 3/8" thick. The shaft is has a 1/2" diameter by 1-1/8" long.  However in November of 2015 they started shipping the roller with the Slider 168 attached to it, with a retaining ring. LCN Started using this Roller Assembly in December 2018.

LCN part # 4040SE-3034

The Door Pull Plate 5020B is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

Actuator 4-3/4" square, with blue engraved lettering.

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

The Global Door Closer TC4361 is recommended for use on heavy duty commercial, architectrual and institutional applications. It is ideal for business, new construction and renovations. It has a full selection of accessories to accomodate the requirements of any field installation. It is tri-packed standard and comes with all fasteners, brackets and soffit plates for versatility. Closers with non-hold open arms are UL listed for "A" label fire doors. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Options: Specify when Ordering

• Finish - AL, DU

The hole spacing is 1" by 7-1/2"

The Yale Door Closer 3501 is constructed of a cast aluminum alloy.  It is considered a Grade 1 Closer, which is the highest grade possible.  The closer features an adjustable spring tension, and separate closing, latching and back check intensity valves.  The full plastic cover is standard on this closer.  This door closer replaces the older 3501BF closers. The new version is Barrier Free Complaint.  The hole spacing is 3/4" x 12", the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum cylinder.  This closer ships with all of the mounting hardware and parallel arm bracket.

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram
