The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044.  These do occasionally fail, we sell them individually.  It is # 3 on the diagram.

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L

The Von Duprin 55 Rim Latch Bolt Spring 967502 is only used on the 55 Rim Panic Hardware.  This spring just keeps pressure on the latch bolt, it does not lift the arm.  If your arm is sagging, they you need to tighten the crossbar wedge tite screws and check and make sure the 55R200 55 Hinge Case Spring is not broken.  It measures 1-1/2" long by 3/8" diameter.

Von Duprin part # 050354
Old Part # 967502

Von Duprin 090065 Bolt Return Spring-pkg of 10 is used on the 2227, 3327A, 3527A, 9827 and 9927 Exit Devices.

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

The Lifetime Polished Brass Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial brass finish that is then polished. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Polished Brass Kick Plate PVD. Because the finish is an artificial brass, it does not have to be clear coated, so it will never tarnish. The Lifetime Polished Brass finish cost the same as the Solid Brass Polished Kick Plates.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut brass screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes, but they are made of Stainless Steel, which is a tough metal to drill. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00

The Von Duprin 47273111 Converts the E996L to the new M996L.  The difference between the two the later is a motorized version which is more robust and draws less current.  The kit includes the M996 Motorized Module and Slider Assembly.  They are offer two version one for the Rim (Rim), Surface Vertical Rod (SVR) and Concealed Vertical Rod (CVR) Exits, and one for the Mortise Lock Exits.

Dor-o-Matic 1390 Dogging Assembly. If you have a 1390 and the dogging is stripped, this is the part you need. The package includes the Dogging Cam (4270102815), Activating Cam (4270106551), Spacer (4270108584), and Retaining Ring (4299100732).  The 1390 was discontinued in about 2003. Also known as a PB-96 Dor-o-Matic 1390 Dogging Assembly

Doromatic part # 4270106669

The Von Duprin Panic Device 210K  Knob Trim is for use on the 22 Rim and 2227 Surface Vertical Rod devices.  Key in knob can lock and unlock the knob.  Since the enforcement of local ADA standards, this knob is probably at the end of this life, no one seems to want these anymore.  The mounting plate measures 3" wide by 4-25/32", and is 3-32" thick.  We do have parts on this Knob, but at this point they are not on the website.

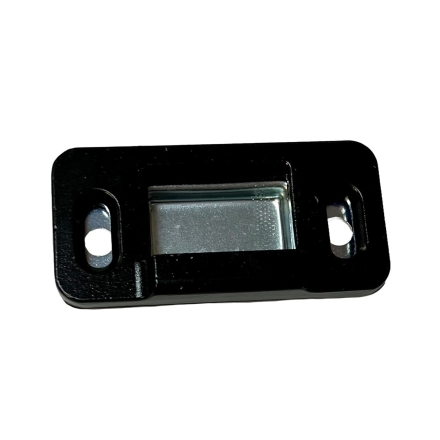

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

The Von Duprin Dogging Adapter 090043 is the piece that the 090042 and 090040 fit through and lock in place.  These piece very rarely has to be replaced.  The Shaft 090040 is usually the part you need to replace.  We sell these individually.

The Von Duprin 050400 Top Latch is used on the 2227, 3327A, 3427A, 9827 and 9927 exit devices. It is used the Fire-Rated along with the standard Panic Devices.  The 050400 is sold without the the Mounting Bracket, if you need the Mounting Bracket you can order the 050546, or order the G99VR10 (050091) which will come with the Bracket. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050400

The Von Duprin Panic Device 230L Lever Trim will work on the 22 and 2227 series exit devices.  In 2008 this lever was redesigned and went from a key in the lever to the new style which has the key above the lever.  The plate measures 3" wide by 6-3/8" high and is 15/16" thick.  This lever only comes in sprayed aluminum or dark bronze.  We also have replacement parts for this particular trim piece in stock, email  us under the contact tab at the top of the page.

Cylinder not included

Installation Instructions

The Von Duprin Strike 299 is used on the 22, 88, 98, and 99 Rim Devices and also as a Top Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  Ships with shim and mounting screws.

The Von Duprin 050508 88TP-F Cylinder Cam Package is the piece that the key cylinder fits into on the back of the exit device.   This piece is only used with the 880TP outside trim on the Rim Devices.

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

Von Duprin 090056 Top Latch Compression Spring-pkg 10 is used on the 2227, 3327, 3527, 9827 and 9927 Exit Devices.

The Von Duprin Dogging Adapter Spring 090042 is the clip that holds the dogging shaft in the assembly.  We sell these individually, and it is the #2 item on the diagram.

Straightens bent full mortise hinges. Slide cylinder over the butt of the hinge and rotate. Extra long handle provides the torque to bring the hinge back inline. t measures 19-1/2" long, with barrels on each end of 3/4" and 1" diameters.

The Von Dupin 1439 Strike measures 1-7/8 horizontal x 1-3/4 inches vertically.  The strike has a projection of 1/2 inch.  We find this strike used on the 33A and 35A exit devices.

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The Von Duprin Dogging Hook 090044 is the piece that grabs the push bar mechanism and keeps it in the dogged position.  The does wear out, but it takes a long time.  This piece is used on the 22, 33A, 35A, 98 and 99 series devices made after 1997.  We sell this part individually and it is #5 on the diagram.

The Von Duprin 88 Center Case Rivet 090002 is also known as the Latch Tail Rivet used on the 88 Rim Device.  The Rivet fits into the spring and into the Latch Tail 050500.  The rivet measures 1-1/4 inches long less the head, with a 1/8 inch diameter.  We sell this piece individually.

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Doromatic Exit Device 1490 Pushbar End Cap PB201

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106787 or PB201

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

The Polished Stainless Steel Door Kick Plate is 16 gauge, or .050″ thick. Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We often have people looking for Brushed Chrome or Polished Chrome, but the appearance of the two finishes next to each other is very difficult to tell which is which. Also a brushed chrome or polished chrome kick plate would be a brass plate which is then chrome plated and brushed or polished depending on the plate. Brass is a soft metal that dents easily, and also does not offer the corrosion resistance that stainless steel does. Since stainless steel is stable in any environment, they do not have to clear coat the plate.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws.  The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.37 per square inch depending quantity.
