Lifetime Satin Nickel PVD Door Kick Plate

The Satin Nickel is a popular finish we have been seeing the last 15 years. These plates are 16 gauge or .050″ thick.
The Lifetime Satin Nickel Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial satin finish that is then brushed. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Satin Nickel Kick Plate PVD. Because the finish is an artificial satin nickel, it does not have to be clear coated, so it will never tarnish.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 1 week shipping time

The Brushed Bronze Door Kick Plates are solid bronze plates that are finished in a Satin or Brushed finish and then clear coated.  The Bronze Kick Plates are similar to the Brass Kick Plates, but they have more of an orange hue, were as the brass plates have a yellow hue.  This was a very popular finish in the 1950's, 60's and early 70's.  Custom sizes are available starting around $0.49 per square inch depending quantity.  Kick Plates come pre drilled with screws.  Please allow 2 week shipping time.

The Gold Aluminum Door Kick Plate are constructed of .040" thick aluminum base material that is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.  Ships with matching Phillips type sheet metal screws..  Please allow 7-10 days for delivery
.

The Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting is the perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

Solid brass kick plate, polished to mirror finish.  We can no longer get the solid brass plates, the lifetime polished brass will be shipped in its place.

The standard Polished Brass Door Kick Plate is a solid brass kick plate that is polished and then clear coated to prevent oxidation. These plates are 16 gauge or .050″ thick. A draw back of the Polished Brass Plates is oxidation. If the plate becomes scratched or dented, there is a good probability that the clear coat delaminates and moist could get under the surface. When this happens, the plate will tarnish. The brass base material is softer, so the chances of them becoming scratched or dented in commercial applications is pretty high.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut brass screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

I would highly recommend the Lifetime Brass if these plates are going to be mounted outside. Solid brass is soft, and tends to dent easily and the clear coat can be compromised. The Lifetime Brass plates do not require a clear and will last a lot, lot longer!

Custom sizes available starting around $0.40 per square inch depending quantity

Norton / Yale Door Closer Hold Open Parallel Bracket

Replacement bracket works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 3000, and 4400 series hold open closers.

Norton Part # 1628H
Yale Part # 588

The Door Push Plate 62 is constructed of 16 guage (.050") thick aluminum, stainless steel, brass or bronze depending on your finish.  They measure 7-1/2" by 15" tall.  This plate is handed left and right, the one shown on the website is a Left Hand.  Plate comes with matching finish mounting screws.

Finishes

LCN Drop Plate for Top Jamb Mounting

Use the LCN Top Jamb Mounting Plate for applications where the door closer body is mounted on a narrow overhead jamb.

LCN Part #'s
1260-18TJ
1460-18TJ
4020-18TJ
4040-18TJ

The Diamond Plate Aluminum Door Kick Plate are solid aluminum.   They are 1/8" thick and have a gloss or polished finish.  These plates have the Diamond pattern, and the diamonds are 1-1/8" long.  Custom sizes are available, they run about $0.39 per square inch.  The lead time on these plates is about 7-10 days.

The Brushed Stainless Steel Door Kick Plate 14 Gauge .062 is the heaviest duty plate we offer .  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use only type 304 stainless.

 Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

 You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

 Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

The International 8600 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

The International Door Closer (IDC) 8710S is a narrow design rim device. The minimum stile width has to be 2-19/32 inches. The device features a 3/4 inch throw deadlocking latchbolt, hex key dogging, and ships with machine screws and strike. The device is Grade 1 Rated, which is the highest rating possible. The 36 inch device is 33-15/32 long and the 48 is 44-3/4 inches.

The Corbin Russwin 188F03 Quik-Install Mounting Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is what you mount on the door or door frame and the door closer cylinder mounts to.  Corbin Russwin part # 188F03.

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)
Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

The Von Duprin 9927 Top Vertical Rod 110573 is the standard top rod for door heights up to 7'1".  The length of this rod is 35", less the fittings.  For larger doors you can order a Rod Extension Kit, which at this point we do not have online.  The rod is field adjustable if your doors are less then 7'1".  The Old Von Duprin part # is 110573, and the Newer Von Duprin part # is 050512.

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

Pull Plate 100

This 2" x 3-3/4" pull plate is constructed of solid aluminum, brass or stainless steel depending on the finish. The plate is .125" thick and the diameter of the hole is 1-1/4 inches.

Finishes

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

When Less All Parts is selected only the Cylinder is shipped, just the replacement hydraulic cylinder will be shipped

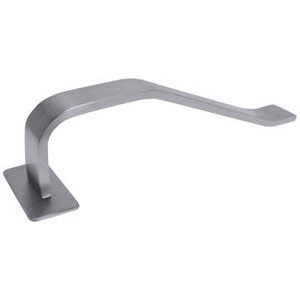

Trim Protector Bar

A great product for applications were your door knobs and levers are getting damaged due to hand carts and other items hitting door trim. Mount this product above or below existing items on walls and doors to protect and sheild them from damage.

Material: Brass, Bronze, Stainless Steel
Material Size: 3/8" x 1-1/2"
Base: 1-3/4" x 3-1/2"
Projection: 3-1/4"

Anodized Aluminum Door Kick Plates are the most cost effective, least expensive. The aluminum plates are 16 gauge, or .050″ thick and have a brushed or satin finish. They have an anodized finish to resist corrosion and we find these in many commercial buildings through out the United States.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.21 per square inch depending quantity

Please allow 1 week shipping time

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

The PBB Shim Hinge is for use in Fire Doors where the doors are not square.  Putting cardboard or wood shims on fire doors is prohibited, so they have come up with a solution where one of the leaves are drilled tapped and a set screw is inserted.  These hinges are only available in 4.5 x 4.5 sizes in brushed chrome finish. They are sold in boxes of three hinges and come with wood and machine screws. The base metal is steel.

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

The Glynn-Johnson Overhead Door Holder 450 Series provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The Glynn-Johnson 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

The 450 Series replaces the older GJ360, GJ370 and GJ380 Series.

GJ450 Catalogue

Corbin Russwin ED5400 Exit Device

Handing
Device is handed but easily field reversible.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Door Thickness
1-3/4" (44mm) standard.
Stile
Minimum width 4-1/2" (114mm).
Door Height
Standard top rod for 7' door.

Replacement parts are also available

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

The Von Duprin 22 Panic Only 22EO is part of the economy series.   Even though is it the least expensive Von Duprin, it is still a very heavy duty panic device.  It is for all types of single and double doors with mullion, for door stiles as narrow as 3-13/16”.   All 22 Series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, Grade 1.  The Von Duprin 22 ships with the 299 standard strike, dog key, and all of the needed mounting fasteners.  Even though it is the least expensive, they offer all the replacement parts, just like there other models.  We stock all of the replacement parts Von Duprin has to offer on the 22 and 2227 series.
We keep the 36” devices in stock in the SP28 Sprayed Aluminum and SP313 Sprayed Dark Brown in stock.
Von Duprin Part # 22EO

Exterior or Interior Doors
Weight to 450 lbs.*
Door Width up to 4'0"(1219mm)
Includes 180 top pivot
Handed

The Ives Wall Bumper Stop WS407-CVX our economically price convex wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Exterior or Interior Doors
Weight to 600 lbs.*
Exterior Door Width up to 3'0"(914mm)
Interior Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

The Brushed Stainless Steel Door Kick Plate 16 Gauge .050 is the most popular.  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use type 304 stainless

Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.23 per square inch depending quantity

Please allow 1 week shipping time

The Push Bar W/Offset Grip 422X39 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Corbin Russwin ED5200 Exit Device

Handing
Device is non-handed.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Stile
Minimum width 4-1/2" (114mm).

Replacement parts are also available

Corbin Russwin ED5200A Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for fire rated doors. For non fire rated doors, order the G650F35-8. A fire rated door is a door were you can NOT use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F36-8

Rim Cylinder Hub Position for the ED5200A
