This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Falcon SWITCH.1006 Request to Exit is for use on the Falcon and Dor-O-Matic 1690, 1790 and 2390 devices, produced after June 2002.  The Request to Exit Switch allows you to cut the current to various devices when the push bar in depressed.

Installation Instructions

The Corbin Russwin Regular Arm Parallel Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is required if your are going to use a parallel arm mounting, which is when you have the closer mounted on the door, on the push side of the door.  Corbin Russwin part # 188F41-8.

Sargent inside/outside spindle

8100 Series rec'g prior to 1/1/1990

includes lever bushings, roll pin and set screws

Sargent part # 578-2, also known as the 81-2946

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

Von Duprin 6111 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices. The model 6111 retrofits model number VD 3031, and measures 1-5/8” wide, 6” high and has a backbox depth of 1-3/4”.    Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

6" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 5-3/8" to the Floor when mounted.

Made by Grand Specialties 606z and 606br
606BR is not longer manufactured

10" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 9-3/8" to the Floor when mounted.

 Made by Grand Specialties 610z

The Sargent Door Closer Hold Open Arm 25-H is known as a Friction Hold Open Arm.   As the arm rotates it tightens the two plates together until they can not turn any more, and holding the door open.  To close you just pull the door and it will "unscrew".   The hold open position is adjustable by tightening or loosening the larger nut.

Sargent part # 25-H

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

International 5510S Rim Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

The Jackson Door Closer Center Hung Arm - 20-2000 is used on double acting doors with the 20-330 concealed door closer.  The arm measures 9-1/2" long by 15/16" thick.

Jackson Part # 20-2000

The Ives Plunger Door Holder / Stop FS1153 is manufactured by H.B. Ives and features a contemporary yet economical method of positive Hold-Open.  This was another one of the Glynn-Johnson door stops that was merged in the H.B. Iver product line in the 1990's, and went by the 1153 part number.  This door stop is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The stop has a 1-5/8" throw or projection for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.  These are sometimes called pop-up or push down stops.  Ships with mounting screws.

Aluminum finish only

The BB84 Half Surface 4-1/2” Door Hinge is a specialty hinge.  The hinge leaf will mount on the door frame in the standard mortise position and the other leaf mounts on the door face.  These are five knuckle, two bearing with square edges.  They are constructed of 10 gauge (.134”) steel that is then plated to the desired finish.  We ship in boxes of 3 hinges with the wood and machine screw.

The Von Duprin Panic Device 880TP Trim is for the 88 series only.  The stanchions welded on the back line up with the 88 device on the interior.  The optional key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 14-3/16" long with an 1-5/8" bore hole for cylinder.

Von Duprin part # 880TP-R

The BB82 half Mortise 4-1/2” Door Hinge is a specialty hinge. The hinge fastens to the standard mortise slot on the door and the other leaf mounts on the face of the door frame. These are five knuckle, two bearing with square edges. They are constructed of 10 gauge (.134”) steel that is then plated to the desired finish. We ship in boxes of 3 hinges with the wood and machine screw.

The Burns 617 Non-Locking Pocket Door Pull Set is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Jackson 1095 Panic Hardware was one of the first devices universally recognized as the standard for aluminum storefront hardware. Made of high tensile strength aluminum.  It ships complete with both housings, crossbar, all the fasteners, and the strike.  Comes with 45" cross bar that is easily cut in the field.

LCN Sentronic Door Closer 4310ME/4410ME/4040SE-3210 Transformer

Sheet metal mounting plate measures 4-1/8" x 4-1/8".    Black wire is 115 VAC, 60 HZ.  Green Wire is 24 VAC, 400MA

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

Kickdown Door Holder Rubber Shoe For The Grand Standard

Replacement shoe for the GJ604, 605, 605,
606, 608, 610, and 612 Grand door stops.
Includes screw

Floor Door Stop / Holder Heavy Duty 541

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 3" high.  Uses a 3/4" diameter hole for the lag sheild.

Yale 791 Top Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Top Strike.  This is the same strike as the Corbin Russwin 650F54 or 650F54-8.  This strike no longer uses a roller.

Yale Part # 791

LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

The Von Duprin Panic Device 880DT Trim is for 88 Series devices only.  Stanchions welded on the back line up with the device on the interior. The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

Product Description & Features
• Total Projection: 1-13/16" (46mm)
• Mounting Requirements:
2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• Wall must be properly reinforced and outlet box
adequately fastened
• UL listed door holder

The International 8600 Dogging Assembly is used on the 8510S, 8710S, 8610S, 8810S, 8501S, 8710S, and many more.

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

The Ives Wall Mounted Door Stop WS33 is another hold back part from the Glynn-Johnson door stop era.  I can not remember the Glynn-Johnson part #, but when Ives purchased them, they changed it to WS33.  This stop is constructed of cast brass that is then plated to a brushed chrome finish.  It features a replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.  And a sloping design that discourages vandalism.The base height is 3" with a width of 2-1/4", and a projection of 3-3/4",  WS33 is furnished with wood screws for drywall mounting.

Replacement Rubber Shoe for Mickey Door Holder

Replacement shoe for the GJX2M Grand Specialties 3" Mickey Door Stop.

The Jackson Door Closer Center hung Arm - 20-400B is used with the 20-330 door closer.  This arm is for use with double acting, center hung doors.  The arm measures 10" long by a 1-1/2" wide and 1/2" thick.

Jackson Part # 20-400B

The Von Duprin 050053 5547 Top Rod Kit 6'8"-8' Door is for the 5547 Concealed Vertical Rod.  The kit include the rod, and latch for a door height of 6'8" to 8' tall.

Von Duprin Part # 050053
Old Von Duprin Part # 104759

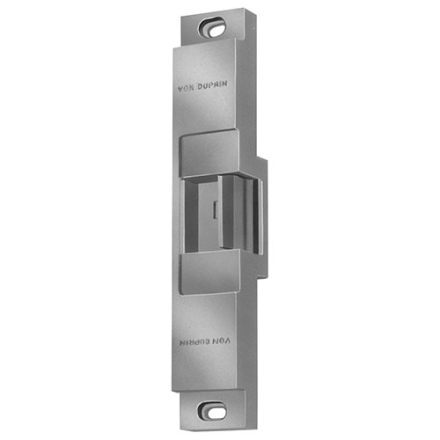

Von Duprin 6112 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.
