Search results for: 'dorma spring door coat dor matic von'

Discontinued December 2024

Doromatic 2390 Moving Pushbar End Cap

Doromatic 2390 Moving Pushbar End Cap is the piece that fits on the end of the pushbar. The Endcap is 3-3/8" high by 1/4" thick, with an 1-7/8" projection. The Pushbar End Cap is constructed of die cast metal that is painted black.

Doromatic / Falcon Part # PB342 or ECAP.143

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws.  Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”.  Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors.  Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

The LCN Door Closer 4041XP-CUSH is the same cylinder as the 4040XP, but with a CUSH arm (4040XP-3077CNS).  This closer can only be mounted in the parallel arm configuration.  With this closer you get the XP heavy duty cylinder with the heavy duty CUSH arm.

We ship the 4041XP-CUSH

The LCN Door Closer Cush-n-Stop Arm 3077CNS is a Non-handed parallel arm that features solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077CNS, 1460-3077CNS, 4040-3077CNS, 4110-3077CNS.

The Ives Surface Bolt 8" SB453 has a 1-3/16" throw.  The bar has a cross section measurement of 3/4" wide by 1/4" thick.  It features a strong tension springs to prevent the bolt from creeping.  The bolt is shipped with all of the fasteners and a universal top and a standard mortise strike.  It is constructed of heavy duty steel that is then cadmium plated.

Ives part # SB453-8-TB-2C

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

The LCN Door Closer 4011FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

We ship the 4011 FL

The Norton Traditional Door Closer 78 B/D is a door closer used in historic buildings.  This is a replica of the original cast iron door closer used from the 1920’s to 1960’s.  The new version is made of a cast aluminum alloy material, and should only be used when you are trying to keep historic designations.  The hole spacing on this closer is 1-3/8" x 4-1/4”.

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

The LCN Sentronic Overhead Concealed Door Closer 3130SE is shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram

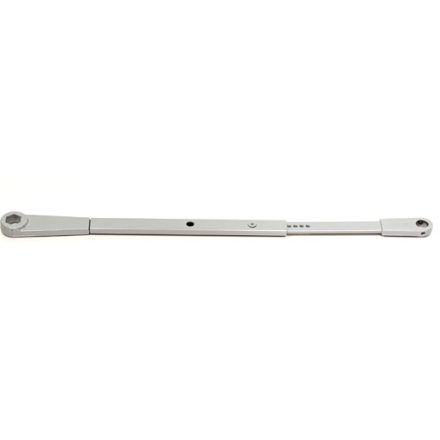

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

Norton / Yale Door Closer Arm Shoe Assembly

Replacement Shoe Assembly for Norton 1600, 9300, 7500 and 8000 series door closers. And Yale 50, 2300, 8000 and 4400 series.
Base measures 11/16" x 2-1/4" with 1-3/4" center to center screw hole mounting. Bracket projects out 15/16". The pin is 3/8" diameter.

Norton part # 7701AS or a Yale # 400-AS

Old Norton Part # 1620AS

The Norton Apollo Door Closer 7500 has been around for quite a long time, and was designed to replace the older 7700, which are still made. The beauty of the 7500 is that is can be mounted left or right, push, pull or top jamb, were as the 7700 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 7500BF, the barrier free version, the new 7500 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.

The International Door Closer Arm 3010-PT is for end loading top arm assembly (7/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

The International Door Closer 525 Parallel Bracket is the standard bracket shipped with most of there closers.

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

The LCN Door Closer 3077EDA Extra Duty Arm is the standard arm shipped with the 4110 series, and is optional on just about all of there other closers.  The arm features a non-handed parallel arm solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077EDA, 1460-3077EDA, 4040-3077EDA, 4110-3077EDA

The LCN Door Closer Hold Open Arm 3049 has an adjustable nut that allows the door closer arm to lock when they reach a pre select position.  This arm can be used on most LCN Door Closers because the Hold Open function is in the arm.   If you have a regular armed LCN Closer currently, you can use this arm to make them have the Hold Open function.  Two words of warning, they can not be used on an interior fire rated door, and Hold Open arms usually break.   The manufactures sell more door closers with regular arms, but we tend to sell more Hold Open arms, meaning they wear out or break a lot easier then Regular Arms.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049 (non handed), 1460-3049 (non handed), 4010-3049 (handed), 4020-3049 (handed), 4040-3049 (non handed).   The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.

Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

The Door Pull Handle 11  has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

The Norton / Yale Door Closer 7701-3 Hold Open Arm is the standard hold open arm shipped with Norton and Yale Door Closers.   It is known as a Friction Hold Open, because as the arm rotates it tightens down two plates together.   Adjusting the large hex bolt on the Hold Open Assembly determines where the arm will hold open.  This part has had a couple of numbers over the years 7701-3, 1620-3 for Norton and 400-3 for Yale.

The Door Pull Offset 1" Diameter PH-4000 is usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.  This handle projects 3-1/4", has a 2-1/4" door clearance, comes in 9", 10" and 12" centers.  One of the most popular handles we sell.

The Panic Hex Key 5/32" x 3-1/16" Long is a must for Von Duprin 22, 33, 35, 98 and 99 panic hardware.   This key has a longer shaft to reach deeper into the Von Duprin Panic Devices.   This key is also known as Hex Key, Dog Key, Allen Key,  and Dogging Key.

The International Door Closer 521 Regular Arm Forearm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521

The Norton Door Closer Parallel Arm Bracket is the bracket shipped with the Norton 1600, 7500, 8301, 8501 and 9300 series closers.  This bracket is also used by Yale on there 2300, 50, 3301, 3501 and 4400 door closers.  The factory part number on this is 1618A for Norton and 289A for Yale.

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

The Command Access VLP-KIT is a replacement for end of Life Solenoid powered Von Duprin exits. The VLPKIT is a field installable solenoid latch pullback baserail for 36 inch Von Duprin 33/35 and 98/99 series devices.

The LCN Door Closer Hold Open Head And Tube 3048 - 3048L.  As the arm rotates the pivot point threads close on to the mounting bracket face and create a friction catch.  If yours is new, try rotating the mounting plate 180 degrees so the threads tighten as it closes. This replacement part from LCN either breaks or wears out.   The material some times wears out due to the friction of open and closing.  But the biggest issue seems to be the point where the tube mounts to the cast iron connector.

Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is specail ordered.

The arm shown in the picture is a 4040SE arm, the 4010SE arm is the same, but the shaft hole is an oval.
