Search results for: 'half case push plate goods'

Sargent 97-0050 Knob Return Spring

This Sargent Knob Return Spring measures 1-1/16" overall length by 3/16" diameter

Sargent Part # 97-0050

Replacement Dorma 9000 Series End Cap, sometimes know as the EC9

Shown in Dark Bronze

Replacement Cal-Royal 9800 End Cap and Bracket.   Includes mounting screws.

Norton Hook Up Boards for units made after 2009.  Available in 24 or 120 Volts.

The Adams Rite 31-0964 is used on the 3500, 8600, 8675 and 4781 Devices. The assembly comes with the nylon bushing.

Actuator 6" diameter, with blue engraved lettering.

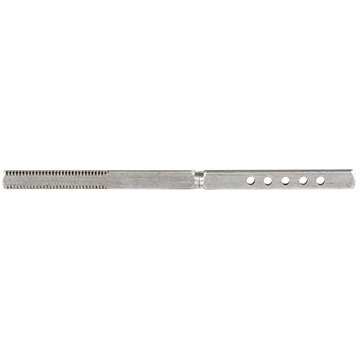

Yale 1174 Spindle

Threaded side 3" long, pin hole side 2-3/8"
overall length is 5-3/8",
20 Threads per Inch

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

Detex 98 Advantex 100855-1 Semi Mortise

98 Semi-Mortise-applied strike for 10 an d40 series Rim Devices

Detex Part # 100855-1

The Von Duprin 900581 Cylinder Cup and Tail Piece Assembly is used on just about everyone of their devices outside tirm.

Single Left Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock just prevents theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

No longer available, we do have some of the GPB116 Cam Assemblies left.

Doromatic 1490 Cylinder Assembly 149CA-HB

Doromatic part # 149CA-HB

Need extra brackets for your Secuity Latches, you can order them here.  The are sold individually.  Constructed of welded steel and this then powder coated black.

Von Duprin 090065 Bolt Return Spring-pkg of 10 is used on the 2227, 3327A, 3527A, 9827 and 9927 Exit Devices.

Corbin Russwin 32 Spindle

Also known as the Cobin 409F068, Russwin #32, and Corbin 360F78.

20 tpi
4-3/4" long
1 solid center
3 pin holes one side

Yale 790 Bottom Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Bottom Strike.

Yale Part # 790

Swivel, 9/32" square,
16 tpi, 4-3/4" long,
with stop pin

2 piece sectional
9/32" square x 2-5/8" long
20 tpi

Doromatic Exit Device 2090 Retractor Retaining Ring

Keeps the Retractor in place.

Doromatic part # RRING.102

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Detex HDK 100450 Dogging Hex Key has a 5/32" hex with a 2-1/4" shaft length.   The overall length is 3-1/8".

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044.  These do occasionally fail, we sell them individually.  It is # 3 on the diagram.

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

No longer available

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown
