The Falcon 712L Lever Trim is used for the XX-C, 18-C, and all 24 Series Falcon Devices.  The XX-C and 18-C are the obsolete concealed vertical rod Monarch Exit Devices. The Trim is non handed or field reversible. The Key locks or unlocks the Lever. The escutcheon measures 1-3/4" wide and 7-1/4" long.

The 590 is made of solid brass and ships with matching screws.  The faceplate measures 1 x 6-3/4 inches, the strike is 15/16 x 2-1/4 inches and comes standard with a 12 inch rod.  The mountng screws are 1 x 6-1/4 inches on centers.

Falcon 3788 Top Latch Strike

The Falcon 3788 Top Latch Strike is used on the 18-V, 19-V, 24-V, 25-V and XX-V panic and fire rated devices.

Falcon Part # 3788

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

The Dor-o-Matic Falcon 4758959 Soleniod is used on the EL1690, EL1790, and EL2390 Electric Latch Retraction exit devices.  The Solenoid measures 4-1/8 inches long including mouting flange, and has an 1-3/4 inch diameter.  The mounting screw spacing is 1 inch on centers. The Plunger is included and has a 7/8 inch diameter and is 2-15/16 inches long.  We find the number 971687 on the solenoid.

7-1-2025 No longer available.  If you have the 1690 or 1790 you can update your exit to the new mortor 47867200

Falcon 603 Concealed Top Latch Kit, used on the 18-C, XX-C, 24-C and 25-C Panic Hardware.

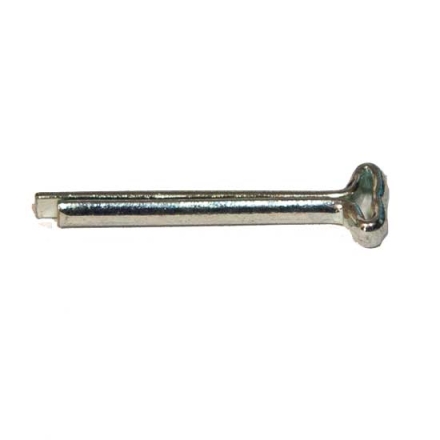

Monarch Falcon 060111 Cotter Key Package

Monarch Falcon 060111 Cotter Key Package or 10.  Cotter Key measures 1/8" x 1"

Monarch Falcon Part # 060111
Old Part # 661102

Falcon F570 Strike

The Falcon F570 Strike for 19-R and XX-R Devices is used on the Fire and Non Fire Rated Devices.  This is the same strike that was used on the Monarch XX-R, 19-R, 17-R and 18-R devices.

Falcon Part # F570

Falcon 650236 24-V Center Case

Replacement Center Case for the Falcon 24-V Narrow Stile Surface Vertical Rod Device.  This Center Case is the same for the Fire Rated and Non Fire Rated devices.

Falcon Part # 650236

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Falcon 650387 Bottom Bolt Guide Assembly

The Falcon Monarch Bottom Bolt Guide Assembly 650387 is used the 19-V, 24-V, 25-V and the XX-V Bottom Rod.  The Guide Assembly measures 1-7/8" tall by 1" wide and projects 1-9/16" at the widest projection.   The Bottom Bolt Guide is made of zinc plated steel.

Falcon Monrarch Part # 650387

Falcon 299 Strike

The Falcon 299 Strike is used on the 25-R and 24-R Devices.  The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  This strike is the same as the Von Duprin 299 Strike.

Ships with shim and mounting screws

Falcon Part # 299

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

Falcon 650233 / 650234 24-R Center Case

Replacement Center Case for the Monarch-Falcon 24-R Narrow Stile Rim Device.  This Center Case is for use on both the Fire Rated and Non Fire Rated devices.  This was changed in the summer of 2018.  The 650233 has been replaced by the 650234, which was the Fire Rated version part number.

Falcon Part # 650233 / 650234

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

Detex EAX-500 Battery Powered Door Exit Alarm

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Mortise cylinder sold separately
Uses a standard 9 volt battery

Detex EAX-500 Installation Instructions

TH1114U US Alum Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Falcon Automatic Opener 8242 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon Automatic Opener 8231 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Choose Color and Doromatic Falcon Model Number (Function)

The Falcon 600293 E Trim Solenoid PKG is used on the 25 Series Electrified Lever Trim.  The unit can be used for Fail Safe or Fail Secure applications, depending on how the unit is installed.  The piece measures 3/4" diameter by 1-1/2" long, with a 3/4" hole spacing.  We sometimes find the numbers 661375-00 and 610306-00 on a stick on this piece.  The package ships with two mounting screws.   This unit is called the FSA/FSE Solenoid Kit on their parts breakdowns and in their price book.  The Falcon/Monarch part number is 600293.

Monarch Falcon 060110 Dogging Pin Package

Used on the Monarch 17,18 and 19 Series Panic Devices.  Pin measures 9/16" overall length with a 5/16" diameter head and 3/16" diameter shaft.  Sold as a package of 10.

Monarch Part # 060110
Old Part # 4086

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Monarch 19-R Exit Panic Device

• Hand: Non-Handed.
• Functions: All functions built into “EO” device.
• Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313; Stainless Steel-US32D
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Stock Sizes: 3'0" and 4'0"
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

The Falcon/Monarch Fire Rated Top Latch is used on the F-19-V, F-24-V, F-25-V, F-18-V and F-XX-V Surface Vertical Rods.  The new number from Falcon is 650375, the old Monarch Number was F588.  This latch is used on the above devices that are Fire Rated, meaning you can not dog these device in the Unlock Position.  If your device has the ability to be dogged open, then use the G588 Non Fire Rated Version

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

TH1110 Arch/Vista Wall Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Falcon 24 / 25 Series 650294 Channel End Cap Kit

This end cap is used on the Falcon 24 and 25 series devices.  Used to go by then number 600270, but the factory is now using the number 650294.  Includes bracket, screws and end cap.

Falcon Part # 650294

The Monarch / Dor-O-Matic / Falcon 600339 NL Spring Package converts the 179L , 712L, 712K, 912l and 911K to an NL function.   The NL function is  one were the Lever Handle can not be unlocked and left in the unlocked position when the key is removed.   Spring has a 5/8" diameter.  See attached instructions.

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

Falcon 650202 19-24-25-XX Latch Cover

This Latch Cover is used on the Monarch Falcon 19, XX, 24 and 25 series devices.  Used to go by then number 3781, but the factory is now using the number 650202.

Falcon Part # 650202
Old Monarch Part # 3781

Falcon Dor-O-Matic STK45 Surface Strike

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish
