Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

Jackson Panic Device 1285 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2661
New Jackson Part # 30-2652-628 or 30-2652-313

Jackson 30-2674 1285/1295 Cover Package

Jackson part # 30-2674-313 and 30-2674-628 Cover Plate for use on the 1285 and 1295 devices..  Plates measure 2-11/16" x 7-1/2 and 2-11/16" x 2-1/8", two plates in each package.

Jackson Part #'s 30-2674-313 and 30-2674-612

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

The Von Duprin 6000 Series Solenoid Kit is used to replace burnt out solenoids on there 6000 series.  To order determine the voltage and whether you have fail safe or fail secure.

Part # 050237 12 VDC (Fail Safe & Fail Secure)
Part # 050239 16 VDC (Fail Safe & Fail Secure)
Part # 050240 24 VDC (Fail Safe & Fail Secure)

Dor-o-Matic 1690 End Cap Screw

Doromatic part # screw.1072 or PB316

Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

Doromatic Exit Device 1790 Parts Breakdown

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

Grade 1 exit device
Device is non handed
Standard widths are 30", 36", 42" or 48"
3-3/4" minimum stile width

Replacement parts are also available

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

The Ives Wall Bumper Stop WS407-CVX our economically price convex wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.

Doromatic part # BUSH.103 or PB43

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Von Duprin 8827 Chassis Tie Rod Pkg 050328

The 8827 Chassis Tie Rod Package is the rod that goes through the top and bottom latches. The Tie Rod is held in place by the Special Chassis Nut. The Tie Rod measures 1-3/8" long by 3/16" diameter.

Von Duprin Part # 050328
Old Von Duprin Part # 967616

The Brushed Stainless Steel Door Kick Plate 16 Gauge .050 is the most popular.  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use type 304 stainless

Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.23 per square inch depending quantity

Please allow 1 week shipping time

The Von Duprin QEL Baseplate Conversion Kit is for use on the 33A, 35A, 98, and 99 exit devices. The size is the size of the exit device.  The 98/99 device 36" would be 33" wide device and the 48" would be for the 45" device.  The 33A/35A the 36" would be for the 35-3/8" wide device and the 48" would be for the 47-3/8" wide device.

Von Duprin Part # 958003 3' Device
Von Durpin Part # 040065 4' Device

Jackson Exit Device Crossbar Screw 1085/1095

Self threading screw cuts its own threads into the extruded aluminum crossbar.

Jackson Part # There is not a part #. Jackson only sells the screw as a package with the crossbar.

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

Von Duprin 8827-F Special Hex Stud Kit

The Von Duprin Special Hex Stud mounts on the upper and lower latches.  The cover attaches to the Hex Stud, it is like a spacer.

Von Duprin Part # 050478
Old Part # 961218

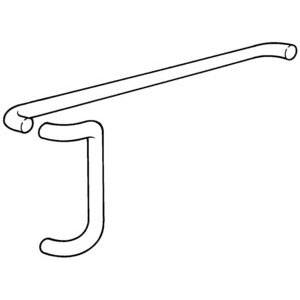

The Push Bar W/Offset Grip 422X39 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.

Doromatic part # BUSH.109 or PB3

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

Falcon 650233 / 650234 24-R Center Case

Replacement Center Case for the Monarch-Falcon 24-R Narrow Stile Rim Device.  This Center Case is for use on both the Fire Rated and Non Fire Rated devices.  This was changed in the summer of 2018.  The 650233 has been replaced by the 650234, which was the Fire Rated version part number.

Falcon Part # 650233 / 650234

Von Duprin 050484 33/3527A Center Case Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050484

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA

Dor-o-Matic 1690 Retainer Screw.

Doromatic part # SCREW.1074 or PB141

Dor-o-Matic 1690 Repair Parts Breakdown
