Doromatic 2390 Push Bar Anchor Brk

Doromatic / Falcon Part # PB335 or BRKT.137

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759

Monarch 19-V Series Chassis Cover 650385 / 6134

This is the cover for the Monarch Falcon 19-V Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8".

Monarch/Falcon part # 650385
Old Part # 6134

Dor-o-Matic 1790 Channel Spacer. This part is used on Dor-o-Matic 1790's with an outside key cylinder.

Doromatic part # SPACER.107 or PB326

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 050073 98/9947 98/9949 98/9975 Case Cover

Cover for the Von Duprin 050022, 050029 and 050030 Center Chassis Assemblies.  Cover includes mounting bracket and screws.

Von Duprin Part # 050073

NO LONGER AVAILABLE

Dor-o-Matic 1490 NL Cam Assembly

Doromatic Part # 4270107268

Parts Break Down

Doromatic Exit Device 2090 Lever Arm

Right hand dark brown shown in picture

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Effective December 20, 2024 the EL1590 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Dor-o-Matic/Falcon EL1590 Panic Device with Electric Latch Retraction

The Dor-o-matic 1590 is our heaviest device and offers a clean appearance with push pad styling and a variety of practical features. The Dor-o-matic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Requires a Power Supply

Replacement parts are also available

Shipped with all screws and strikes.

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

Monarch Trim Spring 4841

2-1/2" long x 3/16" diameter

Monarch part # 4841

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

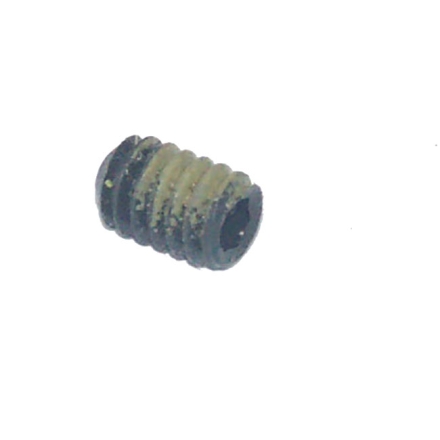

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

Monarch 19 Series End Cap

Black plastic end cap measures 2-1/16" high by 1-5/8" wide with a 1-7/16" projection. Cap mounts on to the two mounting holes fo the End Cap Bracket which are about 9/16" on center.

Monarch Falcon Part # 650343 or old part # 6135

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Ives 112HD Continuous Full Mortise Hinge Geared Hinge measures 83" long and is constructed of extruded aluminum.  This hinge is non handed, and will work on doors up to 48" wide and 450 pounds.  You can easily cut this hinge in the field if your door is less than 83" high.

The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.

Doromatic part # BRKTASY.107 or PB338

Dor-o-Matic 1690 Repair Parts Breakdown

The Ives Wall Bumper Stop WS407-CCV our economically price concave wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Von Duprin 050575 98/9947 Adjustable Bottom Rod

Von Duprin 050575 98/9947 Adjustable Bottom Rod.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050575
Old Part #112342

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

Jackson 1095 RH Backplate Assembly

Jackson Part # 30-846

The Push Bar With Offset Grip M422XM39 is usually found aluminum framed glass store front doors.  It is constructed of 1-1/4" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Von Duprin Push Bar Guide 090049

Fits on the end of the push bar assembly, reduces noise and friction. Used on the Von Duprin 33A, and 99 / 98's

Von Duprin Part # 090049
Old Von Duprin Part # 971993

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall lenght.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

The Von Duprin Exit Device 2227 Center Case 109358 replaces worn out Von Duprin 2227 Surface Vertical Rod Center Cases.  The center case has been the same for the last 30 years.

Von Duprin Part # CASE.107
Old Von Duprin Part # 109358

The Von Duprin 3348/9948 Bottom Latch Kit 050495 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces previous versions of the 33/3548 and 98/9948 bottom latches.

Von Duprin Part # 050495
Von Duprin Old Part # 112907

The Von Duprin 99 Rim Center Case 050020 replaces all previous versions of the Von Duprin 98/99 Rim Device Center Cases. One of the best things about a Von Duprin is when they redesign a part, they make it so your old device is not obsolete and you can update your device.  All internal parts, springs, screws and cover mounting bracket included.

Von Duprin Part # 050020

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

Falcon 24-V 650251 Center Case Cover Kit

Replacement cover for the Monarch Falcon 24-V Narrow Stile Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650251

The Sargent Exit Device 20/30/60 End Cap And Bracket is a part we put together here for your convenience.  Sargent only sells these components separately.  Usually only the cap goes missing, but every once and while the bracket goes missing also.  The package is used on the all of the 20, 30 and obsolete 60 series devices.

Sargent Part # 68-0434, 68-2141, and 97-0052
