The Wall Door Holder/Stop 531 features cast brass or bronze finish which is then plated to the desired finish.  This is considered a manually operated door holder, because it does not latch automatically.  It features a 2-1/2" base with 3-5/8" projection, and ships complete with all of the needed fasteners.

Global Stout Door Closer Bottom Pivot Set

The bottom pivot set is shipped with all the mounting screws and fasteners.

The Corner Guard 301 are a great way to protect corners and edges of doors.  Fabricated from 16 gauge (.050") thick metal they measure 1" on one arm and 1-3/4" on the other, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. This product is ideal for high traffic or areas of high abuse.   They come standard with screw mounting, but other options are available.

Screws included for mounting

Finishes

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

Corbin Russwin Door Closer H.D. Parallel Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes

Corbin Russwin part # 689F02

The Ives WS402CVX Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

Corbin Russwin Door Closer H.D. Hold Open Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes.

Corbin Russwin part # 689F04

The WS11 door stop used to be under the Glynn-Johnson product line as the WB11 until they merged with H.B. Ives.  At that point they became the WS11.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11x, except that it is designed for wood or drywall mounting and ships with wood screws and anchors.

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only

The Dorma 8812 Offset Slide Arm for RTS88 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.  The track measures 13" long by 1-3/16" wide by 7/16" thick.   This is the arm you probably have if you are using 3/4" offset hinges or 4-1/2" wide butt hinges.

Dorma Part # 8812

The Ives Wall Door Stop / Holder WS445 has been a staple of the Ives product line for at least the last 45 years, and is the same product as the WS443 except it has a holder function.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11-16" projection from the wall.  This product ships with an expansion shield and lead shield.  This holder is considered a manually holder due to the fact you have to bend over and latch and unlatch it.

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

The Ives WS401CCV Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Our Dark Bronze Oil Rubbed Bronze Door Kick Plates (US10B) are a baked on powder coat on brass base metal. We switched to this finish 5 years ago due to color variations in the US10B Oil Rubbed Bronze finishes. The US version was much lighter than the Asian version, which is where most the door hardware is made these days. The cost of Oil Rubbing was going through the roof and many platers were having issue with the environmental impact and EPA regulations in the United States. Our Oil Rubbed Kick Plates are 16 gauge (.050″) thick.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut dark brown screw. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates, it is not recommended. Large plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and some C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 2 week shipping time

The Lifetime Brushed Brass Door Kick Plates are the same as the Lifetime Polished Brass Door Kick Plates, solid stainless steel base metal, 16 gauge (.050" thick), but the surface is Satin or Brushed.  Because it is an artifical finish they will not tarnish.  Custom sizes available starting around $0.41 per square inch depending quantity.  Kick Plate comes with screws for mounting.  Please allow 1 week shipping time.

• Standard top pivot for most offset pivot
sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Non Handed

The Duranodic Aluminum (Dark Brown) Door Kick Plates are dark bronze or brown and match the Dark Brown color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Dark Brown Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

The Lifetime Polished Brass Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial brass finish that is then polished. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Polished Brass Kick Plate PVD. Because the finish is an artificial brass, it does not have to be clear coated, so it will never tarnish. The Lifetime Polished Brass finish cost the same as the Solid Brass Polished Kick Plates.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut brass screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes, but they are made of Stainless Steel, which is a tough metal to drill. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

Universal Intermediate Storefront Door Pivot.  Comes with all the screws need to install right out of the box.

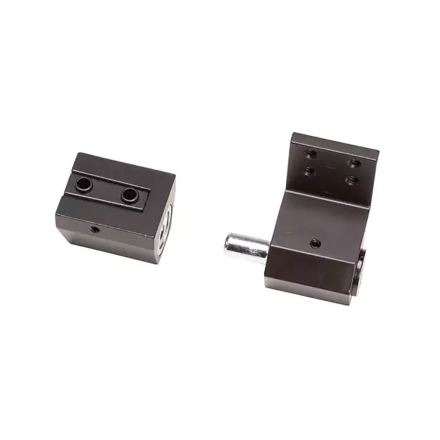

The TH1100-HK1 is the perfect solution for existing hinges that have failed, and is a quick and easy fix for compromised door openings.  Deluxe Hinge Kit TH1100-HK1 comes in a package of two hinges, 2 1/4" shims, and 12 one-way mounting screws.   The hinges are non handed, will work on Flush, and 1/8" offset door applications, have a self lubricating pin that rotates on anti-friction bearings, and have a vertical adjustment screw.   They are constructed of an aluminum alloy.

The Push Bar W/Offset Grip PP-2000 is what we usually find on most aluminum framed glass store front doors.  This particular set can usually ship within 24 hours, and comes in grip sizes of 9", 10" and 12" centers.  The push bar has 33-1/16" centers.   It is constructed of 1" solid aluminum that is anodize clear (aluminum) or dark brown.  It ships with all of the hardware needed for an 1-3/4" thick door.  At this time we are not able to sell the fasteners separately.

Lifetime Satin Nickel PVD Door Kick Plate

The Satin Nickel is a popular finish we have been seeing the last 15 years. These plates are 16 gauge or .050″ thick.
The Lifetime Satin Nickel Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial satin finish that is then brushed. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Satin Nickel Kick Plate PVD. Because the finish is an artificial satin nickel, it does not have to be clear coated, so it will never tarnish.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 1 week shipping time

The Brushed Bronze Door Kick Plates are solid bronze plates that are finished in a Satin or Brushed finish and then clear coated.  The Bronze Kick Plates are similar to the Brass Kick Plates, but they have more of an orange hue, were as the brass plates have a yellow hue.  This was a very popular finish in the 1950's, 60's and early 70's.  Custom sizes are available starting around $0.49 per square inch depending quantity.  Kick Plates come pre drilled with screws.  Please allow 2 week shipping time.

The Gold Aluminum Door Kick Plate are constructed of .040" thick aluminum base material that is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.  Ships with matching Phillips type sheet metal screws..  Please allow 7-10 days for delivery
.

The Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting is the perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

Solid brass kick plate, polished to mirror finish.  We can no longer get the solid brass plates, the lifetime polished brass will be shipped in its place.

The standard Polished Brass Door Kick Plate is a solid brass kick plate that is polished and then clear coated to prevent oxidation. These plates are 16 gauge or .050″ thick. A draw back of the Polished Brass Plates is oxidation. If the plate becomes scratched or dented, there is a good probability that the clear coat delaminates and moist could get under the surface. When this happens, the plate will tarnish. The brass base material is softer, so the chances of them becoming scratched or dented in commercial applications is pretty high.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut brass screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

I would highly recommend the Lifetime Brass if these plates are going to be mounted outside. Solid brass is soft, and tends to dent easily and the clear coat can be compromised. The Lifetime Brass plates do not require a clear and will last a lot, lot longer!

Custom sizes available starting around $0.40 per square inch depending quantity

Dor-o-Matic 1690 Lift Bracket. This is the bracket the Concealed Vertical Rods Connect to.

Doromatic part # BRKT.138 or PB127

Dor-o-Matic 1690 Repair Parts Breakdown

The Diamond Plate Aluminum Door Kick Plate are solid aluminum.   They are 1/8" thick and have a gloss or polished finish.  These plates have the Diamond pattern, and the diamonds are 1-1/8" long.  Custom sizes are available, they run about $0.39 per square inch.  The lead time on these plates is about 7-10 days.

The Brushed Stainless Steel Door Kick Plate 14 Gauge .062 is the heaviest duty plate we offer .  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use only type 304 stainless.

 Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

 You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

 Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

The International 8600 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

No longer available

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown
