Falcon 650389 19-24-25-XX Top Latch

Falcon 650389 17V-18V-19V-24V-25V-XXV Top Latch for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389
Old Monarch Part # 588

Jack Nut 10-24

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

Jack Nut 1/4-20

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

The Glynn-Johnson Overhead Door Holder 100 Series Concealed Mounting, provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Corbin Russwin ED5200 Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for non fire rated doors. For fire rated doors, order the G650F36-8. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F35-8

Rim Cylinder Hub Position for the ED5200

Exterior or Interior Doors
Weight to 500 lbs.
Door Sizes up to 3'8"x 8'6"
Includes 340 top pivot
Non-handed

The Von Duprin 100316 is used on the 5547 on the top of the door.   The top rod goes through the square hole on the plate.  The plate shown in the Picture has both sides or LHR and RHR doors.  One side of the strike is usually broken off depending on the hand of the door.

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

The Hub Position for the ED4200

Von Duprin 050574 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

The 4311HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The 4412HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Double lever arm closer is specifically designed for push side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

Yale Trim Spring Blue

Also used on Corbin Russwin and Yale Lever trims. The Blue Spring is for RHR or LH doors. The spring has an outside diameter of 1-1/4".

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Cal Royal 2000 Series Exit Device Lever Trim

Non-handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For
1¾” and 2 ¼” doors. Prefix THI before part # for 2 ¼” door
thickness. Available for fire and non fire rated rim and
vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”.

The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1".  The actual length of the rod is 37-3/8", less the fittings.  If your door is taller you will need a rod extension.  Call 1-800-642-2403 for longer top rods or rod extensions.

Von Duprin part # 109361

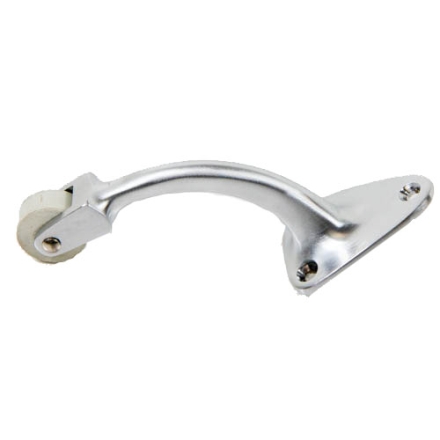

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

Hold Open Cushion Arm for the CRL PR90, Cal-Royal CR441 and International 44CI door closers.  For use in parallel arm applications only, T Handle locks the door in the open position.

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

The EPT-10 Von Duprin Power Transfer is a 10 wire, 24 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-10

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

The Cal-Royal CRCODE204 is for use with the 2200, 7700 and 9800 Rim and Surface Vertical Rod Devices. The Lever Mechanism features a Break Away Lever, for use with 1-3/4 inch to 2 inch thick doors, non-handed, Single Code User, Key Override, easy on the door code change, weather resistant, and more than 8000 non-sequential possible code combinations.

Installation and Programming Instructions

Norton 7700/7705PT Hook-Up Boxes come in two voltages, 24 and 120, and two configurations Hinge Side and Stop Side. Hinge Side means the track is on the side of the door that you can see the Hinges, also know as the pull side.   Stop Side means the track is on the push side of the door.

The Von Duprin 99 Push Bar Retrofit Kit-Pbkit updates your current version touch pad, to the newest version. Used on all the Von Duprin 33A, 35A, 99 and 98's.  For doors 30" to 36" order the 36" size. If your door is 36" to 48" order the 48" size.  The Push Bar is 18" wide on the 36" version.  Please allow 1 week for delivery.

Von Duprin part # PBKIT

The EPT-2 Von Duprin Power Transfer is a 2 wire, 18 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-2

The Adams Rite 4581 Universal Cam is used on the 4500 and 4700 Dead Latches.  The handing is easily switched between Right Hand and Left Hand. We ship the 4581-01 Cam for the 1-3/4" thick doors, if your door is more thick, please email us for a price quote.

The Von Duprin Strike 1409 Blade Stop is used on just about every Von Duprin Rim Device when door frame protection is needed.  We see this strike on many Narrow Stile door setups.  The strike measures 1-7/8" by 1-3/4" outside dimension. The strike has a projection of 1/2".  The strike is constructed die cast metal and the blade is made of stainless steel.

Von Duprin Part # 1409

The Ives Roller Bumper Straight Arm 6" RB472 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 6" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB6 or GJRB6.

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

Corbin Russwin ED4000/5000 L9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Hager Parallel Arm Bracket

Hager Closer Std. Pa Bracket-52/53/54 Series

Hager Door Closer Standard Parallel Arm Bracket - 52/53/54 Series

Hager part # 5900
