The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

Replacement Cal-Royal 9800 End Cap and Bracket.   Includes mounting screws.

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

Cal-Royal 9000 Series Lever Trim HDESC is for use on the 9800 and 9800 Exit Devices. The Trim has a clutch mechanism to prevent breaking and two heavy duty springs to prevent sagging. Escutcheon measures 2-5/8 inches wide by 10-5/8 inches long.  The lever projects out 2-7/8 inches. Key locks or unlocks lever.

Dorma Conversion Plate BP86C

use this plate with the 8616 to convert the old style 7601 and 7801. By using this plate you will not have to redrill holes

Cal Royal 5000 Lever Trim

Cal Royal Part # 8000/L

The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map.  It is designed for all types of single and double doors with mullions.  It is field reversible, and ships with a 42" cross bar that can be cut down in the field.  The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.

The International Door Closer 1804BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 48” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The Ives Wall Door Stop / Holder WS45 was introduced about 50 years ago as the Glynn-Johnson W45A or GJW45A.  When they were purchased by H.B. Ives, it became the WS45.  They are constructed of cast Brass or Bronze and then plated to the desired finish.  This door stop is unique because the wall does not have to be parallel to the door for it to latch and hold the door open.  Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.  A heavy rubber pad cushions the shock and absorbs the sound.  With unit mounted on door and the strike on wall, vertical adjustment is available on body.  The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.  WS45 strike is furnished with wood screws for drywall mounting.

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

Von Duprin 090056 Top Latch Compression Spring-pkg 10 is used on the 2227, 3327, 3527, 9827 and 9927 Exit Devices.

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

The International Door Closer 44CI Adjustable Spring Power is one of there heaver duty closers.   It is designed to line up with the LCN 4040 hole spacing at more than half the price.  It features a rugged cast iron body with a forged steel arm.  It also uses all weather fluid, is non handed and is non sized, meaning you can adjust the door for any size door.  The door closer we are selling here come with a regular arm and parallel arm bracket, so the closer can be mounted on the left or right, push, pull or top jamp.  The closer has 4 adjustments, closing, latching, and back check valves, a long with a spring power adjustment.

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

The Jackson Panic Device 1085 and 1095 Thumb Piece Dogging Pin 30-1117 is a replacement for the Screw Driver Headed Dogging Pin.  Now instead of using a screw driver you can use the handy thumb piece instead.   The package comes with new set screw, spring, and of course the pin.  Jackson part number 30-1117.

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

The International Door Closer 5001P Series Adjustable Spring Power is a great closer to use as a replacement for the many 3/4" by 12" mounting holed closers.  This door closer is fully adjustable with sweep, latching and back check adjustments, a long with an adjustable spring tensoin control.  This closer can be adjusted to less then 8-1/2" pounds of resistance to meet ADA standards.  You can install this closer on the push, pull or top jamb, we ship the regular arm and a parallel arm bracket.  This closer has the same mounting holes as the Norton 8000 and Yale 3000 door closers.

Hole spacing 3/4" x 12"

Von Duprin 22 Cover Plate 968595 968596

Von Duprin 22 Dogging Cover Plate. Plate covers the dogging assy, or hinge side of the exit device. This plate sides off when the plastic end cap breaks or goes missing.

Von Duprin Part # 968595   measures 10-3/4" Long  for 3' devices
Von Duprin Part # 968596   measures 16-3/4" Long  for 4' devices

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

The Von Duprin 99 Cover Plate 050114 is for use on the  33A, 35A, 98 and 99 devices.  Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.  Von Duprin is only shipping a 20-1/2" cover plate now, which will work on 3' and 4' doors, you will have to cut more off if you have a 3' device with a hack saw or chop saw.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

Von Duprin 99 Cover Plate 050114

The Heavy Duty Cal Royal CRCODE101 is for use on the 7700 and 9800 Rim and Surface Vertical Rods. This lock features Single Code with up to 8000 code combinations, weather resistant, non handed, and code can be changed without removing the lock. Comes in Brushed Chrome finish only.

Installation and Programming Instructions

Cal Royal 2000 and 5000 Knob Trim

The Cal Royal GLSRIM9800 is an Entrance Function Lever Handle for the GLS7700 and GLS9800 Narrow Stile Rim Exits.  The Base measures 1-3/4 inches wide by 8 inch tall, with a 2-3/8 inch thick base.

The Von Duprin 8827 Bottom Latch Case 050461 is used on all Von Duprin 8827 non fire rated exits.  A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

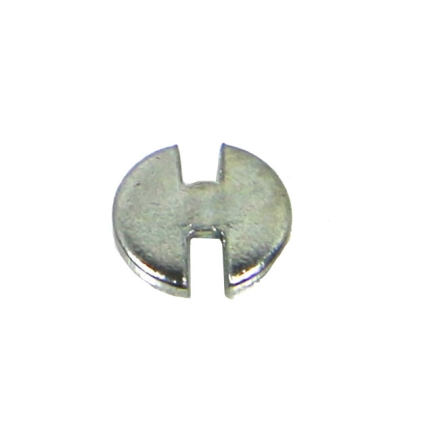

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The LCN Door Closer Spring cush Arm 3077SC is an optional arm offered by LCN.  The arm features a solid forged steel main arm and forearm with a spring loaded stop in the soffit shoe, which makes this arm ideal for abusive parallel arm applications.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1460-3077SC, 4040-3077SC, 4110-3077SC

This package connects to the rods on the Dorma 9400 Surface Vertical Rod Devices. Plate measures 3/4 x 1/2 inch, finger sticks up 3/4 of an inch. Package includes 2 plates and 2 screws.

The Cal-Royal CRCODE204 is for use with the 2200, 7700 and 9800 Rim and Surface Vertical Rod Devices. The Lever Mechanism features a Break Away Lever, for use with 1-3/4 inch to 2 inch thick doors, non-handed, Single Code User, Key Override, easy on the door code change, weather resistant, and more than 8000 non-sequential possible code combinations.

Installation and Programming Instructions

Replacement Cal-Royal 7000 Series End Caps.

The Cal Royal Escutcheon 4400 Lever Trim is non handed (easily field reversible), thru-bolted, rigid non clutch lever for the 4400 Rim Device. The key locks or unlocks the lever. The Escutcheon measures 2-3/4 by 8-1/2 inches, the lever length is 4-3/4 inches. Ships with a 6 pin solid brass "C" keyway Rim Cylinder.

The Von Duprin Strike 299F is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.  Ships with shim and mounting screws.

Von Duprin Part # 299F

Von Duprin 8827-F Bottom Latch Kit 050463 is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.

Von Duprin Part # 050463
Old Part # 102681
