The Yale Door Closer 51 Series has been around since the early 1970's.  With the advent of the aluminum framed storefront doors, this door closer was a perfect fit.  The 50 series is a non-sized, non-handed closer that can be mounted on the push (parallel arm), pull (regular arm) or top jamb.   A Grade 1 closer certification, means it is one of the more heavy duty closers out there.  Older models may be stamped with Scoville or Eaton, which are the companies that used to own Yale.  We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer.   Ships with all mounting screws and a parallel arm bracket.  The hole spacing is 3/4" by 9-1/16".

Door Finger Protector - Interior Push Side

These patented door guards fold against the jamb, allowing them to swing completely 180 degrees. The guard is attached to the face of the door and frame with the provided strong adhesive tape. Clear-frosted color to compliment any color scheme. Finger-Gard for use on Interior Doors, on the push side. Available in 54" or 78" lengths

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

The Stainless Steel Engraved Push Plate is newer to our product line, but has been a very good seller.  This plate is constructed of 16 gauge (.050") thick stainless steel, and comes in two different sizes, the 3-1/2" x 15", and the 4" x 16".  The black engraved "PUSH" is 3/4" tall.  We can only get this is stainless steel at this time, and the mounting screws are included.

The Sargent 20/30/60/80 Connecting Arm Spring is the spring that pushes the touch pad back out after you push it in.   It is used on the 20, 30, 60 and 80 Series Panic Hardware.

Sargent part # 68-0236

American Exit Device 60 Series and Dorma 8000 Series Dogging Assembly

This is the assembly that keeps the latch bolt retracted when the hex key is tightened.

The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction.  This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The International Door Closer 8051-TP Series is an ideal replacement closer for just about any Store Front Door. We recommend this closer because it will fit any size door, and you can adjust the spring tension to make it easier for the elderly, smaller children and the handicapped. The 8051 will work in interior or exterior doors, and will meet ADA codes.  This door closer will work on a Right or Left Hand Door, Push or Pull side or Top Jamb mounting, it ships with a parallel arm bracket, arm and mounting screws along with a full plastic cover.   We ship the 8051-TP DU or 8051-TP AL depending on the color you choose.  Length of Closer is 9-3/4”, Horizontal Mounting Holes 9-1/16”, Vertical Mounting Holes 3/4”, overall height is 4-21/32” with height of l1-21/32”, and projects  2-29/32” from the door face.    The 4 adjustment valves are Closing and Latching Speed, Power and Back Check.

Doromatic Exit Device 2090 Retractor Retaining Ring

Keeps the Retractor in place.

Doromatic part # RRING.102

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

The Cal Royal GLS7700 Rim Device is for use on Aluminum Framed Glass Doors when the Stile width is 1-3/4 inch or more.  The exit device ships with wood and machine screws, along with the Strike plate.  The stainless steel latch bolt has a 3/4 inch throw. This device is a Grade 1, which is the heaviest duty rating.

Monarch 19-V Exit Device

Hand: Field reversible.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Top stainless steel 3⁄4" throw. Bottom square bolt 1⁄2" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 13⁄4" thick, wood or metal.
Narrow Stile Doors: To 1-3⁄4" N.S. aluminum. With control trim–2-1⁄4" min. stile.
Projection: 2-1⁄2" max., 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

Doromatic 1490 PB56 Lift Bracket

7-1/2" x 1" wide

Doromatic part # PB56 or 4270106796

The Von Duprin Dogging Hook 090044 is the piece that grabs the push bar mechanism and keeps it in the dogged position.  The does wear out, but it takes a long time.  This piece is used on the 22, 33A, 35A, 98 and 99 series devices made after 1997.  We sell this part individually and it is #5 on the diagram.

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Detex EAX-500 Battery Powered Door Exit Alarm

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Mortise cylinder sold separately
Uses a standard 9 volt battery

Detex EAX-500 Installation Instructions

Cal Royal 2000 and 5000 Knob Trim

The Von Duprin Panic Device 230NL Trim is for use with the 22 Rim and 2227 Surface Vertical Road devices.  The key locks and unlocks the panic bar. The plate measures 3" wide by 12-1/16" high and has a plate thickness of 3/32".

DORMA 8300 Series Exit Devices minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. Package includes all the mounting screws and brackets, and the surface strike.  5 year limited warranty.

The Door Push Plate 89 is drop forged plate that is .125" thick, and is made of Aluminum, Stainless Steel, Bronze or Brass, depending on the finish.  The plate measures 3-1/2" wide by 15-3/4" long with a 1" projection.  This plate is considered a combination push pull plate.    Package ships with matching mounting screws.

Finishes

Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16

Falcon Doromatic 1690, 1790, and 2390 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door for the inside or with a key on the outside.  The KIT.1197 comes complete with mounting screws.   Some of the earlier version where riveted into the rail, so you might need to drill out the rivets, the screws shipped with KIT.1197 have self tapping thread forming screws.

Doromatic part # KIT.1197

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

When Less All Parts is selected only the Cylinder is shipped, just the replacement hydraulic cylinder will be shipped

The Door Push Plate 58 is the only plate we have that is a forged plate.  The forging process involves heat and pressure or pounding.  The result is a very heavy and durable metal.  This plate measures 3-1/2" wide by 15" tall, with a thickness of 7/32".  This is one of the thickest plate we offer, and is the most sturdy.

Finishes

The Barracuda DSO-PB is for use on Out Swinging 36" Doors with Exit Devices.  It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the mounting cleat with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The International Door Closer 9001-TP Series is a relatively newer closer.  This closer features fully adjustable spring tension, closing and latching speeds and back check.  The narrow design allows for mounting on the top jamb of store front doors without a drop plate.  The closer is non handed, and can be mounted on the push, pull  or top jamb positions.  It meets all ADA requirements and is a Grade 1 closer, the heaviest rating possible.

3/4" X 11-3/32" Hole Spacing

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

The International Door Closer 44CI Adjustable Spring Power is one of there heaver duty closers.   It is designed to line up with the LCN 4040 hole spacing at more than half the price.  It features a rugged cast iron body with a forged steel arm.  It also uses all weather fluid, is non handed and is non sized, meaning you can adjust the door for any size door.  The door closer we are selling here come with a regular arm and parallel arm bracket, so the closer can be mounted on the left or right, push, pull or top jamp.  The closer has 4 adjustments, closing, latching, and back check valves, a long with a spring power adjustment.

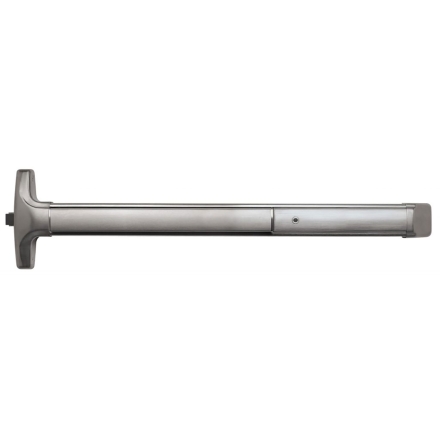

The Detex 40 Series rim exit device is a supper heavy duty panic device for use on narrow stile doors. Device features an angled end cap to deflect damage away from the unit. This device is designed for years of trouble free service in high use, high abuse enviroments.
