Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Monarch 914KIL-KD Panic Device Lever Trim

The 914KIL Lever Trim is for use on the Monarch / Falcon 19 Series.  This lever trim is shipped with a standard Schlage C Keyway, that are keyed different if you are ordering multiple levers.  The key locks and unlocks the Lever handle.

Monarch Falcon Part # 914KIL-KD

Von Duprin Exit Device Lever Trim Shear Pin Kit

This is the component that is designed to break, if the lever handle is forced to open , this pin snaps so your trim is not destroyed. 3/16" diameter shaft by 5/8" overall length. Retaining Ring included. This shear pin is used on the 230L, 360L, 992L, 994L and 996L Von Duprin Lever Trims.

Von Duprin Part # 050611 Old Part # 971583

The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin Panic Device 990NL Trim is known as a Night Latch Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  The key locks and unlocks the interior exit device.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990NL-R&V.  The key cylinder is sold separately.

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

The Command Access MLRK1-JAC12 Motorized Latch Retraction Kit With REX is for use on the Jackson CRL 1285 and 1295 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes:  1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).

The MLRK1-JAC12 is a cost-effective and straightforward way to upgrade your Jackson 12, Kawneer 16/17 and PD16 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The Von Duprin Panic Device 880NL Trim is for the 88 Series only.   The stanchions welded on the back of the plate line up with the88 device on the interior.  Optional key cylinder locks and unlocks the device, and can be used for dogging the door open.  Plate measures 3" wide by 14-3/16" long, with an 1-5/8" bore for cylinder.

Von Duprin part # 880NL-R

The Von Duprin Panic Device 230L Lever Trim will work on the 22 and 2227 series exit devices.  In 2008 this lever was redesigned and went from a key in the lever to the new style which has the key above the lever.  The plate measures 3" wide by 6-3/8" high and is 15/16" thick.  This lever only comes in sprayed aluminum or dark bronze.  We also have replacement parts for this particular trim piece in stock, email  us under the contact tab at the top of the page.

Cylinder not included

Installation Instructions

Monarch / Falcon 25-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

Hand: Non-handed.
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
US32 (629); US32D (630); US28 (628), 313AN.
Strikes: 299 strike standard.
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out..
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-3⁄4" maximum, 2" dogged.
Mounting Height: 40-1⁄4" from CL to finished floor.
Fasteners: All mounting screws are concealed, sheet metal screws and machine
screws standard.
ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

International 8610S Rim Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices.  The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color.  This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

Replacement Cal-Royal 9800 End Cap and Bracket.   Includes mounting screws.

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin Panic Device 230TP Trim is for use on the 22 and 2227 series only.  The key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 12-1/16" with a plate thickness of 3/32".

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

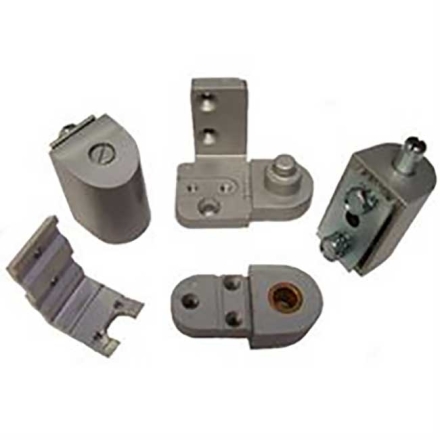

The TH1300 YKK Offset Pivot Hinge Set is found on YKK Aluminum Framed Storefront Doors.

International 7300 Rim Device

Modern flat touch bar Rim Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

The Detex ECL-230D Alarmed Exit Device is a battery operated, rugged deadbolt panic device. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm.  Rim Cylinder is not included.

If you have a door that requires Panic Hardware, then use the ECL-230D-PH

DORMA 9300 Series Exit Devices minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. Package includes all the mounting screws and brackets, and the surface strike.  5 year limited warranty.

Kawneer Style Intermediate TH1121 Hinge

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.

International 8630S Surface Vertical Rod Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

For doors 29" to 36" wide order the Size 30 to 36"
For doors 36" to 48" wide order the Size 48"

The Detex ECL-230D-PH Alarmed Exit Device is a battery operated, rugged deadbolt panic device, and is UL-Listed Panic Hardware for 36" to 48" doors. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force, and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm. Rim Cylinder is not included.

Hold Open Cushion Arm for the CRL PR90, Cal-Royal CR441 and International 44CI door closers.  For use in parallel arm applications only, T Handle locks the door in the open position.

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

Reinforcing Pivot Hinge - For use with 4-1/2" wide butt hinges

3/4" to center line of 4-1/2" hinge pin.
Pin uses large pin and bushing.
Used to dampen vibration and increase
strength to your full mortise butt hinges.
Constructed of heavy duty cold rolled steel.
Made of Zinc Plated Steel
Supports weights up to 300 lbs

Manufacturer part # B1923
Our part # DR1923 for Right Hand, DL1923 for Left Hand

These hinges are no longer handed, you can select right or left, but the hinges will work both ways.

Falcon / Dor-o-Matic EL1790 Panic Device

The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp, 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

The Von Duprin Panic Device 880TP Trim is for the 88 series only.  The stanchions welded on the back line up with the 88 device on the interior.  The optional key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 14-3/16" long with an 1-5/8" bore hole for cylinder.

Von Duprin part # 880TP-R

Straightens bent full mortise hinges. Slide cylinder over the butt of the hinge and rotate. Extra long handle provides the torque to bring the hinge back inline. t measures 19-1/2" long, with barrels on each end of 3/4" and 1" diameters.

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond desired opening
degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

Yale 1500 Exit Device

1500-36 For openings up to 36" (0.91m) wide.
1500-48 For openings up to 48" (1.22m) wide.
Strikes 799 Rim Strike (Single Doors)
Stile Minimum Stile width: 4-1/2" (114mm)
Hand Field Reversible

Sargent Exit Device 8800 Chassis Assembly

Chassis for devices after 2/5/2001. Used on the 8804, 8806, 8810, 8813, 8815, 8840, 8843, 8844, 8846, and 8888 Sargent Exit Hardware Devices.

Sargent Part # 68-4261
