Norton / Yale Door Closer Arm Shoe Assembly

Replacement Shoe Assembly for Norton 1600, 9300, 7500 and 8000 series door closers. And Yale 50, 2300, 8000 and 4400 series.
Base measures 11/16" x 2-1/4" with 1-3/4" center to center screw hole mounting. Bracket projects out 15/16". The pin is 3/8" diameter.

Norton part # 7701AS or a Yale # 400-AS

Old Norton Part # 1620AS

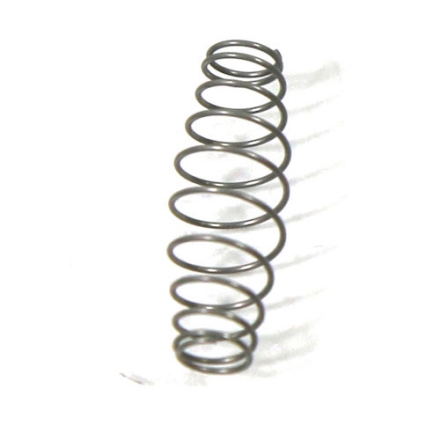

Dor-o-matic 1390 PB43 Spring

The Dor-o-matic 1390 Spring PB43 is also known as Part # 4270106635.   This spring was used on the obsolete 1390 exit device to push out the touch pad.  Spring measures 15/16" long by 5/16" by 3/8".

Detex Advantex 10 Series Rim Device

The Detex 10 Series is a Super-Heavy-Duty panic device, built to with stand 1,000,000 cycles, twice the standard for Grade 1 rated devices.  Designed for high-use and high-abuse environments.  Non Handed with 1/4 turn hex dogging.

The Detex D Lever Trim is used on the 10, 20, 21 and 27 Series exit devices. The D Lever is designed to be as heavy duty as their exit devices. It features a break-away lever to prevent damage. The escutcheon measures 2-3/4 x 9-1/16 inches, with a plate thickness of 7/8 inch. We ship the classroom function, which locks and unlocks the lever.

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA

The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.

Doromatic part # BRKTASY.107 or PB338

Dor-o-Matic 1690 Repair Parts Breakdown

Sargent 3828 Series Exit Device

The 3828 is a rugged exit device in a rim design. The 3828 Non Configured Rim Exit Device has 7 functions, 4 available trims and is easy to mix and match the device and trim. Aluminum finish only.

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

The LCN Head and Tube 78H and 78HL comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8".  The head and tube usually breaks where the cast ring attaches to the tube.  This part usually goes by the part number 4040-78H, 4040-78HL, 4040XP-78H, 4040XP-78HL, 1260-78H, 1260-78HL, ect.,.

Detex EAX-300 Battery Powered Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

Back to Back mounted handles constructed of 3/4 inch round stock.  One handle will be threaded and the other will have a stud mounting that is secured by a set screw. The connecting stud is for 1-3/4 inch thick doors, if you door is a different thickness let us know in the Comments Section of the Check out process, or email us.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The LCN Door Closer Hold Open Head And Tube 3048 - 3048L.  As the arm rotates the pivot point threads close on to the mounting bracket face and create a friction catch.  If yours is new, try rotating the mounting plate 180 degrees so the threads tighten as it closes. This replacement part from LCN either breaks or wears out.   The material some times wears out due to the friction of open and closing.  But the biggest issue seems to be the point where the tube mounts to the cast iron connector.

Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

Dor-o-Matic 1590 NL Cam Assembly

Doromatic part # 4270107283

No longer Manufactured

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

NO LONGER AVAILABLE

Dor-o-Matic 1490 NL Cam Assembly

Doromatic Part # 4270107268

Parts Break Down

Dor-o-Matic 1790 Drive Bushing, needed to use the optional key cylinder.

Doromatic part # CAMASY.101 or PB319

Dor-o-Matic 1490/1590 Dogging Clip

Doromatic part # 971659-79 PB223

Dor-o-Matic 1690 Falcon Center Case Cover Kit

Color: Black

Doromatic part # COVER.113 or PB313

Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

Dor-o-matic 2090 Retractor. This piece retracts the latchbolt when the key is turned. The retractor measures 7/8" diameter by 5/16" gear height. Flange projects up 5/8".

Doromatic part # RETRACT.102

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

The Ives Roller Bumper Straight Arm 4" RB471 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 4-1/2" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB4 or GJRB4.

The Dor-o-Matic 2090 Backplate Assembly PB89 has been around since the early 1970's.  It is now called the Falcon 2090 Back Plate Sub Assembly, but it is the same thing, just different owners of the company.  This piece includes the plate casting, latch bolt, pinion gear, and retractor.

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

LEFT HAND BACKPLATE SHOWN

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of aluminum

screw not included
