The Jackson Exit Device Rod and Case Assembly is used on 7' doors for the models 1085, 1285 and 2086 devices.

Jackson part # 30915J

Cal Royal 5000 Rim Device

Grade 2
Heavy gauge steel construction, powder coated Aluminum color

Cal Royal 2000 Series Exit Device Lever Trim

Non-handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For
1¾” and 2 ¼” doors. Prefix THI before part # for 2 ¼” door
thickness. Available for fire and non fire rated rim and
vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”.

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

Jackson Exit Device 1285/1295 Dogging Assembly

Package includes 4 screws, bracket and dogging bracket. Uses 1/8" dog key, our part # 88R6018

Jackson part # 30-2670

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

The Von Duprin 3348/9948 Bottom Latch Kit 050495 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces previous versions of the 33/3548 and 98/9948 bottom latches.

Von Duprin Part # 050495
Von Duprin Old Part # 112907

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

The Von Duprin QEL Baseplate Conversion Kit is for use on the 33A, 35A, 98, and 99 exit devices. The size is the size of the exit device.  The 98/99 device 36" would be 33" wide device and the 48" would be for the 45" device.  The 33A/35A the 36" would be for the 35-3/8" wide device and the 48" would be for the 47-3/8" wide device.

Von Duprin Part # 958003 3' Device
Von Durpin Part # 040065 4' Device

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

Doromatic Exit Device 2090 Retractor Retaining Ring

Keeps the Retractor in place.

Doromatic part # RRING.102

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

Von Duprin 33/35/98/99 push bar stock absorbers. This is the piece that makes these Von Duprin exit devices one of the quietest devices made.

Von Duprin Part # 050491

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Jackson Exit Device 2085 Dogging Assembly RH/LHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2467

This spring would be for the Device on the Left, shown below.

Floor Door Stop Dome 1-3/8" FS438

We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

Sargent Exit Device 80 Series Plastic End Cap

This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

Sargent Part # 68-0561

The Von Duprin 8827 Bottom Latch Case 050461 is used on all Von Duprin 8827 non fire rated exits.  A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

Yale 7000 Exit Device Dogging Assembly

Dogging assembly uses a 5/32" dog key

Yale Part # 60-7000-406-999
Sometimes call the 60-7000-0406-048

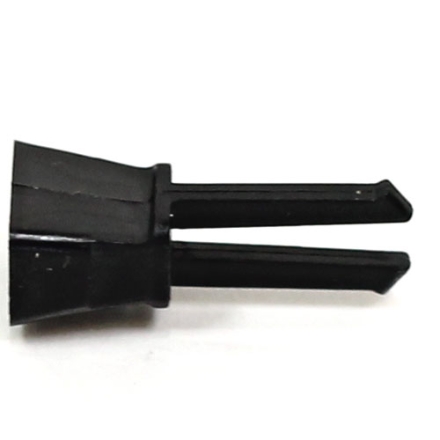

The Von Duprin Tail Piece Guide Lead Kit Package Of 10 - 050156 is used to guide rim cylinder tail piece into the back of the Von Duprin 22, 33A, 98, and 99 exit devices.  We sell these in bags of 10 pieces.

Slot is 5/16" x 3/16" x 1" long
Von Duprin Part # 050156

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960

Yale 793 Strike for 2100 and 7100 Devices

Used on the Yale 7100 and 2100 Series Rim Exit Devices.  Optional strike for double door applications without a mullion.

Yale Part # 793

Concealed Top Latch for the ED5800 exit device.  Corbin Russwin part number 650F718.

Von Duprin Exit Device 994/996 Hex Stud

This is the Hex Stud used on the Von Duprin 994/996 Lever Trim. The threads are 1/4-20 on the male side. Overall lenght is 2"

Von Duprin Part # 971585

The Von Duprin 22 Panic Only 22EO is part of the economy series.   Even though is it the least expensive Von Duprin, it is still a very heavy duty panic device.  It is for all types of single and double doors with mullion, for door stiles as narrow as 3-13/16”.   All 22 Series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, Grade 1.  The Von Duprin 22 ships with the 299 standard strike, dog key, and all of the needed mounting fasteners.  Even though it is the least expensive, they offer all the replacement parts, just like there other models.  We stock all of the replacement parts Von Duprin has to offer on the 22 and 2227 series.
We keep the 36” devices in stock in the SP28 Sprayed Aluminum and SP313 Sprayed Dark Brown in stock.
Von Duprin Part # 22EO

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

Von Duprin 9927 Latch Covers.

This cover is used on the 2227, 3327A, 3427A, 9827 and 9927 Exit Devices. Replace old bent and worn covers with brand new ones.

Includes mounting screws

Von Duprin Part # 050566

Other finishes are available

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Von Duprin 88 Hinge Case Spring

Used on all Von Duprin 88, 8847, 8827 and 8827 Exit Devices. 4-1/2" long x 5/16" diameter.

Von Duprin Part # 090080

Adams Rite 91-0897-01 RX Monitor Single Switch is a retrofit kit for all the 3000/8000 exit devices.  The switch has 3 wires to connect to your system.

Adams Rite Part # 91-0897-01

Adams Rite 91-0897-02 RX Monitor Dual Switch is a retrofit kit for all the 3000/8000 exit devices.  The switch has 6 wires to connect to your system.

Adams Rite Part # 91-0897-02

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440
