Yale 790 Bottom Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Bottom Strike.

Yale Part # 790

The Ives Wall Door Stop / Holder WS40 is a door holder that has some history.  We see this product in many schools, hospitals and churches that were built in the 50's, 60's and 70's.   The WS40 was originally made and designed by Glynn-Johnson out of Chicago, Illinois, and was called the W40 or GJW40.   H.B. Ives purchased Glynn-Johnson in 1990's and mergered this product into there offering, and changed the part # to WS40.  The holder is made of cast brass or bronze and plated to your desired finish.  The holding mechanism has a rubber bumper inside it to act as a door stop, and a brass spring loaded roller to act as a holder.   The product ships with a universal screw package to mount on all types of walls.   For the best results with this stop/holder the door and wall should be about 3-1/2" apart in the open position.

Base Height: 2"
Base Width: 2-1/2"
Base Projection: 2-1/4"
Engaged Projection: 3-1/2"
Strike Height: 2-1/16"
Strike Width: 3/4"
Strike Projection: 2"

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

The Adams Rite 41-0131-119 Metal End Cap Assembly is used on the Latching Side of the device. It is used on the P8700 and P8800 Narrow Stile Pullman Exit Device.

The Jackson Door Closer Center hung Arm - 20-400B is used with the 20-330 door closer.  This arm is for use with double acting, center hung doors.  The arm measures 10" long by a 1-1/2" wide and 1/2" thick.

Jackson Part # 20-400B

The Von Duprin 050400 Top Latch is used on the 2227, 3327A, 3427A, 9827 and 9927 exit devices. It is used the Fire-Rated along with the standard Panic Devices.  The 050400 is sold without the the Mounting Bracket, if you need the Mounting Bracket you can order the 050546, or order the G99VR10 (050091) which will come with the Bracket. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050400

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Yale 791 Top Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Top Strike.  This is the same strike as the Corbin Russwin 650F54 or 650F54-8.  This strike no longer uses a roller.

Yale Part # 791

Dorma Conversion Plate BP86C

use this plate with the 8616 to convert the old style 7601 and 7801. By using this plate you will not have to redrill holes

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

The Dorma 8812 Offset Slide Arm for RTS88 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.  The track measures 13" long by 1-3/16" wide by 7/16" thick.   This is the arm you probably have if you are using 3/4" offset hinges or 4-1/2" wide butt hinges.

Dorma Part # 8812

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

The Hub Position for the ED4200

Detex EC1 Advantex End Cap 101642

Stamped Stainless Steel or Bronze depending on the finish selected.  Used the Advantex Series of Detex Exit Devices.

Cataloge Number EC1 or 101642

The Adams Rite EL8600 Solenoid 31-0833-IP is used on their Concealed Vertical Rod.  It uses 28 VDC.  If your Solenoid is Red or White, then you would need the EL8800 Solenoid.

The Falcon Monarch 8500NL is used on the 25-M exit devices, and was used on the Monarch 18-M and XX-M exit devices.

The Dorma 8835 Top Arm for RTS88 is for use on Double or Single Acting doors that have a 1" top rail.  This arm is used on aluminum framed glass storefront doors. The arm is 10-7/8" long and 1-3/8" wide.  The spindle lug 1" thick.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

The Von Duprin 900620 35/3348 98/9947 Adjusting Screw Package is used to adjust the concealed vertical rods.  This package is used on the 3347, 3547, 3347-F, 3547-F, 9847, 9847-F, 9947 and 9947-F.   This is a package of 2.

Von Duprin Part # 900620
Old Part # 109811

Corbin Russwin ED5200 Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for non fire rated doors. For fire rated doors, order the G650F36-8. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F35-8

Rim Cylinder Hub Position for the ED5200

The Panic Hex Key 3/16" is used on some of the Corbin Russwin panic hardware.  The key measure 3/16" hex by 2-1/4" long.  At this point we do not know of any other manufacture that uses this size key.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key.

Yale 7110 Latch Cover 60-7010-7040

This latch cover is used on the Yale 7110 Surface Vertical Rod Device.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Yale Part # 60-7010-7040

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

Corbin Russwin 650F738 Upper Latch used on the ED4800 Narrow Stile Concealed Vertical Rod devices.

The Yale 7000 and Corbin Russwin ED4000/ED5000 Cylinder Dogging Sub Assembly is used on non Fire Rated Yale and Corbin Russwin panic devices.   Like the Hex Key Sub Assembly, this one is for use with a Key Cylinder.

Yale Part # 60-7000-0407-999
Corbin Russwin Part # 650F968

Jackson Exit Device 2085 Dogging Assembly RH/LHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2467

This spring would be for the Device on the Left, shown below.

The LCN 4040SE-3077T Sentronic Door Closer Arm is only for use with the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

The Adams Rite 4581 Universal Cam is used on the 4500 and 4700 Dead Latches.  The handing is easily switched between Right Hand and Left Hand. We ship the 4581-01 Cam for the 1-3/4" thick doors, if your door is more thick, please email us for a price quote.

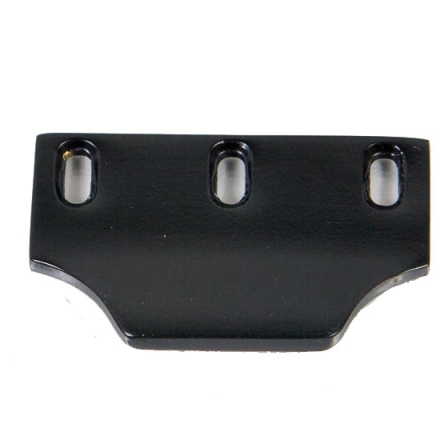

Falcon Dor-O-Matic STK45 Surface Strike

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

Reinforcing Pivot Hinge 4" - for use with a 4" wide butt hinge

1/2" to center line of 4" hinge.
Used to strengthen and reduce vibration
to your current full mortise butt hinges.
Made of Zinc Plated Steel

These hinges are not longer handed. Please select hand when checking out, until our system is updated.

Falcon 24 / 25 Series 650294 Channel End Cap Kit

This end cap is used on the Falcon 24 and 25 series devices.  Used to go by then number 600270, but the factory is now using the number 650294.  Includes bracket, screws and end cap.

Falcon Part # 650294

The Dorma Surface Vertical Rod Top Strike 426 is used on the 8400, 8400F, 9400 and 9400F devices. Shims and mounting screws included.

The Doromatic 2390 Anchor Block Assembly is used to connect the push bar to the device channel.

Discontinued December 2024

The Von Duprin Panic Device Keyed Mullion Retrofit Kit KR54 is used to convert the 1654 and 4954.  Keyed Removable Steel Mullions makes removal faster and easier by a single operation of the mortise cylinder. Once mullion is removed, large equipment or furniture can freely pass through the opening. The unit will self lock when re-installed, without use of the cylinder key. Uses a 1-1/4´´mortise cylinder with a straight cam (Schlage cam reference B502-191). Cylinders are sold separately.

Von Duprin Part # 050168

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520
