Jackson Exit Device 2085 Dogging Assembly LH/RHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2462

This spring would be for the Device on the Right, shown below.

The 4590 Deadlatch Paddle is constructed of extruded aluminum and anodized to clear 628, dark bronze 313 or black 335. The Paddle is available in four modes, Push to Left, Push to Right, Pull to Left, and Pull to Right. The latches on our website are for 1-3/4 inch thick doors, email us if your door is more thick. This product is for use with the 4500/4700/4900 Deadlatches.

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

The International 8600 Dogging Assembly is used on the 8510S, 8710S, 8610S, 8810S, 8501S, 8710S, and many more.

The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997.  The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

Von Duprin Part # 050709
Old Part # 050153

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

Von Duprin 8827 Bottom Vertical Rod Assembly

This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector. The rod is 31-7/8 inches long, excluding the rod connector.

Von Duprin Part #050455
Old Part #101777 and 103234

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

The Falcon 600293 E Trim Solenoid PKG is used on the 25 Series Electrified Lever Trim.  The unit can be used for Fail Safe or Fail Secure applications, depending on how the unit is installed.  The piece measures 3/4" diameter by 1-1/2" long, with a 3/4" hole spacing.  We sometimes find the numbers 661375-00 and 610306-00 on a stick on this piece.  The package ships with two mounting screws.   This unit is called the FSA/FSE Solenoid Kit on their parts breakdowns and in their price book.  The Falcon/Monarch part number is 600293.

Yale 757F Strike for 7100F and 2100F Devices

Used on the Yale 7100F, 7150F, 7200ME and the 2100F Exit Devices.  Furnished in a Black Finish.

Yale Part # 757F

The Sargent Regular Arm 25-O is now used on all of there commercial grade closers.   This is the standard arm shipped with about 90 percent of there closers.  This arm is for use with the 350, 1430, and 281 closers, and will work on the 1230 and 1250 models also.

Sargent Part # 25-0

Rim Cylinder

Standard Rim Cylinder for use on Rim Cylinder activated exit and panic devices.

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

The Adams Rite 31-0964 is used on the 3500, 8600, 8675 and 4781 Devices. The assembly comes with the nylon bushing.

The Von Duprin 9927 Top Latch 050091 used on all the Von Duprin 9827 and 9927's. Replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050400.  This is usually the problem if your bottom rod is dragging on the floor. Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

The Von Duprin 2227 Latch Covers 050566 is used on the top and bottom latches.  Package includes mounting screws

Von Duprin part # 050566

This Von Duprin Panic Device 7500 Mortise Body Only is used on the Von Durprin 8875, and Von Duprin 98-9975 panic hardware. The body measures 5-7/8" high by 4-1/2" deep and 1" thick. This is the body that has been used since about 1977.

Call or email for pricing on the SS7500, 7500-IN, and E7500 Mortise Bodies and replacement parts for the Lock.

We ship the 7500 in US32D, brushed stainless steel.

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This Lever Trim is now reversible.   To change the hand all you have to do is remove the shear pin, rotate the handle and reinsert the shear pin.

Dor-o-Matic 1790 Drive Bushing, needed to use the optional key cylinder.

Doromatic part # CAMASY.101 or PB319

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

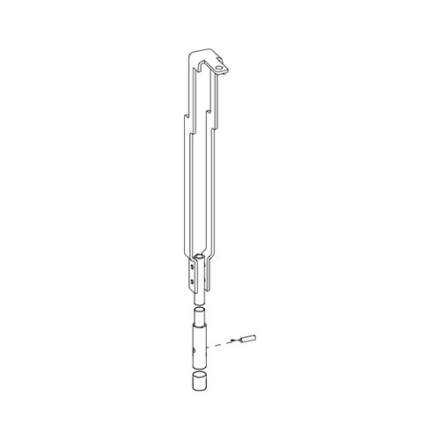

Von Duprin 050575 98/9947 Adjustable Bottom Rod

Von Duprin 050575 98/9947 Adjustable Bottom Rod.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050575
Old Part #112342

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

The Corbin Russwin 650F30 Rim Strike for ED5200(A) is for use on there Fire Rated Panic Hardware.  Manufacture part # 650F30-8

The Sargent 655 Bottom Surface Strike is for use the 20, 30, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike measures 1-13/16" x 2-3/4" x 3/32" thick.

Sargent Part #655

The Von Duprin Old Style Dogging Shaft was used on devices manufactured before July 1997.  The Shaft measures roughly 1-1/2" long with a 1/2" diameter.  The hex is 5/32".

Von Duprin Part # 968112

The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only.  The Rim device is one that has a latch bolt sticking out of the housing.

Von Duprin Part # 090050 or 090022

Von Duprin Push Bar Guide 090049

Fits on the end of the push bar assembly, reduces noise and friction. Used on the Von Duprin 33A, and 99 / 98's

Von Duprin Part # 090049
Old Von Duprin Part # 971993

Detex EAX-300 Battery Powered Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

The Dorma 9DRKIT Dogging Assembly is used on the 5000 and 9000 Series non Fire Rated hardware.

Yale Upper Latch 60-7220-0066-048 for use on the 7220 Narrow Stile Concealed Vertical Rod.

The Falcon 712L Lever Trim is used for the XX-C, 18-C, and all 24 Series Falcon Devices.  The XX-C and 18-C are the obsolete concealed vertical rod Monarch Exit Devices. The Trim is non handed or field reversible. The Key locks or unlocks the Lever. The escutcheon measures 1-3/4" wide and 7-1/4" long.

Corbin Russwin 33L OEM Spindle 499F83-8

This Corbin Russwin Spindle is used on there Mortise Lock Lever Trim.

Corbin Russwin part # 499F83-8

For use on commercial applications.
• Exceeds OSHA and BHMA strength test requirements.
• Packed with square head iron lag screw, expansion shield and screws.
• Cast Aluminum construction.

Dimensions
Base Diameter: 3-1/8"
Base to Rail Center: 3-1/8"

The Norton 7700AS Arm Stud is for use on the 7700PT Power Track Closers.  The stud connects the arm to the slider (7700SLD) and is held in place by the Retaining Ring (7700ASR).   This piece is approximately 1" long.

The Von Duprin 050508 88TP-F Cylinder Cam Package is the piece that the key cylinder fits into on the back of the exit device.   This piece is only used with the 880TP outside trim on the Rim Devices.
