Falcon/Monarch 19 Series Hex Dogging Assembly and Cover have been changed.  As of April 12, 2022 the kit now includes a new style dogging assembly also.

We know this kit will work on the 19/24/25 Series, and are not sure if it will work on the Monarch 17/18 Series Dogging Cover goes over the dogging mechanism on the hinge side of the exit device. Sometimes when the end cap goes missing, this cover plate also disappears.

Monarch old part #s 195 and 194
Monarch/Falcon new part #'s 650297 and 650303

Size is the width of the Device, a 36 inch device is usally only 32 inches wide, a 48 inch device is usually about 42 inches wide.

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

Sargent 80 Series Lexan Touch Pad Kit

Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

Sargent Part # 809 KIT

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

Grade 1 Exit Device
Device is non handed
Standard sizes are 30", 36", 42" or 48"
Minimum stile width is 2"

Replacement parts are also available

The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes.   The strike has been manufactured since the 1970's.  This part is also known as a Kawneer 133479 strike.  The strike ships with mounting screws in a painted black finish.   This style of strike is also known as a Blade Strike.

Doromatic Falcon Part # TD35 or 4270107393

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw.  I would recommend the D100, Panic Bar Retainer, for dogging down your device.

Von Duprin 88 dog screw 14 threads per inch

Von Duprin Part # 090083

8" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 7-3/8" to the Floor when mounted.

 Made by Grand Specialties 608z

12" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed rubber shoe can be adjusted down as the rubber shoe wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 11-3/8" to the Floor when mounted.

 Made by Grand Specialties in USA Part # 612z

Falcon 3788 Top Latch Strike

The Falcon 3788 Top Latch Strike is used on the 18-V, 19-V, 24-V, 25-V and XX-V panic and fire rated devices.

Falcon Part # 3788

Yale 793 Strike for 2100 and 7100 Devices

Used on the Yale 7100 and 2100 Series Rim Exit Devices.  Optional strike for double door applications without a mullion.

Yale Part # 793

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

The Von Duprin 88 Spring Stop Assembly 050451 is the piece that holds the hinge case spring in place. It is used on all of the Von Duprin 88 models.

Von Duprin Part # 050451
Old Part #107682

The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only.  The Rim device is one that has a latch bolt sticking out of the housing.

Von Duprin Part # 090050 or 090022

The LCN Sentronic Overhead Concealed Door Closer 3130SE is shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

The Corbin Russwin ED4000/5000 Rim Strike 650F29 is used on the ED4200 and ED5200 Rim Panic Hardware.  A Rim device is an exit device that has the latch bolt protruding from the center case.

Corbin Russwin part # 650F29

LCN Door Closer 4111 HCUSH Hold Open

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

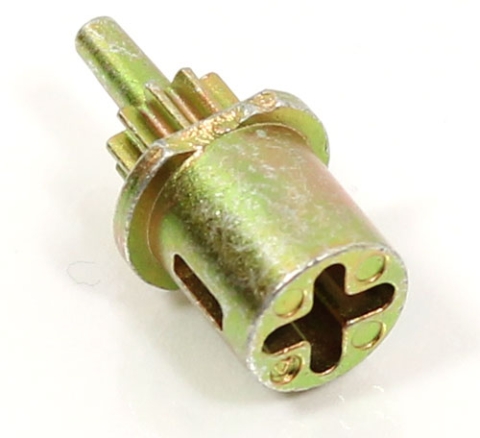

The Dor-O-Matic 1690/1790/1990/2090 Pinion PB5 has been in use since the 1970's.  This gear or pinion is what activates the latch or the rods on the 990, 1090, 1690, 1790, 1990 and 2090 devices.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are the same device, with the same parts, just a different name plate.  The manufacture part number on this is CAM.102, PB5 or PB140.

1690 parts breakdown

1790 parts breakdown

1990 parts breakdown

2090 parts breakdown

The Panic Hex Key 7/32" is used on Dor-O-Matic Falcon and Sargent Panic Hardware to name a few.  The key measures 7/32" hex by 3-1/4" long.   Also known as a Hex Key, Dog Key, Allen Key or Dogging Key.

The Adams Rite P8800 is the same device as the 8800 Star Wheel exit device, except it has a Pullman Latch, which is more popular.  Push bar Length Standard sizes: dimensioned for 30, 36, 42, and 48 inch openings. Standard width bars can be field cut to the next smallest opening width.

The LCN 1250 Rw/PA Door Closer is a direct replacement for the Norton 1600, Yale 50, Falcon/Dor-o-Matic SC60, LCN 1260 and International 8050 Series Door Closers.  It is  ideal for low frequency and low abusive traffic areas, such as store front doors and interior doors.  It features, a cast aluminum cylinder, 15 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.
Hole Spacing 3/4” x 9-16”

6" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 5-3/8" to the Floor when mounted.

Made by Grand Specialties 606z and 606br
606BR is not longer manufactured

10" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 9-3/8" to the Floor when mounted.

 Made by Grand Specialties 610z

The Detex 40 Series rim exit device is a supper heavy duty panic device for use on narrow stile doors. Device features an angled end cap to deflect damage away from the unit. This device is designed for years of trouble free service in high use, high abuse enviroments.

Grade 1 exit device
Device is non handed
Standard widths are 30", 36", 42" or 48"
3-3/4" minimum stile width

Replacement parts are also available

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

Monarch Falcon 060110 Dogging Pin Package

Used on the Monarch 17,18 and 19 Series Panic Devices.  Pin measures 9/16" overall length with a 5/16" diameter head and 3/16" diameter shaft.  Sold as a package of 10.

Monarch Part # 060110
Old Part # 4086

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

Dor-o-Matic 1690, 1790 and 2390 Dogging Spring

Doromatic part # 971493-76 or PB323

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Dor-o-matic 1090/2090 Assembly Plate.   This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

4" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 3-3/8" to the Floor when mounted.

American Exit Device 60 Series and Dorma 8000 Series Dogging Assembly

This is the assembly that keeps the latch bolt retracted when the hex key is tightened.

The Adams Rite EL8800 Solenoid is the mechanism that retracts, or in this case turns the wheel to unlock the panic device.  There are two versions one for 12 volt systems 31-0735-IP, and the 24 volt system 31-0736-IP.

The 12 Volt Solenoid is wrapped in red tape, the 24 volt is wrapped in white tape.
