The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Von Duprin 050023 98/9975-F Center Case Kit

The Von Duprin 050023 98/9975-F Center Case Kit less cover is used on the 9875 and 9975, Panic and Fire Rated Hardware.

Von Duprin Part # 050023

The Barracuda DSI is designed for In Swinging 36" Doors.  The user places the deive on the floor and slides the metal plates under the door.   Then pushing outward on the handles engages the plates to the exterior door jamb.   Then you simply install the locking pin to barracade the door.   The device is manufactured of heavy-duty steel that is then coated in a durable powder coat paint.   It will work on just about any door and comes in 6 different versions depending on your jamb width.   It is lightweight and comes with a storage mounting rack, along with all the the needed hardware for installation.

Barracuda Part Number
4-3/4"  DSI-2
5-3/4"  DSI-1
6-3/4"  DSI-3
7-3/4"  DSI-4
8-1/4"  DSI-5
8-3/4"  DIS-6

Yale 757F Strike for 7100F and 2100F Devices

Used on the Yale 7100F, 7150F, 7200ME and the 2100F Exit Devices.  Furnished in a Black Finish.

Yale Part # 757F

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

Floor Door Stop / Holder FS446

The Ives FS446 Door Stop and Holder is a modification of the FS444, which is the non holder version.   It is considered a manual type floor holder, because you have to manually latch the holder for it to hold the door open.  It is constructed of cast bronze or brass, and is no longer available in a cast aluminum.  It is designed for doors with up to 2-1/2" of undercut, meaning the distance between the finished floor and the bottom of the door. It measures 3-3/4" overall height with a 2-1/2" diameter, and the distance from the base to the center line of the rubber non-marring stop is 2-1/2".  This stop is packed with expansion shield and lead shield.

Yale 759 Strike for the 7250 Devices

Used on the Yale 720X Exit Devices.  The Strike measures 2" wide by 3" high and 1/2" thick. Furnished in a Black Finish.

Yale Part # 759

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The 4311HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old.  It measures 3/8" diameter by 1/2" long with 14 threads per inch.  They did have an old style that was available up to a few years ago that had 15 threads per inch.  If you have any old style I would recommend the D100 Panic Bar Retainer.

Von Duprin part # 090053

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

This Glass Patch is sold in rolls of 18 inches by 120 inches.  It is a polyester film with an adhesive back with "Warning" on it to prevent accidental injury. This is a temporary transparent patch until the Glass can be replaced.

The International Door Closer 852P Series is common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

3/4" x 7-3/8" mounting holes

The International Door Closer 851P Series is not a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.   The 851 meets the size 1 ADA requirements.

3/4" x 6-3/8" mounting holes

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

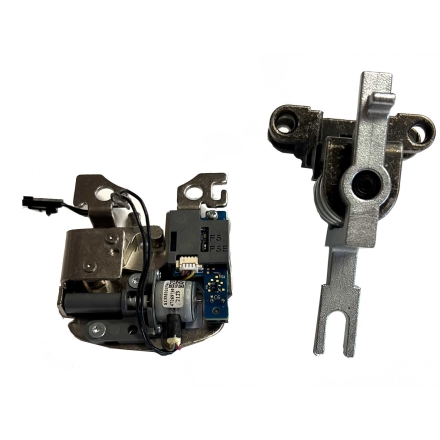

The Von Duprin 47273111 Converts the E996L to the new M996L.  The difference between the two the later is a motorized version which is more robust and draws less current.  The kit includes the M996 Motorized Module and Slider Assembly.  They are offer two version one for the Rim (Rim), Surface Vertical Rod (SVR) and Concealed Vertical Rod (CVR) Exits, and one for the Mortise Lock Exits.

The Norton Door Closer 8301 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8301/8301BF 3301/3301BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8501 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

The LCN Door Closer 4111 HEDA Hold Open is known as the Smoothee, and is one of the heaviest duty door closers made, the HEDA stands for Hold Open Extra Duty Arm.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 HEDA model, which is a hold open arm on this page. The cylinder mounting holes are 2-1/2" by 6".

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

The Corbin Russwin 650F30 Rim Strike for ED5200(A) is for use on there Fire Rated Panic Hardware.  Manufacture part # 650F30-8

The LCN Door Closer Regular Arm 3077 ships with 95 percent of there door closers.   This is the standard regular.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.  The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077,  and  4040-3077.  If your model is not here, call us and we will quote you a price.

The International Door Closer 854P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" x 9-1/16" mounting holes

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

The 855 has been discontinued.  If you order it the 885 will be sent, it is the same door closer, but features back check.

The International Door Closer 855P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 48” interior or 42” exterior doors.

3/4" x 9-1/16" mounting holes

The LCN Door Closer Cover is the standard plastic cover that ships with LCN Door Closers.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape cover on the door closer cylinder.  The part number is the Series Number followed by -72.   So, the part number would be 1460-72, 4010-72, 4020-742, 4030-72, 4040-72 and 4110-72.   We have access to all the covers, if yours is not here call us and we will quote you a price.

The International Door Closer 853P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53, that had the 3/4" x 8-3/16" mounting holes

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated
