Search results for: 'bolt type 8847 screw t door cover'

NO LONGER AVAILABLE

Dor-o-Matic 2390 Fixed Cover Screw

The Doromatic 2390 Fixed Cover Screw is the screw that holds the Fixed Cover on. The screw is a 12-14 x 1/2" long UFPH MS Type 25 Screw. This is a self tapping screw.

Doromatic / Falcon Part # SCREW.1088 or PB350

The Von Duprin 900850 Latch Cover Screw Package is used on the 22, 33, 35, 98 and 99 Series surface vertical rod latch covers.  The are sold in packages of 2 screws.

The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish.  It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection.   The throw is 1-1/4".   These are sometimes called pop-up or push down stops.   This piece will ship with matching finish mounting screws.

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

The Plunger Door Holder / Stop DH6000 is one of the most common plunger style door stops we offer.   They are constructed of a cast zinc alloy that is then electro statically painted to either an aluminum or dark brown color.   It features a non marring rubber tip that is replaceable, and we keep in stock.  The body measures approximately 7" long and is 1-5/8" wide.  The throw on this stop is 1-1/8".  These are sometimes called pop-up or push down door stops.  This product ships with the mounting screws.

Made by International Door Closer

Ives FB61P Constant Latching Flush Bolt for Wood Doors

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Ives FB458 Metal Door Flush Bolt

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

The Ives Plunger Door Holder / Stop FS1154 has been around for about 50 years.  Before the 1990's is was known as the Glynn-Johnson 1154, and when they were merged in the H.B. Ives line, the part number was changed to FS1154.  This product is constructed of cast brass or bronze that is then plated to the desired finish.  Plunger and internal parts are plated steel and provide a 1-1/4" throw for all types of doors.  Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.  The shoe is non-marring rubber that is securely fastened with a screw in flanged cup to prevent movement or loss, and when worn, shoes are easily replaced and are kept in stock as the GJ1154.  These are sometimes called pop-up or push down stops.  Ships with matching finish mounting screws.

The Door Pull Offset 1" Diameter PH-4000 is usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.  This handle projects 3-1/4", has a 2-1/4" door clearance, comes in 9", 10" and 12" centers.  One of the most popular handles we sell.

Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

Ives FB31P Automatic Flush Bolt

This fully automatic flush bolt is used on the inactive metal fire door.  When the active door is opened the latches retract, when the active door closes the latches extend.  The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set includes the top and bottom flush bolts.

3 Hour UL listed

Ives Part # FB31P

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

Von Duprin 050484 33/3527A Center Case Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050484

The Cal Royal Products 800 Door Closer is one of there newer closers.  The CR801 has a hole spacing of 3/4" x 12" and ships with either a full cover or slim cover.  The full cover will hide both spindles, were as the slim cover will not.  This closer is a Grade 1 closer, the heaviest rating possible.  The cylinder has adjustable spring tension, closing, latching and back check speeds.   It can be mounted on the push, pull or top jamb.  The CR801 will work in place of the Norton 8000 and Yale 3000 series door closers, with no new drilling.

CR801S - SLIM COVER

CR801 - FULL COVER

Ships within 24 hours from California.

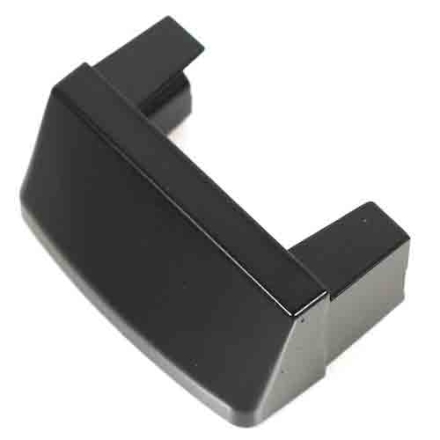

Doromatic 2390 Fixed Cover

The Doromatic 2390 Fixed Cover also known as the center case cover. The cover is 1-1/2" wide by 3-7/16" high and projects out 2 inches. The mounting screws are 3" on center.

Doromatic / Falcon Part # COVER.127 or PB341

Aluminum Store Front Door Flush Bolt FB-1202

15/16" x 4-1/4" radius face, 5-7/32" hole spacing, 1/8" offset, 5/8" throw, 12" rod length, with a square nylon tip with beveled corners fits in a 1/2" square hole.

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

The LCN Door Closer Cover is the standard plastic cover that ships with LCN Door Closers.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape cover on the door closer cylinder.  The part number is the Series Number followed by -72.   So, the part number would be 1460-72, 4010-72, 4020-742, 4030-72, 4040-72 and 4110-72.   We have access to all the covers, if yours is not here call us and we will quote you a price.

The Von Duprin 8827 Latch Covers 050464 is used on the top and bottom latches of the 8827 Panic Hardware, and the bottom latch of the 8827-F Fire Rated Hardware.  Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548

The Von Duprin 8827 050466 Top Latch And Cover is the 050460 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050466

The 598-12 or 5599-24 feature heavy duty steel construction to ensure maximum strength and security. The bolt measures 1/4 x 3/4 x 12 or 24 inches and ships with strikes and mounting screws. The finish in Brushed Chrome. This bolt is UL approved.

The SEM7800 LCN Electro Magnetic Door Holder Metal Cover is constructed of a metal die cast. This cover will work on the SEM7830, SEM7840 and SEM7850. Available in aluminum and dark bronze finishes.

LCN Part # SEM7830-72, SEM7840-72 and SEM7850-72

Sargent Door Closer Covers

Replacement Sargent Door Closer Covers, made of impact resistance plastic.  Covers are available for the 281, 350, and 1430 Door Closers.

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

The Jackson Panic Device Top Bolt Trip is for use on the 1085, 1285, and 2086 devices.  The 30-824 Trip Assembly mounts on the jamb stop and has a pin that sticks out of it (actually a threaded set screw).  The pin lines up with the release plate on the Top Bolt Guide Assembly, when the pin hits the top plate as the door closes, it releases the rods, so they can extend.

One of the problems out in industry today is vandalism.  These Yale Replacement Covers will replace your existing cracked and broken covers.  The covers are available for the 4400, 3300, and 3500 models.  They are made of impact resistance plastic.  The cover shown is for the 4400, in the aluminum finish.

Von Duprin 050073 98/9947 98/9949 98/9975 Case Cover

Cover for the Von Duprin 050022, 050029 and 050030 Center Chassis Assemblies.  Cover includes mounting bracket and screws.

Von Duprin Part # 050073

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

International Door Closer T1 Push Pull Mounting Screw is used PH-4000, PB-2000, and PP-2000.  The screw measures 2-9/16 inches long, with a 3/8 inch diameter and 18 threads per inch.
