The Cal-Royal CRCODE204 is for use with the 2200, 7700 and 9800 Rim and Surface Vertical Rod Devices. The Lever Mechanism features a Break Away Lever, for use with 1-3/4 inch to 2 inch thick doors, non-handed, Single Code User, Key Override, easy on the door code change, weather resistant, and more than 8000 non-sequential possible code combinations.

Installation and Programming Instructions

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

The Dorma 9DRKIT Dogging Assembly is used on the 5000 and 9000 Series non Fire Rated hardware.

The Cal-Royal 2000 and 9000 Dogging Assembly is used on the 2200 and 9800 Series Exit Devices which include the 2200, 2260, 9800 and 9860.  The assembly uses a 7/32 inch dog key.

The Cal Royal 7700 is for use on the 7700 Series Exit Devices. Kit features a new dogging shaft and 7/32 inch dog key.

The Heavy Duty Cal Royal CRCODE101 is for use on the 7700 and 9800 Rim and Surface Vertical Rods. This lock features Single Code with up to 8000 code combinations, weather resistant, non handed, and code can be changed without removing the lock. Comes in Brushed Chrome finish only.

Installation and Programming Instructions

The Dorma RTS88 Door Closer is an overhead concealed closer for both single and double-acting doors.  It is one of the more popular overhead concealed closers on the market today.  The RTS88 will consist of a steel cam, rollers, and springs housed in a compact cast iron body.  Closers will be capable of being installed in minimum 1-3/4" x 4" headers. RTS88 will have maximum door opening to 90º or 105º, trim conditions permitting. Sweep and latch speed will be controlled by two noncritical adjustment valves from 90º or 105º to closed. Built-in pressure relief valve will protect the closer from abuse caused by forced closing. A mechanical backcheck combined with a positive stop at 90º or 105º will be provided to protect the door and frame. The RTS88 closer will be available with hold open at 90º or 105º, or without hold open. The product shown here is just the replacement cylinder.

The Von Duprin 99 Mechanism End Cap 050014, also known as 33A/35A/98/99/330/350 Impact Resistant End Cap Kit.  Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.  Includes end cap, bracket and all screws

Von Duprin Part # 050014

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

Dorma 8916 Door Closer

The Dorma 8916 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and back check, along with a narrow projection full cover and flatform style arm.

 Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

The Von Duprin Dogging Hook 090044 is the piece that grabs the push bar mechanism and keeps it in the dogged position.  The does wear out, but it takes a long time.  This piece is used on the 22, 33A, 35A, 98 and 99 series devices made after 1997.  We sell this part individually and it is #5 on the diagram.

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

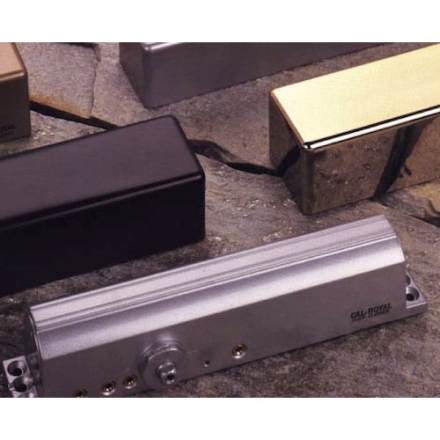

The Cal Royal Products 900 Series Door Closer is a unique one, it is the only closer that has the 3/4" x 11-1/8" hole spacing.  We have seen a few versions of this closer, some have 6 mounting holes, and some have 4.  If your closer has a spacing of 11-1/8", and has 3 holes on each size, this is the only closer I know of that is like that.  The 900 Series is a Grade 1 closer, the heaviest duty rating possible.  The door closer has adjustable spring tension, closing, latching and back check valves and is Barrier Free rated.  The package comes with all of the  mounting screws and a parallel arm bracket, so it can be mounted on the left, right, push, pull or top jamb for mounting.

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Falcon/Monarch 19 Series Hex Dogging Assembly and Cover have been changed.  As of April 12, 2022 the kit now includes a new style dogging assembly also.

We know this kit will work on the 19/24/25 Series, and are not sure if it will work on the Monarch 17/18 Series Dogging Cover goes over the dogging mechanism on the hinge side of the exit device. Sometimes when the end cap goes missing, this cover plate also disappears.

Monarch old part #s 195 and 194
Monarch/Falcon new part #'s 650297 and 650303

Size is the width of the Device, a 36 inch device is usally only 32 inches wide, a 48 inch device is usually about 42 inches wide.

Von Duprin 050538 EL Dogging Rod Retainer

Fitting threads into the 050536 HD EL Solenoid and connects to the Dogging Rod

#5 On Diagram

The Von Duprin 050155 33/99 Cylinder Dogging Conversion Kit converts Hex Dogging Devices to the Cylinder Dogging.  For use with the 33A, 35A, 98 and 99 Devices.

Von Duprin Part # 050115

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw.  I would recommend the D100, Panic Bar Retainer, for dogging down your device.

Von Duprin 88 dog screw 14 threads per inch

Von Duprin Part # 090083

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

The Cal Royal Products 800 Door Closer is one of there newer closers.  The CR801 has a hole spacing of 3/4" x 12" and ships with either a full cover or slim cover.  The full cover will hide both spindles, were as the slim cover will not.  This closer is a Grade 1 closer, the heaviest rating possible.  The cylinder has adjustable spring tension, closing, latching and back check speeds.   It can be mounted on the push, pull or top jamb.  The CR801 will work in place of the Norton 8000 and Yale 3000 series door closers, with no new drilling.

CR801S - SLIM COVER

CR801 - FULL COVER

Ships within 24 hours from California.

The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044.  These do occasionally fail, we sell them individually.  It is # 3 on the diagram.

The Cal-Royal 4500 Series Lever Trim is for use on the 45-RIM and 45-SVR Exit Devices. The Lever Trim is non handed and ships with a 6-pin C Keyway Cylinder. The function is Classroom, which means the key will lock or unlock the lever. The lever also incorporates a clutch function so the mechanism will not break when excessive force is applied to the lever.

Replacement Chassis Cover for the Dorma 9300 Rim Device

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

The Dorma 8831 Top Arm for RTS88 is for use on Single and Double Acting doors.  This arm is known as a side load arm, and usually has a notch in the door at the top to access the arm fastening block.  This piece measures 10-1/2" long by 1-3/8" wide at the widest part, and is 1/2" thick.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

Replacement Dorma 9000 Series End Cap, sometimes know as the EC9

Shown in Dark Bronze

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84

The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997.  The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

Von Duprin Part # 050709
Old Part # 050153

The Cal-Royal 45 Narrow Stile Surface Vertical Rod is part of the new 4500 Series. They are designed for Narrow Stile Doors with a Stile width of at least 1-3/4 inches. The device is rated as a Grade 1, which is the heaviest traffic rating possible. They ship with all mounting hardware and strikes.  This device is non handed and uses a Allen Type dogging system.
