Dor-o-Matic Exit Device 2090 Assembly Plate
Dor-o-matic 1090/2090 Assembly Plate. This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.
Doromatic part #4270100304
G109033 -
Dor-o-Matic 2090 Retractor Retaining Ring PB81
Doromatic Exit Device 2090 Retractor Retaining Ring
Keeps the Retractor in place.
Doromatic part # RRING.102
Dor-o-Matic 1090/2090 Repair Parts Breakdown
G209030 -
Dor-o-Matic 1690/1990 Retractor PB35
The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's. The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices. The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.
Doromatic part # PB35 or RETRACT.101
G199035 -
Dor-o-Matic 1690/1990 Top Strike Shim Package-SHIM.112
Doromatic PB48 Strike Shim Package Of 10 Pieces
This Dor-o-Matic product is for the PB48 Top Strike. This is the shim that goes under the top strike. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. They are only sold in packages of 10.
Doromatic Part # SHIM.112
G199034-SHIM -
Dor-o-Matic 1990/2090 Lever Arm DC15 DC40
Dor-o-Matic Lever arm.
Doromatic part # DC15 Lh and DC40 Rh
Order G199015 for Left Hand and G199040 for Right Hand
Left hand lever shown for 1990 and the 2090 inactive case.
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts BreakdownG199015- -
Dor-o-Matic 1490 149CA-NL Cylinder Assembly
No longer manufactured. We do have some of the PB115, which is the die cast disc that has the receiver for the rim cylinder and the plastic nub.
Dor-O-Matic 1490 Cylinder Assembly 149CA-NL
Doromatic part # 149CA-NL or 4270107272
149CA-NL -

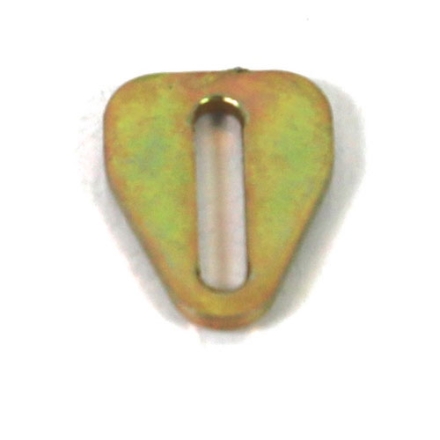

Dor-o-Matic 2090 Latch Link PB62
Dor-o-matic 2090 latch link
Dor-o-Matic 1090/2090 Repair Parts Breakdown
G209040 -
Dor-o-Matic 1690/1790/2390 Dogging Spring PB323
Dor-o-Matic 1690, 1790 and 2390 Dogging Spring
Doromatic part # 971493-76 or PB323
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break DownGPB323 -
Dor-o-Matic 1690/1990 Bottom Rod PB25
Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch
Doromatic Part # 4270101825 PB25 and GPB25
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts BreakdownG199024B -
Dor-O-Matic 2090 Panic Device
The Dor-O-Matic 2090 Panic Device has been around since the early 1970's. Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device. The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required. The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.
Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.Replacement parts are also available
G2090EO -
Dor-o-Matic 1690/1990 Jam Nut PB23
Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.
Doromatic part # NUT.101
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts BreakdownG199023 -
Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft
The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position. This shaft is used on the 1690, 1790, and 2390 device. The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008. They are basically the same device, with the same parts, just a different name plate. The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.
To remove the old shaft just pull with a pair of Channel Locks or Pliers. To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this. The manufacture part number on this is SHAFT.101.
GPBX16-SHF -
Dor-o-Matic 1690/1790 Push Bar Pin PB322
Dor-o-Matic 1690 and 1790 Pushbar Pin
Doromatic part # PIN.128 or PB322
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts BreakdownGPB322 -
Dor-o-Matic 1990/2090 "E" Ring PB4
Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.
7/16" diameter
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts BreakdownG199044 -
Dor-o-Matic 1690/1790 Screw PB345
Dor-o-Matic 1690/1790 Lock Stile Screw
Doromatic part # SCREW.1077 or PB345
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts BreakdownGPB345 -
Dor-o-Matic 1690 Retainer Screw PB141
Dor-o-Matic 1690 Retainer Screw.
Doromatic part # SCREW.1074 or PB141
Dor-o-Matic 1690 Repair Parts Breakdown
GPB141 -
Dor-o-Matic 1990/2090 Arm Bearing SD43
Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.
Doromatic part # BUSH.103 or PB43
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts BreakdownG199043 -
Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130
The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390. This latch has been around since the 1970's, and is usually the issue if your bottom rod is dragging on the floor. Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago. This latch rolls over when the device is pressed in and then locks in that position. When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods. This latch always uses the PB48 Strike, our part # G199034. The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008. They are basically the same device, with the same parts, just a different name plate. Falcon part # PB130 or 4270101806.
G199025 -
Dor-o-Matic 1690 Lift Bracket PB127
Dor-o-Matic 1690 Lift Bracket. This is the bracket the Concealed Vertical Rods Connect to.
Doromatic part # BRKT.138 or PB127
Dor-o-Matic 1690 Repair Parts Breakdown
GPB127 -
Dor-o-Matic 1790 Channel Spacer PB326
Dor-o-Matic 1790 Channel Spacer. This part is used on Dor-o-Matic 1790's with an outside key cylinder.
Doromatic part # SPACER.107 or PB326
Dor-o-Matic 1790 Repair Parts Breakdown
GPB326 -
Dor-o-Matic 2090 Lever Arm DC16 DC41
Doromatic Exit Device 2090 Lever Arm
Right hand dark brown shown in picture
Dor-o-Matic 1090/2090 Repair Parts Breakdown
G209020 -
Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102
The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction. This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts BreakdownG199046 -
Dor-o-Matic 1690/1790 End Cap Bracket Screw PB315
Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.
Doromatic part # SCREW.1070 or PB315
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts BreakdownGPB315 -
Dor-o-Matic 1990/2090 Pin Spring RD10
Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.
Doromatic part # PIN.104
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts BreakdownG199011 -
Dor-o-Matic 1690/1990 Rod Bearing PB3
Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.
Doromatic part # BUSH.109 or PB3
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts BreakdownG199003 -
Dor-o-Matic 1990/2090 "E" Ring RRing.109
The Dor-o-Matic 1990/2090 "E" Ring RRing.109 is use to connect the concealed rods to the Traveller Assembly (G199028, PB88, or 4270100013). The rods fit through the traveller and rod bushings, and the Retaining Ring holds them in place. This piece has a diameter of 1/2". This item is now under the Falcon name plate.
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts BreakdownG199004 -
Dor-o-Matic 1690 Actuator Arm Brkt Assembly PB338
The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.
Doromatic part # BRKTASY.107 or PB338
Dor-o-Matic 1690 Repair Parts Breakdown
GPB338 -
Dor-o-Matic 1790 NL/HB Cylinder Assembly Slider PB344
Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy
Doromatic part # SLIDER.101 or PB344
Dor-o-Matic 1790 Repair Parts Breakdown
GPB344 -
Dor-o-Matic 1990 and 2090 Set Screw PB38
The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs. There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom. The manufacture is now Falcon.
Doromatic part # SCREW.1039 PB38
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts BreakdownG199038 -
Dor-o-Matic 1690/1790 Lock Stile Push Bar End Cap PB318
Dor-o-Matic Lock stile Push Bar End Cap
The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing. Doromatic part # ECAP.129 or PB318
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts BreakdownGPB318
