Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic 2090 Backplate Assembly PB89 has been around since the early 1970's.  It is now called the Falcon 2090 Back Plate Sub Assembly, but it is the same thing, just different owners of the company.  This piece includes the plate casting, latch bolt, pinion gear, and retractor.

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

LEFT HAND BACKPLATE SHOWN

Doromatic Exit Device 2090 Lever Arm

Right hand dark brown shown in picture

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Panic Hex Key 7/32" is used on Dor-O-Matic Falcon and Sargent Panic Hardware to name a few.  The key measures 7/32" hex by 3-1/4" long.   Also known as a Hex Key, Dog Key, Allen Key or Dogging Key.

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware.  The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw.  The bar is constructed of extruded aluminum and then anodized to the correct finish.  The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Doromatic part # CBAR/  47285197 for the 41" bars, and 47286482 for the 48" bars.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Falcon Dor-O-Matic 1690 Auxiliary Package PKG.150 is one of the installation packages shipped with new devices.   The kit includes the Rod Bearing Bushings (G199003), Traveler Lift Bracket, Retaining Rings (G199004) and 5/32" Dog Key (88R60).

Dor-o-matic 1090/2090 Assembly Plate.   This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes.   The strike has been manufactured since the 1970's.  This part is also known as a Kawneer 133479 strike.  The strike ships with mounting screws in a painted black finish.   This style of strike is also known as a Blade Strike.

Doromatic Falcon Part # TD35 or 4270107393

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.

Doromatic part # NUT.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1990 Complete Repair Kit-PB20

Kit includes 25 different parts to keep your 990/1990 working smoothly

Dor-o-Matic part # 4270100583

Dor-o-Matic 1690 Lift Bracket. This is the bracket the Concealed Vertical Rods Connect to.

Doromatic part # BRKT.138 or PB127

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

No longer available

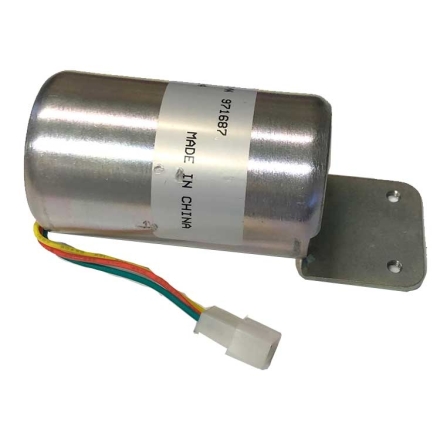

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic 1990/2090 "E" Ring RRing.109 is use to connect the concealed rods to the Traveller Assembly (G199028, PB88, or 4270100013).  The rods fit through the traveller and rod bushings, and the Retaining Ring holds them in place.  This piece has a diameter of 1/2".   This item is now under the Falcon name plate.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown

Doromatic Exit Device 2090 Retractor Retaining Ring

Keeps the Retractor in place.

Doromatic part # RRING.102

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-O-Matic 1690/1790/1990/2090 Pinion PB5 has been in use since the 1970's.  This gear or pinion is what activates the latch or the rods on the 990, 1090, 1690, 1790, 1990 and 2090 devices.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are the same device, with the same parts, just a different name plate.  The manufacture part number on this is CAM.102, PB5 or PB140.

1690 parts breakdown

1790 parts breakdown

1990 parts breakdown

2090 parts breakdown

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This Lever Trim is now reversible.   To change the hand all you have to do is remove the shear pin, rotate the handle and reinsert the shear pin.

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

Dor-o-Matic 1690 End Cap Screw

Doromatic part # screw.1072 or PB316

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1790 Parts Breakdown

Dor-o-matic 2090 Retractor. This piece retracts the latchbolt when the key is turned. The retractor measures 7/8" diameter by 5/16" gear height. Flange projects up 5/8".

Doromatic part # RETRACT.102

Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
