The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware.  The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw.  The bar is constructed of extruded aluminum and then anodized to the correct finish.  The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Doromatic part # CBAR/  47285197 for the 41" bars, and 47286482 for the 48" bars.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Falcon Dor-O-Matic 1690 Auxiliary Package PKG.150 is one of the installation packages shipped with new devices.   The kit includes the Rod Bearing Bushings (G199003), Traveler Lift Bracket, Retaining Rings (G199004) and 5/32" Dog Key (88R60).

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.

Dor-o-matic 1090/2090 Assembly Plate.   This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.

The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes.   The strike has been manufactured since the 1970's.  This part is also known as a Kawneer 133479 strike.  The strike ships with mounting screws in a painted black finish.   This style of strike is also known as a Blade Strike.

Doromatic Falcon Part # TD35 or 4270107393

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.

Doromatic part # NUT.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1990 Complete Repair Kit-PB20

Kit includes 25 different parts to keep your 990/1990 working smoothly

Dor-o-Matic part # 4270100583

Dor-o-Matic 1690 Lift Bracket. This is the bracket the Concealed Vertical Rods Connect to.

Doromatic part # BRKT.138 or PB127

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

No longer available

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1490/1690/1990 Rod Latch Assembly PB129

This latch is also used on the EL versions of the 1490 and 1690.

Doromatic RL Bottom Latch

Doromatic part # 4270100521

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

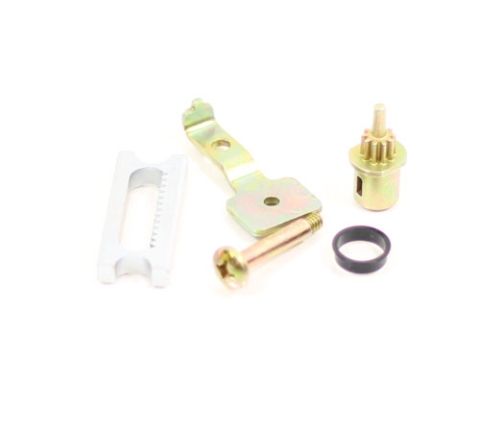

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

Dor-o-Matic 1690 End Cap Screw

Doromatic part # screw.1072 or PB316

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1790 Parts Breakdown

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1990 and 2090 arm bushing. This bushing goes between the pivot pin (arm axle) and housing.

Doromatic part # BUSH.103 or PB43

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.

Doromatic part # BUSH.109 or PB3

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-matic 1990/2090 Pivot Pin E Ring. This ring is used on the Pivot Pin G199013.

7/16" diameter

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA
