Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

Dor-o-Matic 1690, 1790 and 2390 Dogging Spring

Doromatic part # 971493-76 or PB323

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Dor-o-Matic 1690 End Cap Screw

Doromatic part # screw.1072 or PB316

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1790 Parts Breakdown

Dor-o-matic 2090 Retractor. This piece retracts the latchbolt when the key is turned. The retractor measures 7/8" diameter by 5/16" gear height. Flange projects up 5/8".

Doromatic part # RETRACT.102

Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA

Dor-o-Matic 1690 Retainer Screw.

Doromatic part # SCREW.1074 or PB141

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic 2390 Push Bar Anchor Brk

Doromatic / Falcon Part # PB335 or BRKT.137

Dor-o-Matic 1790 Channel Spacer. This part is used on Dor-o-Matic 1790's with an outside key cylinder.

Doromatic part # SPACER.107 or PB326

Dor-o-Matic 1790 Repair Parts Breakdown

NO LONGER AVAILABLE

Dor-o-Matic 1490 NL Cam Assembly

Doromatic Part # 4270107268

Parts Break Down

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.

Doromatic part # BRKTASY.107 or PB338

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

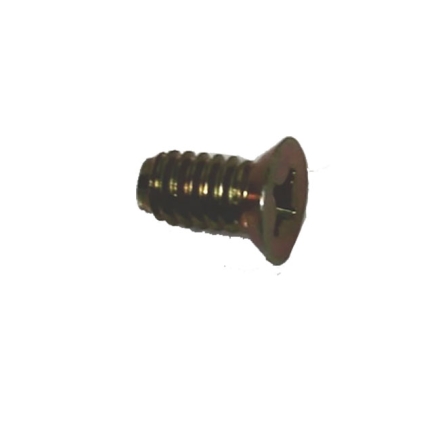

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall lenght.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

Dor-o-Matic 1490/1590 Dogging Clip

Doromatic part # 971659-79 PB223

Falcon Dor-o-Matic 1590 Latch Bolt Assembly 4270107603

Replacement Latch Bolt Assembly for the Falcon Dor-o-matic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603
Old Part # PB124

Doromatic Exit Device 1490 Pushbar End Cap PB201

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106787 or PB201

Dor-o-Matic 1390 Dogging Assembly. If you have a 1390 and the dogging is stripped, this is the part you need. The package includes the Dogging Cam (4270102815), Activating Cam (4270106551), Spacer (4270108584), and Retaining Ring (4299100732).  The 1390 was discontinued in about 2003. Also known as a PB-96 Dor-o-Matic 1390 Dogging Assembly

Doromatic part # 4270106669

Dor-o-Matic 1590 HB Cam Assembly

Doromatic part # 4270107285 or PB118

No longer available

Doromatic 1590 Cylinder Assembly 159CA-NL

Doromatic part # 159CA-NL

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Doromatic 2390 Fixed Cover

The Doromatic 2390 Fixed Cover also known as the center case cover. The cover is 1-1/2" wide by 3-7/16" high and projects out 2 inches. The mounting screws are 3" on center.

Doromatic / Falcon Part # COVER.127 or PB341

Dor-o-Matic 1490 LHR/ 1590 RHR Push Label
1-7/16" x 4-7/8"

Doromatic part # 4270107323 or PB213 Black-No longer available
Doromatic part # 4270107322 or PB215 Gold

The Falcon Dor-O-Matic RM70 Mullion Bracket Kit includes the top and bottom brackets and all of the mounting screws.

Falcon part # 4270108954

Dor-o-Matic 1490 RHR/1590 LHR Push Label
4-7/8" x 1-7/16"

Doromatic part # 4270107321 or PB212 Black-No longer available
Doromatic part # 4270107320 or PB214 Gold

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB
