The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

Dor-o-Matic 1690 Retainer Screw.

Doromatic part # SCREW.1074 or PB141

Dor-o-Matic 1690 Repair Parts Breakdown

Replacement End Cap and Bracket for the Cal-Royal 2200 Rim and Vertical Rod Exit Devices

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Metal end cap for all Adams Rite Concealed Vertical Rod and Mortise devices.

Adam Rite Part # 41-0902-05IP

The Cal Royal 239 Rim Strike is used on the 9800 and 2200 Rim Devices.  The Strike is Nylon Black Coated.

Swivel, 9/32" square,
16 tpi, 4-3/4" long,
with stop pin

2 piece sectional
9/32" square x 2-5/8" long
20 tpi

Swivel spindle, 9/32" square,
18 tpi, 4-3/4" long with two 3/8" solid centers
and three pinning holes

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

Global Stout Door Closer Bottom Pivot Set

The bottom pivot set is shipped with all the mounting screws and fasteners.

Von Duprin 050520 33/3547A/48A Bottom Rod

Replacement Von Duprin 050520 33/3547A/48A Bottom Rod.

Von Duprin Part # 050520

Yale 1174 Spindle

Threaded side 3" long, pin hole side 2-3/8"
overall length is 5-3/8",
20 Threads per Inch

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

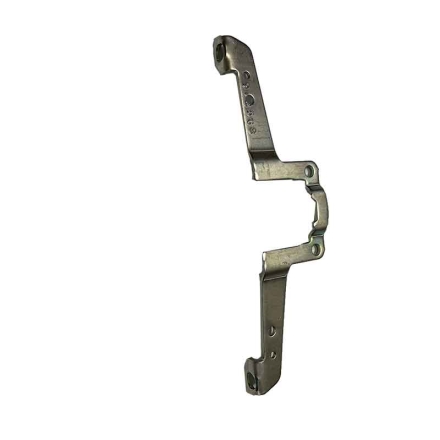

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

Dor-o-matic 1690 NL Cylinder Assembly

Doromatic Part # CYLASY.1083 or 169CA

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

No longer available

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

Detex 98 Advantex 100855-1 Semi Mortise

98 Semi-Mortise-applied strike for 10 an d40 series Rim Devices

Detex Part # 100855-1

The Von Duprin 900581 Cylinder Cup and Tail Piece Assembly is used on just about everyone of their devices outside tirm.

8310-856T LCN Wall Mount Actuator 4-1/2" With Text

Actuator 4-1/2" diameter, with blue engraved lettering with text.

Sargent ET Locking Slide Kit for 706 Controls

Kit includes everything shown in picture.  Separate components are not sold separately.

Sargent Part # 607-2

Sargent 97-0050 Knob Return Spring

This Sargent Knob Return Spring measures 1-1/16" overall length by 3/16" diameter

Sargent Part # 97-0050

Replacement Dorma 9000 Series End Cap, sometimes know as the EC9

Shown in Dark Bronze

Replacement Cal-Royal 9800 End Cap and Bracket.   Includes mounting screws.

Norton Hook Up Boards for units made after 2009.  Available in 24 or 120 Volts.

The Adams Rite 31-0964 is used on the 3500, 8600, 8675 and 4781 Devices. The assembly comes with the nylon bushing.

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Monarch Trim Spring 4841

2-1/2" long x 3/16" diameter

Monarch part # 4841

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

No longer available, we do have some of the GPB116 Cam Assemblies left.

Doromatic 1490 Cylinder Assembly 149CA-HB

Doromatic part # 149CA-HB

Von Duprin 050404 33/3527A Center Case

Replacement Von Duprin 33/3527A Surface Vertical Rod Device Center Case.

Von Duprin Part # 050404

The Jackson Exit Device Rod and Case Assembly is used on 7' doors for the models 1085, 1285 and 2086 devices.

Jackson part # 30915J
