Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

The International Door Closer 883P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

Sargent 25-CPSH Heavy Duty Compression Holder Arm

Forged Steel Arm 11-1/4" long, non handed, will work left or right for Parallel Armed Sargent Closers.  Permits 105 degree opening with built in compression stop and holder mechanism.

Sargent Part # 25-CPSH

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The Door Sweep 1-9/16" Long Brush is one of the longest brush sweeps we offer.  The brush is 1-9/16" long, with the mounting strip being 1-3/16".  The mounting strip is constructed of extruded aluminum, and the holes are slotted for adjustment.  The mounting screws, which are #6 x 3/4" stainless steel sheet metal screws are included.  This product is easily cut down in the field.

Ives Replacement Rubber Shoe 09-316

Used as a replacement shoe for the FS444, FS446, WS443, WS445,GJF26, GJW27, RB444HD, and RB443
The rubber shoe measures 7/8" diameter x 1-1/2" long

Ives part # 09-316

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of steel

screw not included

Norton 7701-11 Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" and 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of aluminum

screw not included

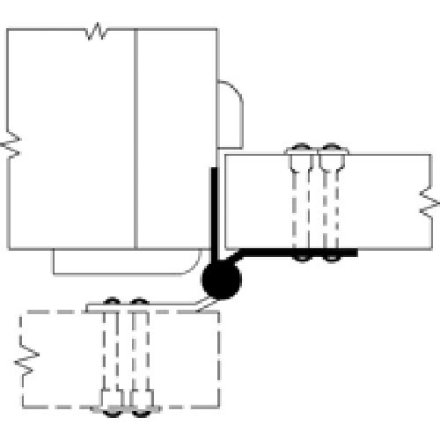

The BB84 Half Surface 4-1/2” Door Hinge is a specialty hinge.  The hinge leaf will mount on the door frame in the standard mortise position and the other leaf mounts on the door face.  These are five knuckle, two bearing with square edges.  They are constructed of 10 gauge (.134”) steel that is then plated to the desired finish.  We ship in boxes of 3 hinges with the wood and machine screw.

Replacement Rubber Shoe for Mickey Door Holder

Replacement shoe for the GJX2M Grand Specialties 3" Mickey Door Stop.

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

• Through-bolted: 1-3/4" (44mm) door standard. For doors through 2-1/4" (54mm)
• Plate Dimensions: 3-1/2" x 3-3/4" x 3/32" (89mm x 95mm x 3mm)
• Finger Pull Dimensions: 3-1/2" x 6-3/4" x 1/8" (89mm x 171mm x 3mm)

The Norton Door Closer 8501 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8501/8501BF 3501/3501BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8301 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

These standard metal extensions can be used with the LCN SEM magnet door holders to increase the holder projection. The treads on this piece are 3/8-16.

LCN Part #'s
SEM7810-E050 1/2"
SEM7810-E075 3/4"
SEM7810-E100 1"
SEM7810-E200 2"
SEM7810-E400 4"

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

LCN 4310ME-72MC Door Closer Cover

Replacement metal cover for the LCN 4310ME Door Closer

Manufacture Part #:  4310ME-72MC

LCN 4410ME-72MC Door Closer Cover

Replacement metal cover for the LCN 4410ME Door Closer

Manufacture Part #:  4410ME-72MC

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

Yale 7000 Series End Cap

Yale Part # ECK7

Newer impact resistant end cap. Replaces all of the older version end caps for the Yale 7000 series.

Shown in stainless steel.

The BB82 half Mortise 4-1/2” Door Hinge is a specialty hinge. The hinge fastens to the standard mortise slot on the door and the other leaf mounts on the face of the door frame. These are five knuckle, two bearing with square edges. They are constructed of 10 gauge (.134”) steel that is then plated to the desired finish. We ship in boxes of 3 hinges with the wood and machine screw.

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

The BB83 Full Surface 4-1/2” Door Hinge is a specialty hinge.  The hinge fastens to the face of the door and the face or the door frame.  These are five knuckle, two bearing with square edges.  They are constructed of 10 gauge (.134”) steel that is then plated to the desired finish.  We ship in boxes of 3 hinges with the wood and machine screw.

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

Yale 757 Strike for 7000 and 2100 Devices

Used on the Yale 7100, 7150, 7200 and the 2100 Exit Devices.  Furnished in a Black Finish.  We ship the 757F Strike as a  replacement, all the measurements are the same.

Yale Part # 757

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

The International Door Closer 5001P Series Adjustable Spring Power is a great closer to use as a replacement for the many 3/4" by 12" mounting holed closers.  This door closer is fully adjustable with sweep, latching and back check adjustments, a long with an adjustable spring tensoin control.  This closer can be adjusted to less then 8-1/2" pounds of resistance to meet ADA standards.  You can install this closer on the push, pull or top jamb, we ship the regular arm and a parallel arm bracket.  This closer has the same mounting holes as the Norton 8000 and Yale 3000 door closers.

Hole spacing 3/4" x 12"

Yale Trim Spring Blue

Also used on Corbin Russwin and Yale Lever trims. The Blue Spring is for RHR or LH doors. The spring has an outside diameter of 1-1/4".

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

The International Door Closer 853P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53, that had the 3/4" x 8-3/16" mounting holes

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”
