The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7830-516

The SEM7840-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC. Cylinder is 1-3/4" diameter and projects out 7/8" out from the mounting plate.

LCN part number SEM7840-516

The Von Duprin 8827-F/47-F Soffit Latch Kit 114141 fits in the header of the door frame and is used on the Von Duprin 5547-F, 8827-F and 8847-F.  The plunger is spring loaded.

Von Duprin Part # 114141
Old Part # 102930

Zipper Pile Weatherstrip .270" Backing - .200" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Zipper Pile Weatherstrip .270" Backing - .250" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

Von Duprin 8827 Top Vertical Rod

Standard top rod for a 7'2" door. The rod measures 35-1/2 inchs long.  Top Rod connector not included.

Von Duprin part # 050453
Old Part #960581 and 961628

The Sargent 20/30/60  End Cap Bracket is used with the larger end cap.  This end cap has been manufactured for the last 40 years and started its life on the obsolete 60 Series.  The bracket holds the hinge side of the exit device on the door, and the G20300C fits over the top of it.

Sargent part #68-2141

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

The Corbin Russwin 651F62 Blue Lever Spring is same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors outside trim lever handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

The Von Duprin Thumb Piece 970488 is just the thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.

Von Duprin Part # 970488
Old Part # 960303

The Norton 7700AS Arm Stud is for use on the 7700PT Power Track Closers.  The stud connects the arm to the slider (7700SLD) and is held in place by the Retaining Ring (7700ASR).   This piece is approximately 1" long.

Non-Handed Offset Storefront Pivot Hinge Set, includes top and bottom pivots and all the fasteners.

The Von Duprin 050534 EL Potted Circuit Breaker measures 5" long by 1-1/4" wide and 7/16" thick including the wires. This piece spikes the current to the solenoid to open the door, then lowers the current to keep the device open.  The 050534 has a plug for the two wire input, and a plug for the 3 wire output. This Potted Circuit Breaker is also used on the Doromatic/Falcon Exit Devices, EL1490, EL1590, EL1690, EL1790, and EL2390. We sometimes find the number 101031-00 and 2148 on a sticker.

Old Von Duprin Part # 110741
Von Duprin Part # 050534
Doromatic/Falcon Part # 050534-00

Sargent 2828 / 2838 Center Case Cam

The Sargent 2828 / 2838 Center Case Cam is the Cam that the key cylinder actuates to open the door.   The Cam is located in the middle of the Center Case.  We can no longer get the retaining ring to hold it in place.

Sargent Part # 28-0109

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

The Norton 7700SLD Slider for replacement of the 7700PT Series Power Track Closers.  This is the piece that slides in the track and the arm attaches to.  The unit measures 2-1/16" long by 1-1/4" wide and 5/8" thick, not including the metal clip on the back.

The Corbin Russwin 651F61 Red Lever Spring is the same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors on there outside trim Lever Handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

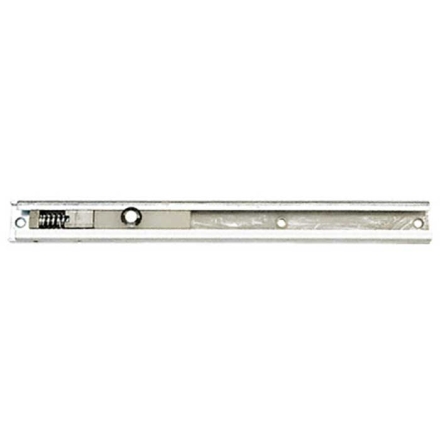

The Jackson 201129 Track is used with the offset arms of the 20330 Door Closer.  The track measures 1/2 inch thick by 1-9/32 inches wide by 12-7/8 inches long. We can no longer get just the track.  This item will now include the arm.

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

Zipper Pile Weatherstrip .270" Backing - .300" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Falcon 25-V Center Case Kit 650242

The Falcon / Monarch 25-V Center Case Kit 650242 for non Fire Rated Doors.  The Center Case on the Monarch Falcon 25-V is the same for the Fire Rated and the Non Fire Rated.

Falcon Part # 650242

The Detex V40xNS is designed for Narrow Stile Doors with a stile width of at least 2". The 36 inch is 34-7/8 inches wide overall, and the 48 inch device is 46-7/8 overall.

The Detex 40 Series rim exit device is a supper heavy duty panic device for use on narrow stile doors. Device features an angled end cap to deflect damage away from the unit. This device is designed for years of trouble free service in high use, high abuse enviroments.

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. This core is used on the Floor Mounted SEM7830.  It has 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7820-516

SEM Parts Manual

Corbin Russwin Door Closer H.D. Parallel Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes

Corbin Russwin part # 689F02

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

Corbin Russwin Door Closer H.D. Hold Open Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes.

Corbin Russwin part # 689F04

The Von Duprin 050190 Bottom Fitting is for the 5654 / 5754 Mullions.  The package includes the bottom fitting and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-7/8"

Von Duprin part # 050190

International 58L Escutcheon Trim for the 5000 Series Devices

Non-handed, easily install with exit device Escutcheon plate measures 8-1/16" tall by 2-5/8" wide by 29/32" thick. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle-Most Popular
Passage - no cylinder hole, lever always active
Night Latch (Storeroom) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

The Von Duprin Panic Device 880NL Trim is for the 88 Series only.   The stanchions welded on the back of the plate line up with the88 device on the interior.  Optional key cylinder locks and unlocks the device, and can be used for dogging the door open.  Plate measures 3" wide by 14-3/16" long, with an 1-5/8" bore for cylinder.

Von Duprin part # 880NL-R

The Von Duprin 107765 Plunger Release Bracket is used with the Fire Rated 8827-F Top Latch.  When the door closes, the Release Pin on the 88VR10-F (050462) hits the post and releases the latch from the retracted position.  Once the top latch is released, it drops the bottom latch into the floor.

Von Duprin  # 107765
