The Cal-Royal 45 Narrow Stile Surface Vertical Rod is part of the new 4500 Series. They are designed for Narrow Stile Doors with a Stile width of at least 1-3/4 inches. The device is rated as a Grade 1, which is the heaviest traffic rating possible. They ship with all mounting hardware and strikes.  This device is non handed and uses a Allen Type dogging system.

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

The Jackson Door Closer Center Hung Arm - 20-2000 is used on double acting doors with the 20-330 concealed door closer.  The arm measures 9-1/2" long by 15/16" thick.

Jackson Part # 20-2000

The Cal Royal 938 Surface Strike is used on the 6600, 7700 and 5000 Series Rim Devices.  The strike includes all the mounting screws.

The Cal Royal Products 800 Door Closer is one of there newer closers.  The CR801 has a hole spacing of 3/4" x 12" and ships with either a full cover or slim cover.  The full cover will hide both spindles, were as the slim cover will not.  This closer is a Grade 1 closer, the heaviest rating possible.  The cylinder has adjustable spring tension, closing, latching and back check speeds.   It can be mounted on the push, pull or top jamb.  The CR801 will work in place of the Norton 8000 and Yale 3000 series door closers, with no new drilling.

CR801S - SLIM COVER

CR801 - FULL COVER

Ships within 24 hours from California.

The Jackson 1095 30-1247 / 30-1248 Lever Arm.  Replacement Lever Arm for the Jackson 1095 Active Housings.   This arm will only work on the 1095 Active Case!  The difference between this arm and the 1085 arm is the Pin in in the top of the arm.   The pin fits into the triangular linkage clip, which actuates the latch bolt.  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

The Cal-Royal 227 Top Strike is used on the 7700, 9800, 6600, and 2200 Series Surface Vertical Rod Devices. The strike is Nylon Black Coated.

Jackson 30-2674 1285/1295 Cover Package

Jackson part # 30-2674-313 and 30-2674-628 Cover Plate for use on the 1285 and 1295 devices..  Plates measure 2-11/16" x 7-1/2 and 2-11/16" x 2-1/8", two plates in each package.

Jackson Part #'s 30-2674-313 and 30-2674-612

Adams Rite 8800 Panic Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

The Jackson Door Closer Center Hung Arm - 20-2010 is used with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide at the hub by 13/16" thick at the hub.

Jackson part # 20-2010

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

The Jackson 30-1345 Top Strike Package for the 2085-3185  is mounted on the frame of the door were the top latch can engage it.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-1345.

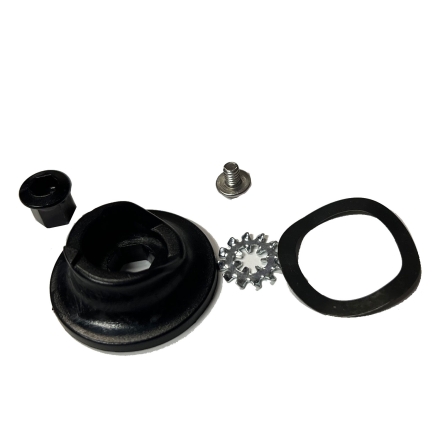

The Cal-Royal 2000 and 9000 Dogging Assembly is used on the 2200 and 9800 Series Exit Devices which include the 2200, 2260, 9800 and 9860.  The assembly uses a 7/32 inch dog key.

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

The Jackson Door Closer Offset Arm 20-1134LC is the arm and track assembly for the 20-330 concealed closer.  The arm measures 12-15/16" long with .919" offset, and the track measures 1/2" thick by 12-7/8" long by 1-9/32" wide.  The track includes the nylon slide, pin and retaining ring.

Jackson part # 20-1134-LC

Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

The Cal Royal GLSRIM9800 is an Entrance Function Lever Handle for the GLS7700 and GLS9800 Narrow Stile Rim Exits.  The Base measures 1-3/4 inches wide by 8 inch tall, with a 2-3/8 inch thick base.

International 7100 Concealed Vertical Rod Device

Modern flat touch bar Concealed Vertical Rod Device Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

DORMA 8300 Series Exit Devices minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. Package includes all the mounting screws and brackets, and the surface strike.  5 year limited warranty.

The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map.  It is designed for all types of single and double doors with mullions.  It is field reversible, and ships with a 42" cross bar that can be cut down in the field.  The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

The Cal-Royal 4500 Series Lever Trim is for use on the 45-RIM and 45-SVR Exit Devices. The Lever Trim is non handed and ships with a 6-pin C Keyway Cylinder. The function is Classroom, which means the key will lock or unlock the lever. The lever also incorporates a clutch function so the mechanism will not break when excessive force is applied to the lever.

Sargent Panic 97-0008 End Plug

Sargent 97-0008 End Plug and 01-001 End Plug Screw.  Fits the 90 series cross bar panic devices.

The Cal-Royal 221 Bottom Strike is used on the 2000, 5000, 7000 and 9000 Panic Bars with Surface Vertical Rods. Strike measures 2-7/16 inches long with a 5/16 inch projection.  The hole spacing is 1-7/8 inches.

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

The Von Duprin Panic Device 230L Lever Trim will work on the 22 and 2227 series exit devices.  In 2008 this lever was redesigned and went from a key in the lever to the new style which has the key above the lever.  The plate measures 3" wide by 6-3/8" high and is 15/16" thick.  This lever only comes in sprayed aluminum or dark bronze.  We also have replacement parts for this particular trim piece in stock, email  us under the contact tab at the top of the page.

Cylinder not included

Installation Instructions

Cal Royal 5000 Lever Trim

Cal Royal Part # 8000/L

The Von Duprin Panic Device 8827 Center Case 050415 is for use on the non fire rated 88 surface vertical rod.   You can tell the difference by the dogging screw.  If you have a Dogging Screw on your device, then this is the correct part.  Includes the internal pieces, including the Rod Control.

Von Duprin part # 050415

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

Monarch 914KIL-KD Panic Device Lever Trim

The 914KIL Lever Trim is for use on the Monarch / Falcon 19 Series.  This lever trim is shipped with a standard Schlage C Keyway, that are keyed different if you are ordering multiple levers.  The key locks and unlocks the Lever handle.

Monarch Falcon Part # 914KIL-KD

Cal Royal 2000 and 5000 Knob Trim

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.
