The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Norton Door Closer 8301 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8301/8301BF 3301/3301BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8501 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

The LCN Door Closer 4021 is also known as the Smoothee.  The 4021 ships with regular arm, standard plastic cover, and self reaming and tapping screws.  The 4021 is considered an application specific closer.  Meaning you have to specify left and right swing door, and can only be mounted top jamb.  A top jamb mount is when the closer is mounted on the top rail of the door frame and the arms hangs down and attaches to the door.  Top Jamb door closers are also mounted on the pull side of the door.  The Non sized cylinder will work on just about any size interior or exterior door and meets ADA requirements.  We ship the 4021 REG.

The LCN Door Closer 4111 HEDA Hold Open is known as the Smoothee, and is one of the heaviest duty door closers made, the HEDA stands for Hold Open Extra Duty Arm.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 HEDA model, which is a hold open arm on this page. The cylinder mounting holes are 2-1/2" by 6".

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

The LCN Door Closer 4111 is known as the Smoothee, and is one of the heaviest duty door closers made. If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 EDA model, which is a non hold open arm, on this page. The cylinder mounting holes are 2-1/2" by 6".

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

The LCN Concealed Door Closer 3031 is mortised into the top of the door.  Standard 3030 series closer shipped with regular arm and wood and machine screw pack. Sized cylinders for interior doors to 4’0”.  Handed for right or left swinging doors.  Closers to meet ADA requirements.

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

The LCN Door Closer Regular Arm 3077 ships with 95 percent of there door closers.   This is the standard regular.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.  The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077,  and  4040-3077.  If your model is not here, call us and we will quote you a price.

The International Door Closer 854P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" x 9-1/16" mounting holes

The 855 has been discontinued.  If you order it the 885 will be sent, it is the same door closer, but features back check.

The International Door Closer 855P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 48” interior or 42” exterior doors.

3/4" x 9-1/16" mounting holes

The LCN Door Closer 4031 is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors. Closer meets ADA requirements.  The hole spacing on this closer will not match the 4030's that LCN produced up to 1997, that was a completely different door closer.

We ship the 4031 Rw/PA

The LCN Door Closer Cover is the standard plastic cover that ships with LCN Door Closers.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape cover on the door closer cylinder.  The part number is the Series Number followed by -72.   So, the part number would be 1460-72, 4010-72, 4020-742, 4030-72, 4040-72 and 4110-72.   We have access to all the covers, if yours is not here call us and we will quote you a price.

The International Door Closer 853P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53, that had the 3/4" x 8-3/16" mounting holes

LCN 4810 Door Closer Pneumatically Operated

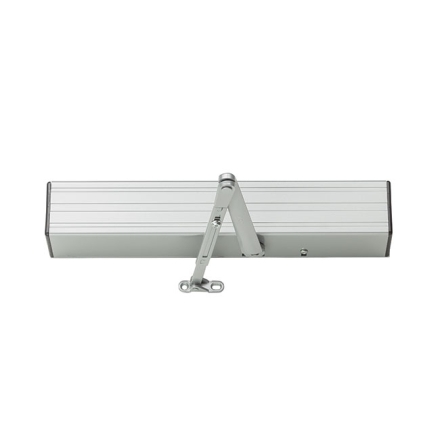

LCN 4820 Door Closer Pneumatically Operated

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

The International Door Closer 1803BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The International Door Closer 1805BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 54” interior or 48” exterior doors.

3/4" X 9-1/16" Hole Spacing

The Norton Door Closer 8501 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8501/8501BF 3501/3501BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8301 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

The LCN Door Closer 4111 FL is known as the Smoothee, and is one of the heaviest duty door closers made, the FL stands for Fusible Link. The Fusible Link is a lead clip that melts at roughly 115 degrees, and releases the door so it can close and contain a fire.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 FL model, which is a hold open fusible lind, on this page. The cylinder mounting holes are 2-1/2" by 6".

The International Door Closer 883P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

The Norton Door Closer Regular Arm is the standard arm that is shipped with the 9300, 1600, 8301, 8501 and 7500 door closers.  It will also work with the Yale 2300, 50, 3301, 3501 and 4400 series door closers.  This arm has had a bunch of different factory numbers over the years, including 1620-1, 7701-1 and 400-1.

The Norton Door Closer 1601 has been around for the past 40 years.  With the advent of aluminum framed glass doors, Norton was on for the first manufactures to come up with a narrow stile door closer.  Because of this, it is still one of the most popular door closer model out there.  It is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  The model we ship also has adjustable spring tension to work on a wider range of doors.  The hole spacing is 3/4” x 9-1/16”.

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.  We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

The LCN Door Closer 1461 series closer ships with regular arm, a slim line plastic cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.  The narrow foot print allows this door closer to be mounted on the top jamb and narrow stile doors without a drop plate.

We ship the 1461 Rw/PA

International 8052-TP Delayed Action Door Closer

The International 8052-TP Delayed Action Door Closer is same  as the 8050 Series or 8051-TP, but with Delayed Action. Delayed Action is a function of the Door Closer hydraulic cylinder. The hydraulic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-TP DU or 8052-TP AL

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The LCN Door Closer 4041XP-HCUSH is the 4040XP, eXtra Protection closer with the 4040XP-3049HCUSH Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the CUSH hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, but it has to be mounted in the push side of the door is a parallel arm type application.

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.
