Metal end cap for all Adams Rite Concealed Vertical Rod and Mortise devices.

Adam Rite Part # 41-0902-05IP

The Push Bar W/Offset Grip 422X39 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Push Bar Adjustable 453

Finishes:
US4/606 brushed brass
US26D/626 brushed chrome
US26/625 polished chrome
US3/605 polished brass

Material Brass
Material size 1" round tube adjustable up to 36"
Base 2" round x 2-1/2"
Clearance 1-1/2"
Projection 2-1/2"

The Adams Rite G86 Mounting Cap and Label with only work on the G86 Device.  The Cap measures 3-3/4" high by 1-1/8" with a 1-5/8" projection.

The Adams Rite 41-0131-119 Metal End Cap Assembly is used on the Latching Side of the device. It is used on the P8700 and P8800 Narrow Stile Pullman Exit Device.

Dor-o-matic 1090/2090 Assembly Plate.   This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230

Aluminum Kick Plate with Diamond Plate Finish, .063 inch thick.  Same as our 1/8 inch thick plate, but 1/16 inch thick. Plates come with or without screws, the without will not be drilled.

The Diamond Plate Aluminum Door Kick Plate are solid aluminum.   They are 1/8" thick and have a gloss or polished finish.  These plates have the Diamond pattern, and the diamonds are 1-1/8" long.  Custom sizes are available, they run about $0.39 per square inch.  The lead time on these plates is about 7-10 days.

Our Dark Bronze Oil Rubbed Bronze Door Kick Plates (US10B) are a baked on powder coat on brass base metal. We switched to this finish 5 years ago due to color variations in the US10B Oil Rubbed Bronze finishes. The US version was much lighter than the Asian version, which is where most the door hardware is made these days. The cost of Oil Rubbing was going through the roof and many platers were having issue with the environmental impact and EPA regulations in the United States. Our Oil Rubbed Kick Plates are 16 gauge (.050″) thick.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut dark brown screw. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates, it is not recommended. Large plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and some C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 2 week shipping time

Doromatic 2390 Push Bar Anchor Brk

Doromatic / Falcon Part # PB335 or BRKT.137

Anodized Aluminum Door Kick Plates are the most cost effective, least expensive. The aluminum plates are 16 gauge, or .050″ thick and have a brushed or satin finish. They have an anodized finish to resist corrosion and we find these in many commercial buildings through out the United States.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.21 per square inch depending quantity

Please allow 1 week shipping time

International Door Closer T5 Push Pull Back to Back Mounting Screw is used on the PB-2000, PP-2000 and the PH-4000. Overall length is 3-3/16 inches including the head, and has a 3/8 inch diameter. The head has a 7/16 diameter and stick out 5/8 inches.

Adams Rite G86 End Cap Parts Package 91-0943

The Clear Plastic Door Kick Plates are constructed of .125" thick acrylic.  We recommend screw mounting on these  plate, because you can see right through them, and would be able to see the Tape Mount or Glue.  We have the more common sizes listed, but If you need a custom size they run about $0.22 per square inch.

The Door Pull Plate 5810 is 7/32" thick forged plate made of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE10, handles come with thru bolts and finish washers. The plate has counter sunk holes and sheet metal screws for mounting. 3-1/2 x 15 inch plate only.

Finishes

Push Bar Adjustable 450

Finishes:
US3/605 Polished brass
US4/606 Brushed brass
US10B/613 Dark bronze
US26/625 polished chrome
US26D/626 brushed chrome

Material: Brass
Material Size: 5/8" Rd Tube Adjustable up to 36"
Clearance: 1/2"
Projection: 1-1/8"
Fasteners: Surface Mount only

The Door Pull Plate 5025 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.  This is one of our most popular plates sold.

Finishes

The Door Pull Plate 5020B is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

Detex Advantex Series End Cap 100147. Bracket measures 3-1/2 x 2-1/2 inches.

The Brushed Stainless Steel Door Kick Plate 14 Gauge .062 is the heaviest duty plate we offer .  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use only type 304 stainless.

 Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

 You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

 Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

Lifetime Satin Nickel PVD Door Kick Plate

The Satin Nickel is a popular finish we have been seeing the last 15 years. These plates are 16 gauge or .050″ thick.
The Lifetime Satin Nickel Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial satin finish that is then brushed. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Satin Nickel Kick Plate PVD. Because the finish is an artificial satin nickel, it does not have to be clear coated, so it will never tarnish.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 1 week shipping time

International Door Closer T1 Push Pull Mounting Screw is used PH-4000, PB-2000, and PP-2000.  The screw measures 2-9/16 inches long, with a 3/8 inch diameter and 18 threads per inch.

Yale 7000 Touch Bar End Cap-Front

Yale Part # 60-7000-6115

The Door Pull Plate 5021 is a .050" solid wought plate in either aluminum, brass or stainless steel depending on the finish. The Door Pull GHE21 has 6" centers, handles come with thru bolts. The plates are pre drilled with counter sunk holes and come with sheet metal screws.

Finishes

The Gold Aluminum Door Kick Plate are constructed of .040" thick aluminum base material that is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.  Ships with matching Phillips type sheet metal screws..  Please allow 7-10 days for delivery
.

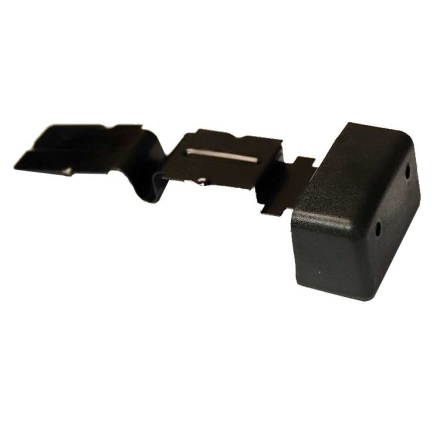

Plastic end cap for all Adams Rite Concealed Vertical Rod and Mortise devices, specifically the 8300, 8500, and 8600 Series.

Plastic cap measures 2-3/8" high by 1-1/16" wide by 1-1/4" projection. The metal tab measures 1-3/16" wide by 5" long.

Adam Rite Part # 41-0901-05-IP

Corbin Russwin Door Closer H.D. Parallel Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes

Corbin Russwin part # 689F02

The LCN 1370 was a door closer made in the late 1990's to 2006 or so. The closer had a special mounting plate that made installation very quick. Many people have this door closer in use and now they are starting to fail. The LCN 1370-18QF Quick Fix Plate converts the mounting holes of the 1370 to a standard template closer, which is 3/4" x 9-1/16". By using this plate you will not have to redrill holes in your door. The plate measures 2 by 10-1/4 inches with tapped holes that measure 3/4 x 9-1/16 inch.

The Lifetime Brushed Brass Door Kick Plates are the same as the Lifetime Polished Brass Door Kick Plates, solid stainless steel base metal, 16 gauge (.050" thick), but the surface is Satin or Brushed.  Because it is an artifical finish they will not tarnish.  Custom sizes available starting around $0.41 per square inch depending quantity.  Kick Plate comes with screws for mounting.  Please allow 1 week shipping time.

Corbin Russwin Door Closer H.D. Hold Open Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes.

Corbin Russwin part # 689F04

The Door Pull Plate 5026 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE26 has 8" centers and is constructed of solid aluminum, brass or stainless steel, and is 1" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.

Finishes

The Sargent Exit Device 20/30/60 End Cap And Bracket is a part we put together here for your convenience.  Sargent only sells these components separately.  Usually only the cap goes missing, but every once and while the bracket goes missing also.  The package is used on the all of the 20, 30 and obsolete 60 series devices.

Sargent Part # 68-0434, 68-2141, and 97-0052

The Duranodic Aluminum (Dark Brown) Door Kick Plates are dark bronze or brown and match the Dark Brown color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Dark Brown Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.
