Von Duprin 8827 Bottom Vertical Rod Assembly

This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector. The rod is 31-7/8 inches long, excluding the rod connector.

Von Duprin Part #050455
Old Part #101777 and 103234

The Hands Free Foot Operated Door Pull is a low cost solution to keep your hands off of high traffic handles. It is constructed of cast aluminum, and measures 4" wide by 1-7/32" high with a 2-3/8" projection. The package includes fasteners, door decal and installation tool.

Corbin Russwin Top Latch 650F55-8

The Corbin Russwin ED5400 / ED4400 Top Latch is used on the Non Fire Rated ED5400 and ED4400 Exit Devices.

Corbin Russwin Part # 650F55-8

The International Door Closer 8730S is designed for narrow stiles. The minimum stile width is 2-19/32 inches. It will not work on a true narrow stile door witch is usually 1-3/4 inch. The 36 inch version is 33-15/32 inches and the 48 inch version is 44-3/4 inches. The device is rated Grade 1, which is the highest rating. Rods are 1/2 inch diameter tubular with rod guides. The exit ships will all screws and strikes need for instillation.

The International Door Closer 1804BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 48” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The Jackson Panic Device 1095 Standard Strike is a strike they have been using for the past 20 years.  You might have one of the older roller strikes, but this will work in its place.  The older style roller strike is no longer available.  Jackson Exit Device part # 30-2436.

The Door Pull Plate 5810 is 7/32" thick forged plate made of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE10, handles come with thru bolts and finish washers. The plate has counter sunk holes and sheet metal screws for mounting. 3-1/2 x 15 inch plate only.

Finishes

The Jackson 1085 Panic Device is one of a few original manufactures of Panic Hardware for aluminum framed glass doors, or storefront doors.  The 1085, 1095 along with their door closer the 20-330 were installed on about half of these doors in the 1970's and 1980's.  They were installed on Vistawall and Kawneer doors just to name a few.  Universally recognized as the standard for aluminum storefront hardware it is made of high tensile strength aluminum.  The device is Non Handed, Comes with 45" cross bar that is easily cut in the field.  Also includes the Concealed Vertical Rods, Screws and Strikes.

Replacement parts are available, in stock!

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This Lever Trim is now reversible.   To change the hand all you have to do is remove the shear pin, rotate the handle and reinsert the shear pin.

Doromatic PS914x900-2RS Power Supply

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue

The Jackson Panic Device 1085 and 1095 Thumb Piece Dogging Pin 30-1117 is a replacement for the Screw Driver Headed Dogging Pin.  Now instead of using a screw driver you can use the handy thumb piece instead.   The package comes with new set screw, spring, and of course the pin.  Jackson part number 30-1117.

Yale 7110 Top Latch 60-7010-0049-999

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

The Corbin Russwin 651F62 Blue Lever Spring is same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors outside trim lever handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

The Cal Royal Products 900 Series Door Closer is a unique one, it is the only closer that has the 3/4" x 11-1/8" hole spacing.  We have seen a few versions of this closer, some have 6 mounting holes, and some have 4.  If your closer has a spacing of 11-1/8", and has 3 holes on each size, this is the only closer I know of that is like that.  The 900 Series is a Grade 1 closer, the heaviest duty rating possible.  The door closer has adjustable spring tension, closing, latching and back check valves and is Barrier Free rated.  The package comes with all of the  mounting screws and a parallel arm bracket, so it can be mounted on the left, right, push, pull or top jamb for mounting.

The Von Duprin 990TP Trim is known as a Thump Piece Trim.  The key cylinder locks and unlocks the thumb piece, key cylinder sold separately.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990TP-R&V.

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

The Von Duprin Strike 299F is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.  Ships with shim and mounting screws.

Von Duprin Part # 299F

The Corbin Russwin 651F61 Red Lever Spring is the same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors on there outside trim Lever Handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

The Jackson Panic Device Crossbar is for use on the 1085 and 1095 hardware.  The bar is 45" long and can be cut in the field with a chop saw or hack saw.  There is a groove the entire length of the bar for added and strength and for the thread forming screws to thread into.  The Jackson part number is 30-733-PKG, and it ships with the cross bar screws.

Jackson Part # 30-744PKG or 30744PKG

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

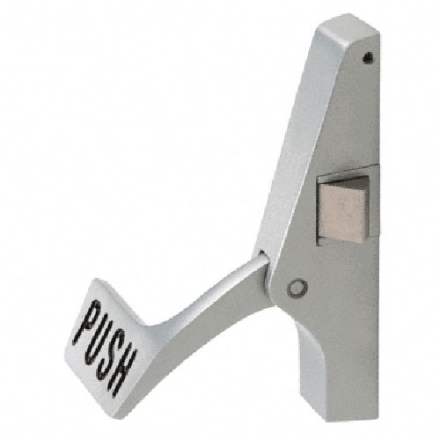

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

Falcon / Dor-o-Matic EL1790 Panic Device

The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp, 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

The Panic Hex Key 3/16" is used on some of the Corbin Russwin panic hardware.  The key measure 3/16" hex by 2-1/4" long.  At this point we do not know of any other manufacture that uses this size key.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key.

The Jackson Panic Device Top Bolt Guide Assembly is used on the 1085, 1285, and 2086 hardware.  The piece works by sliding over the top rod when the device is opened. This keeps the rods retracted until the Plunger hits the Trip Assembly when it is closing.  Upon hitting the Trip Assy, the plate slides over and the rods retract.  It measures 1-1/2” deep x 1-1/16” wide x  15/16” tall, with a hole spacing of 3/4" on the mounting screws.   Assembly includes the mounting screws.  The Jackson Part number is 30-934.

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

The Von Duprin 22 Center Case 109012 has been around for almost 40 years.  This case will replace all of the non fire rated center cases, meaning all of the devices that have a hex key dogging assembly on the hinge side cover plate.

Von Duprin Part # 109012

The Door Pull Plate 5021 is a .050" solid wought plate in either aluminum, brass or stainless steel depending on the finish. The Door Pull GHE21 has 6" centers, handles come with thru bolts. The plates are pre drilled with counter sunk holes and come with sheet metal screws.

Finishes

The Door Pull Plate 5020B is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

Falcon 650236 24-V Center Case

Replacement Center Case for the Falcon 24-V Narrow Stile Surface Vertical Rod Device.  This Center Case is the same for the Fire Rated and Non Fire Rated devices.

Falcon Part # 650236
