The International Door Closer 200 Series Overhead Concealed Closer has been in there line up for at least 20 years.  It is designed as a replacement for the Jackson 20-330 concealed closer.  This closer is a fixed spring closer with two adjustment valves, one for closing and one for latching speeds.  It has a built in positive back stop and hold open positions, if you order the hold open option.  To order select the desired opening swing (90 or 105 degrees) and hold open or non hold open.  This is just the hydraulic cylinder, the arms are sold separately.

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

LCN Door Closer 4111 HCUSH Hold Open

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Cal-Royal 9000 Series NESC Lever Trim features hardened steel tailpiece and heavy duty spring to prevent sagging. Standard 6-Pin Schlage C mortise cylinder included. Rigid entrance, key locks or unlocks lever.

Monarch / Falcon 24-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

• Hand: Non-handed.
• Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
  US32 (629); US32D (630); US28 (628), 313AN.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2” dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine
  screws standard.
• ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
• Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

The Norton Door Closer Parallel Arm Bracket is the bracket shipped with the Norton 1600, 7500, 8301, 8501 and 9300 series closers.  This bracket is also used by Yale on there 2300, 50, 3301, 3501 and 4400 door closers.  The factory part number on this is 1618A for Norton and 289A for Yale.

The Door Push Plate 50 is the most common push plate we find out in industry today.  It does not matter what type of commercial building you go into, you will find this style and thickness plate.  The are offered in standard sizes, that are shown below, and can be made to custom sizes.  The plates are 16 gauge metal (.050 thick) and are shipped with 4 beveled edges.   The matching finiish screws are shipped with each plate.

Finishes

3 x 12" GPH312
3.5 x 15" GPH315
4 x 16" GPH416
6 x 16" GPH616
4 x 20" GPH420
8 x 16" GPH816

The Yale Door Closer 3501 is constructed of a cast aluminum alloy.  It is considered a Grade 1 Closer, which is the highest grade possible.  The closer features an adjustable spring tension, and separate closing, latching and back check intensity valves.  The full plastic cover is standard on this closer.  This door closer replaces the older 3501BF closers. The new version is Barrier Free Complaint.  The hole spacing is 3/4" x 12", the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum cylinder.  This closer ships with all of the mounting hardware and parallel arm bracket.

The Cal-Royal 4500 Series Lever Trim is for use on the 45-RIM and 45-SVR Exit Devices. The Lever Trim is non handed and ships with a 6-pin C Keyway Cylinder. The function is Classroom, which means the key will lock or unlock the lever. The lever also incorporates a clutch function so the mechanism will not break when excessive force is applied to the lever.

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Actuator 4-3/4" square, with blue engraved lettering with text.

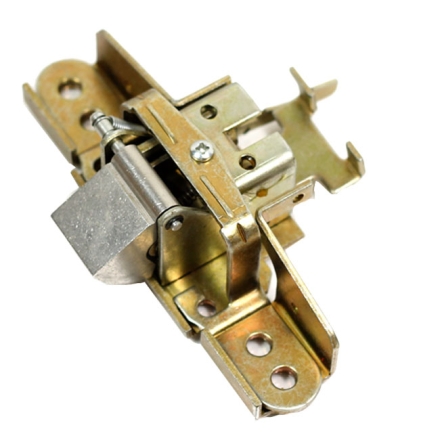

Monarch 19 Series Chassis Assembly

Chassis Assembly for the Monarch Falcon 19-R.

Falcon Part # 650307
Old Monarch Part # 192

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

Corbin Russwin DC6210 Door Closer

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100,110, 120 and 2800, 2810 and 2820 series and also the , DC220, DC2400, and DC2600

Older models may have SL72 or MS93 cast on the cylinders.
You may also find Clarksdale, MS cast on the cylinder also.

The Door Pull Plate 5020B is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

The International Door Closer Arm 3010-PT is for end loading top arm assembly (7/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

Actuator 4-3/4" square, with blue engraved lettering.

The Full Mortise Medium Duty Hinge are a standard butt hinge.  They are designed for medium weight doors with a high frequency of usage, but usually interior doors with a door closer.  The hinge offers two bearings, to provide easy rotation.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

The Von Duprin 99 Cover Plate 050114 is for use on the  33A, 35A, 98 and 99 devices.  Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.  Von Duprin is only shipping a 20-1/2" cover plate now, which will work on 3' and 4' doors, you will have to cut more off if you have a 3' device with a hack saw or chop saw.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

Von Duprin 99 Cover Plate 050114

The LCN Door Closer Cover is the standard plastic cover that ships with LCN Door Closers.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape cover on the door closer cylinder.  The part number is the Series Number followed by -72.   So, the part number would be 1460-72, 4010-72, 4020-742, 4030-72, 4040-72 and 4110-72.   We have access to all the covers, if yours is not here call us and we will quote you a price.

The Securitron EPT Electric Pwer Transfer provides concealed, secure power and data conduit between a frame and the door.   Transmitting power to electrified locks and exit devices and more.  The EPT comes in two lengths, 10 inch cord and 18 inch cord.

American Exit Device 60 Series and Dorma 8000 Series Dogging Assembly

This is the assembly that keeps the latch bolt retracted when the hex key is tightened.

Yale 7000 Series End Cap

Yale Part # ECK7

Newer impact resistant end cap. Replaces all of the older version end caps for the Yale 7000 series.

Shown in stainless steel.

The Door Pull Plate 5012 is a .050" wought plate with Door Pull #12-6" center. The handle and plate are solid aluminum, brass or stainless steel depending on the finish ordered. Handles come with thru bolts and plate steel metal screws.

Finishes

The Corbin Russwin 704F66  ED4000/5000 Series End Cap is their newer impact resistant cover.   The package ships with the End Cap, Bracket and Mounting Screws.  The new bracket my not fit your existing holes, but this end cap is a substantial improvement over the previous versions.  Our image shows the Stainless Steel version.  This end cap is known as the 704F66 for Corbin Russwin, and ECK7 for the Yale version.

The Full Mortise Regular Weight Hinge are for lighter weight interior doors without a door closer.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

The Russwin 2800, 2810 and 2820 are no longer available. They have been replaced by the Corbin Russwin DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 2800, 2810 or 2820 door closers. The Corbin Russwin DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Sargent 80 Series Lever Trim

The Door Pull Plate 5021 is a .050" solid wought plate in either aluminum, brass or stainless steel depending on the finish. The Door Pull GHE21 has 6" centers, handles come with thru bolts. The plates are pre drilled with counter sunk holes and come with sheet metal screws.

Finishes

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Dorma 8000 Series End Cap comes with the two plastic pieces and the mounting screws.
