Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

The Ives Wall Bumper Stop WS407-CVX our economically price convex wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Saddle Threshold 425 - 5" Wide By 1/2" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

Saddle Threshold 426 - 6" Wide By 1/2" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

The Ives Wall Bumper Stop WS407-CCV our economically price concave wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

Sargent Exit Device 80 Series Plastic End Cap

This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

Sargent Part # 68-0561

The Sargent Door Closer 1331  is a standard template closer with the 3/4” x 12” hole spacing.  This closer is a great replacement for the Norton 8000 Series or Yale 3000 Series Door Closers.  The closer is constructed of a cast aluminum body and has a heat treated steel pinion and rack.  The 1331 has the ability to be mounted on the push, pull or top jamb, and is non handed.  We stock the aluminum finish, but also have the dark bronze finish, it just might take an extra day or so.  We ship the 1331-JUO.

Step N Pull®

Stop the spread of germs with this ingenious product. Simple step on the plate and pull the door without grabbing the door pull.

Includes:

1. One StepNpull®
2. Required mounting screws
3. Two stickers, one for the door and the other for the mirror, paper towel dispenser or hand dryer. Actual dimensions are 5"x4"

Currently we only have Aluminum in stock.
Available in Aluminum, Gold or Copper Finish-See Color under "More Views"

The Von Duprin Panic Device 230L Lever Trim will work on the 22 and 2227 series exit devices.  In 2008 this lever was redesigned and went from a key in the lever to the new style which has the key above the lever.  The plate measures 3" wide by 6-3/8" high and is 15/16" thick.  This lever only comes in sprayed aluminum or dark bronze.  We also have replacement parts for this particular trim piece in stock, email  us under the contact tab at the top of the page.

Cylinder not included

Installation Instructions

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

Other finishes are available upon request.

Von Duprin 6113 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6113 has a 3/4” latch bolt throw, 6” face plate length, 1-5/8” width, and an 1-15/16” backbone depth.  The lock retrofits the VD 3011 and VD 3021.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

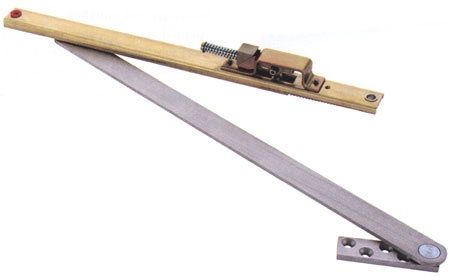

The Glynn-Johnson Overhead Door Holder 100 Series Concealed Mounting, provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

The Norton / Yale Door Closer 7701-3 Hold Open Arm is the standard hold open arm shipped with Norton and Yale Door Closers.   It is known as a Friction Hold Open, because as the arm rotates it tightens down two plates together.   Adjusting the large hex bolt on the Hold Open Assembly determines where the arm will hold open.  This part has had a couple of numbers over the years 7701-3, 1620-3 for Norton and 400-3 for Yale.

The Clear Plastic Corner Guards 313 are a good way to protect corners from hand carts and dollies in areas of lighter traffic.  If the area has a lot of traffic, like a warehouse, I would recommend the 310 or 311 which are made of metal.  The are 2-1/2" by 2-1/2"" and are usually 48" long, but we can do custom sizes.  They are constructed of .120" thick clear polycarbonate plastic.  Screws are included for mounting.

The Sargent 281 Door Closer is also known as the Powerglide, This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed.  This closer is the replacement for the 1250 and 1251 series closers.  This closer has been the replacement for the 1250 since about 2000.  It is manufactured of an aluminum alloy.

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

The Von Duprin Panic Device 880K Trim is for use with the 88 series devices only.  Plate measures 3" wide by 14-3/16" long with an 1-5/8" diameter bore for cylinder. Knob projects out 2-3/4".  We do not sell many of these anymore, due to ADA requirements, but they are still available.

This CRL Jackson® Exit Deviceblends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.

The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

Monarch / Falcon 25-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

Hand: Non-handed.
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
US32 (629); US32D (630); US28 (628), 313AN.
Strikes: 299 strike standard.
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out..
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-3⁄4" maximum, 2" dogged.
Mounting Height: 40-1⁄4" from CL to finished floor.
Fasteners: All mounting screws are concealed, sheet metal screws and machine
screws standard.
ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

4" Kickdown Door Holder FS544

The H.B. Ives FS544 Kick Down Door Holder has been a staple in schools for many years due to its heavy duty construction and inexpensive price.  This is one of our most popular Kickdown Door Holder/Stop for the past 35 years.  It is constructed of durable cast iron, which has great strength characteristics.  The shoe is made of a non-marring rubber, which is replaceable.  The shoe is also held in place with a screw, which makes it a great option in schools and area of high vandalism.  This holder will work on door to floor clearances of 2" or less.  The hole spacing is 7/8" x 1-9/16".

Made by H.B. Ives

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

The Ives Wall Door Stop WS443 has been a staple of the Ives product line for at least the last 45 years.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11/16" projection from the wall.  This product ships with an expansion shield and lead shield.

The Von Duprin Panic Device 880TP Trim is for the 88 series only.  The stanchions welded on the back line up with the 88 device on the interior.  The optional key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 14-3/16" long with an 1-5/8" bore hole for cylinder.

Von Duprin part # 880TP-R

The Cal Royal GLS7700 Rim Device is for use on Aluminum Framed Glass Doors when the Stile width is 1-3/4 inch or more.  The exit device ships with wood and machine screws, along with the Strike plate.  The stainless steel latch bolt has a 3/4 inch throw. This device is a Grade 1, which is the heaviest duty rating.

Floor Door Stop Dome 1-3/8" FS438

We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".

The Jackson Panic Device Top Bolt Guide Assembly is used on the 1085, 1285, and 2086 hardware.  The piece works by sliding over the top rod when the device is opened. This keeps the rods retracted until the Plunger hits the Trip Assembly when it is closing.  Upon hitting the Trip Assy, the plate slides over and the rods retract.  It measures 1-1/2” deep x 1-1/16” wide x  15/16” tall, with a hole spacing of 3/4" on the mounting screws.   Assembly includes the mounting screws.  The Jackson Part number is 30-934.

The Sargent Door Closer Hold Open Arm 25-H is known as a Friction Hold Open Arm.   As the arm rotates it tightens the two plates together until they can not turn any more, and holding the door open.  To close you just pull the door and it will "unscrew".   The hold open position is adjustable by tightening or loosening the larger nut.

Sargent part # 25-H

LCN Sentronic Door Closer 4414ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN SENTRONIC DOOR CLOSER 4410ME parts are also available.

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Von Duprin 6114 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Yale Door Closer 4400 has been around for quite a long time, and was designed to replace the older 400, which are still made. The beauty of the 4400 is that is can be mounted left or right, push, pull or top jamb, were as the 4200 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 4400BF, the barrier free version, the new 4400 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.
