Cal-Royal

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

The Cal Royal Products 900 Series Door Closer is a unique one, it is the only closer that has the 3/4" x 11-1/8" hole spacing.  We have seen a few versions of this closer, some have 6 mounting holes, and some have 4.  If your closer has a spacing of 11-1/8", and has 3 holes on each size, this is the only closer I know of that is like that.  The 900 Series is a Grade 1 closer, the heaviest duty rating possible.  The door closer has adjustable spring tension, closing, latching and back check valves and is Barrier Free rated.  The package comes with all of the  mounting screws and a parallel arm bracket, so it can be mounted on the left, right, push, pull or top jamb for mounting.

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue

Cal Royal 2000 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

Cal Royal 2000V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only

Cal Royal 5000 Rim Device

Grade 2
Heavy gauge steel construction, powder coated colors

Cal Royal 2200 Escutcheon Lever Trim

2-5/16" X 8-1/2"

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

Cal Royal 5000 Lever Trim

Cal Royal Part # 8000/L

Cal Royal 2000 and 5000 Knob Trim

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

Cal Royal 5000 Surface Vertical Rod

Grade 2 exit device

Cal Royal 7000 Series Dummy Plate

2-5/8" X 15"

Cal Royal 7000 Night Latch Trim

2-5/8" X 15"

Cal Royal 5000 Dummy Trim

3" X 7-3/4"

Cal Royal 5000 Night Latch Trim

3" X 7-3/4"

Cal Royal Thumb Pc Trim

Works with the 7700 Series

2-5/8" X 15"

Cal Royal 7000 Lever Trim

Cal Royal 7000 Escutcheon Lever Trim

2-3/4" X 10-1/4"

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

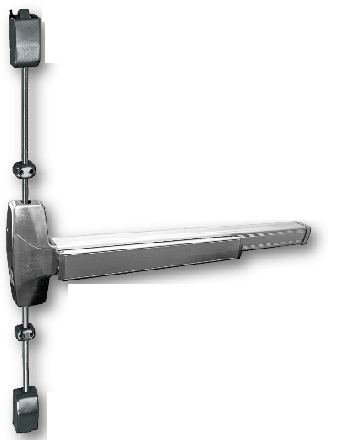

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

Cal Royal 2000 Series Exit Device Lever Trim

Non-handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For
1¾” and 2 ¼” doors. Prefix THI before part # for 2 ¼” door
thickness. Available for fire and non fire rated rim and
vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”.

The Cal Royal Products 800 Door Closer is one of there newer closers.  The CR801 has a hole spacing of 3/4" x 12" and ships with either a full cover or slim cover.  The full cover will hide both spindles, were as the slim cover will not.  This closer is a Grade 1 closer, the heaviest rating possible.  The cylinder has adjustable spring tension, closing, latching and back check speeds.   It can be mounted on the push, pull or top jamb.  The CR801 will work in place of the Norton 8000 and Yale 3000 series door closers, with no new drilling.

CR801S - SLIM COVER

CR801 - FULL COVER

Ships within 24 hours from California.

The Stainless Steel Engraved Push Plate is newer to our product line, but has been a very good seller.  This plate is constructed of 16 gauge (.050") thick stainless steel, and comes in two different sizes, the 3-1/2" x 15", and the 4" x 16".  The black engraved "PUSH" is 3/4" tall.  We can only get this is stainless steel at this time, and the mounting screws are included.

The Cal Royal 4400 Rim Exit Device has a Grade 2 rating. The device features a 3/4" Latchbolt, Roller Strike and a 1" diameter Crossbar. The device comes in a brushed chrome and dark bronze finish, and comes with either a 36" or 48" crossbar. You would need a 4-1/2" minimum stile width.

The Cal-Royal 221 Bottom Strike is used on the 2000, 5000, 7000 and 9000 Panic Bars with Surface Vertical Rods.

The Cal Royal 239 Rim Strike is used on the 9800 and 2200 Rim Devices.  The Strike is Nylon Black Coated.

The Cal Royal TAIL1 is an extender for the ENTOOL Lever Trim.  The extender works on doors up to 2-1/4 inches thick.  The TAIL1 includes two longer screws, two set screws (not shown), allen wrench, and hub adaptor.

The Cal Royal GLS7700 Rim Device is for use on Aluminum Framed Glass Doors when the Stile width is 1-3/4 inch or more.  The exit device ships with wood and machine screws, along with the Strike plate.  The stainless steel latch bolt has a 3/4 inch throw. This device is a Grade 1, which is the heaviest duty rating.

The Cal Royal GLSRIM9800 is an Entrance Function Lever Handle for the GLS7700 and GLS9800 Narrow Stile Rim Exits.  The Base measures 1-3/4 inches wide by 8 inch tall, with a 2-3/8 inch thick base.

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.
