The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old.  It measures 3/8" diameter by 1/2" long with 14 threads per inch.  They did have an old style that was available up to a few years ago that had 15 threads per inch.  If you have any old style I would recommend the D100 Panic Bar Retainer.

Von Duprin part # 090053

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

The Panic Hex Key 5/32" x 3-1/16" Long is a must for Von Duprin 22, 33, 35, 98 and 99 panic hardware.   This key has a longer shaft to reach deeper into the Von Duprin Panic Devices.   This key is also known as Hex Key, Dog Key, Allen Key,  and Dogging Key.

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Von Duprin 33/35/98/99 push bar stock absorbers. This is the piece that makes these Von Duprin exit devices one of the quietest devices made.

Von Duprin Part # 050491

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

The Von Duprin Panic Device Keyed Mullion Retrofit Kit KR54 is used to convert the 1654 and 4954.  Keyed Removable Steel Mullions makes removal faster and easier by a single operation of the mortise cylinder. Once mullion is removed, large equipment or furniture can freely pass through the opening. The unit will self lock when re-installed, without use of the cylinder key. Uses a 1-1/4´´mortise cylinder with a straight cam (Schlage cam reference B502-191). Cylinders are sold separately.

Von Duprin Part # 050168

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

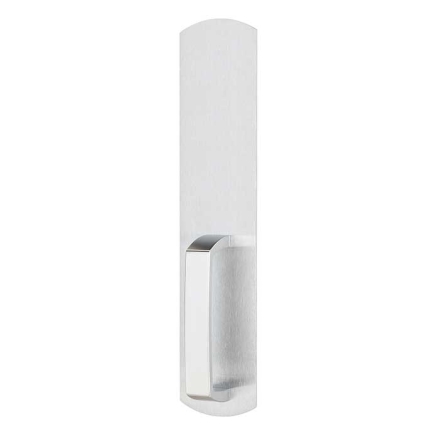

The Von Duprin 990DT Trim is known as a Dummy Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.  Order here for the 990DT-R&V.

Von Duprin Exit Device Lever Trim Shear Pin Kit

This is the component that is designed to break, if the lever handle is forced to open , this pin snaps so your trim is not destroyed. 3/16" diameter shaft by 5/8" overall length. Retaining Ring included. This shear pin is used on the 230L, 360L, 992L, 994L and 996L Von Duprin Lever Trims.

Von Duprin Part # 050611 Old Part # 971583

The Von Duprin Dogging Hook 090044 is the piece that grabs the push bar mechanism and keeps it in the dogged position.  The does wear out, but it takes a long time.  This piece is used on the 22, 33A, 35A, 98 and 99 series devices made after 1997.  We sell this part individually and it is #5 on the diagram.

The Von Duprin Thumb Piece 970488 is just the thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.

Von Duprin Part # 970488
Old Part # 960303

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 050036 5547 Bottom Rod Kit is for use with the 5547 Concealed Vertical Rod panic hardware.

Von Duprin Part #050036
Old Von Duprin Part #102551

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

The Von Duprin 55 Hinge Case Axle 090051 is used the Rim inactive housing, and all of the other 55 panic hardware.  Such as the 5547, and older 5575's.

Von Duprin Part # 090051 or 090026

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only.  The Rim device is one that has a latch bolt sticking out of the housing.

Von Duprin Part # 090050 or 090022

Von Duprin 050023 98/9975-F Center Case Kit

The Von Duprin 050023 98/9975-F Center Case Kit less cover is used on the 9875 and 9975, Panic and Fire Rated Hardware.

Von Duprin Part # 050023

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

The Von Duprin 88 End Case 050435 is also known as the hinge case, meaning it is on the hinge side of the door.   This End Cap is used on all of the Von Duprin 88 models, which include 88, 8827, 8847 and 8875.   This piece does all the lifting of the cross bar, so it is an important component.  The case includes the all of the internal workings and springs.

Von Dupin Part # 050435

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

The Von Duprin Panic Device 55 Left Hand Arm 050112 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050112

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.

Von Duprin Part # 968601

The Von Duprin 55 Hinge Case Spring 090052 is the spring in the inactive case.  This spring does all of the lifting of the cross bar, and is used on the 55 Rim, 5547 Concealed Vertical Rod and 5575 Mortise Device.  It measures 1-5/8" long by 5/8" diameter.

Von Duprin part # 090052

The Von Duprin 248L-4 Strike is used as a Bottom Surface Mounted Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 248L-4 strike measures 9/16" wide by 2-1/2" high with a hole spacing of 1-7/8. The strike projects out 3/8".  Ships with shim and mounting screws.  Burnished steel construction.

Von Duprin Part # 248L-4
