The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map.  It is designed for all types of single and double doors with mullions.  It is field reversible, and ships with a 42" cross bar that can be cut down in the field.  The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.

The Von Duprin 050053 5547 Top Rod Kit 6'8"-8' Door is for the 5547 Concealed Vertical Rod.  The kit include the rod, and latch for a door height of 6'8" to 8' tall.

Von Duprin Part # 050053
Old Von Duprin Part # 104759

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

The Von Duprin 9927 Top Vertical Rod 110573 is the standard top rod for door heights up to 7'1".  The length of this rod is 35", less the fittings.  For larger doors you can order a Rod Extension Kit, which at this point we do not have online.  The rod is field adjustable if your doors are less then 7'1".  The Old Von Duprin part # is 110573, and the Newer Von Duprin part # is 050512.

Von Duprin 050574 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

Von Duprin 8827 Top Vertical Rod

Standard top rod for a 7'2" door. The rod measures 35-1/2 inchs long.  Top Rod connector not included.

Von Duprin part # 050453
Old Part #960581 and 961628

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

Von Duprin 8827 Bottom Vertical Rod Assembly

This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector. The rod is 31-7/8 inches long, excluding the rod connector.

Von Duprin Part #050455
Old Part #101777 and 103234

The Von Duprin 8827-F/47-F Soffit Latch Kit 114141 fits in the header of the door frame and is used on the Von Duprin 5547-F, 8827-F and 8847-F.  The plunger is spring loaded.

Von Duprin Part # 114141
Old Part # 102930

The EPT-2 Von Duprin Power Transfer is a 2 wire, 18 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-2

The Von Duprin Thumb Piece 970488 is just the thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.

Von Duprin Part # 970488
Old Part # 960303

The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1".  The actual length of the rod is 37-3/8", less the fittings.  If your door is taller you will need a rod extension.  Call 1-800-642-2403 for longer top rods or rod extensions.

Von Duprin part # 109361

The EPT-10 Von Duprin Power Transfer is a 10 wire, 24 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-10

The Von Duprin 050190 Bottom Fitting is for the 5654 / 5754 Mullions.  The package includes the bottom fitting and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-7/8"

Von Duprin part # 050190

Von Duprin 050519 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519

The Von Duprin Strike 1409 Blade Stop is used on just about every Von Duprin Rim Device when door frame protection is needed.  We see this strike on many Narrow Stile door setups.  The strike measures 1-7/8" by 1-3/4" outside dimension. The strike has a projection of 1/2".  The strike is constructed die cast metal and the blade is made of stainless steel.

Von Duprin Part # 1409

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 99 Push Bar Retrofit Kit-Pbkit updates your current version touch pad, to the newest version. Used on all the Von Duprin 33A, 35A, 99 and 98's.  For doors 30" to 36" order the 36" size. If your door is 36" to 48" order the 48" size.  The Push Bar is 18" wide on the 36" version.  Please allow 1 week for delivery.

Von Duprin part # PBKIT

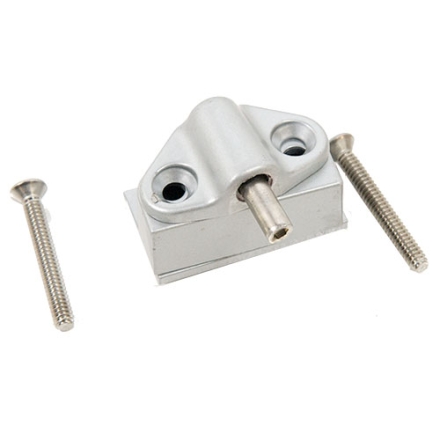

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

Other finishes are available upon request.

The Von Duprin Strike 1609 strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.   This Strike is not rated for Fire Doors, which are usually interior corridor doors.

Von Duprin Part # US19-Black finish

The Von Duprin 050130 Fitting Set is for the 5654 / 5754 Mullions.  Set includes top and bottom fittings, all of the mounting screws.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8".

Von Duprin Part # 050130

The Von Duprin 88 End Case 050435 is also known as the hinge case, meaning it is on the hinge side of the door.   This End Cap is used on all of the Von Duprin 88 models, which include 88, 8827, 8847 and 8875.   This piece does all the lifting of the cross bar, so it is an important component.  The case includes the all of the internal workings and springs.

Von Dupin Part # 050435

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

Von Duprin 8827 Bottom Rod Connector.

Connects bottom rod to the bottom latch. The Bottom Rod Connector is included with the Von Durpin Bottom Rod.

Von Duprin Part # 050327
Old Part #960578

Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

The Von Duprin 6000 Series Solenoid Kit is used to replace burnt out solenoids on there 6000 series.  To order determine the voltage and whether you have fail safe or fail secure.

Part # 050237 12 VDC (Fail Safe & Fail Secure)
Part # 050239 16 VDC (Fail Safe & Fail Secure)
Part # 050240 24 VDC (Fail Safe & Fail Secure)

Von Duprin 88 Spring Tube

Spring tube measures 2-1/4" long by 3/8" diameter, steel construction.

Von Duprin Part # 050476
Old Part #951081

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

Von Duprin 8827 Chassis Tie Rod Pkg 050328

The 8827 Chassis Tie Rod Package is the rod that goes through the top and bottom latches. The Tie Rod is held in place by the Special Chassis Nut. The Tie Rod measures 1-3/8" long by 3/16" diameter.

Von Duprin Part # 050328
Old Von Duprin Part # 967616

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759
