The LCN 79 Door Closer Rod And Shoe  piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

The Norton Door Closer Parallel Arm Bracket is the bracket shipped with the Norton 1600, 7500, 8301, 8501 and 9300 series closers.  This bracket is also used by Yale on there 2300, 50, 3301, 3501 and 4400 door closers.  The factory part number on this is 1618A for Norton and 289A for Yale.

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

LCN Sentronic Door Closer 4414ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN SENTRONIC DOOR CLOSER 4410ME parts are also available.

Norton 7701-11 Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" and 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

Cal Royal 5000 Dummy Trim

3" X 7-3/4"

The LCN Door Closer 4041XP-CUSH is the same cylinder as the 4040XP, but with a CUSH arm (4040XP-3077CNS).  This closer can only be mounted in the parallel arm configuration.  With this closer you get the XP heavy duty cylinder with the heavy duty CUSH arm.

We ship the 4041XP-CUSH

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

LCN 4630 replacement arm, LCN part # 4630-3077T

The LCN Door Closer Hold Open Arm 3049 has an adjustable nut that allows the door closer arm to lock when they reach a pre select position.  This arm can be used on most LCN Door Closers because the Hold Open function is in the arm.   If you have a regular armed LCN Closer currently, you can use this arm to make them have the Hold Open function.  Two words of warning, they can not be used on an interior fire rated door, and Hold Open arms usually break.   The manufactures sell more door closers with regular arms, but we tend to sell more Hold Open arms, meaning they wear out or break a lot easier then Regular Arms.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049 (non handed), 1460-3049 (non handed), 4010-3049 (handed), 4020-3049 (handed), 4040-3049 (non handed).   The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.

The Sargent 646 Surface Strike is used on the 20, 30 and 80 Series Surface Vertical Rod Panic Hardware and Fire Rated Hardware.  It is used as a strike for the top latch. The strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

Sargent Part #646

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is specail ordered.

The arm shown in the picture is a 4040SE arm, the 4010SE arm is the same, but the shaft hole is an oval.

The concealed LCN Door Closer 2031 -2035 Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.  It is considered an application specific closer, due to the cylinder spring sizing and handing.  The standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack.  Aluminum frame requires minimum 1 3/4”  x 4”  tube.

Norton PT24SOL 24 Volt Solenoid Assembly

If your Norton or Yale PowerTrack Door Closer is not holding the door open, this is usually the problem. To trouble shoot, first make sure you have voltage going to the solenoid. If you have voltage going in, and the door is still closing, then your solenoid is burned out. The solenoid is under constant voltage, so they do not last forever. The assembly measures 6-1/2" long by 1-1/8" wide with a height of 3/4". We sometime find the number F98024SH.1315 24 VDC on the solenoid.

Norton Part # PT24SOL

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

The Von Duprin 55 Rim Latch Bolt Spring 967502 is only used on the 55 Rim Panic Hardware.  This spring just keeps pressure on the latch bolt, it does not lift the arm.  If your arm is sagging, they you need to tighten the crossbar wedge tite screws and check and make sure the 55R200 55 Hinge Case Spring is not broken.  It measures 1-1/2" long by 3/8" diameter.

Von Duprin part # 050354
Old Part # 967502

The LCN Door Closer 4041XP-HCUSH is the 4040XP, eXtra Protection closer with the 4040XP-3049HCUSH Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the CUSH hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, but it has to be mounted in the push side of the door is a parallel arm type application.

The Sargent 20/60 Plastic End Cap Only 68-0434 will also work on the 30 Series Panic Hardware.   The cap has been manufactured for the last 40 years and is made of high impact plastic.  The end cap measures 1-5/8" wide by 2-3/8" tall and projects out 2-3/4".

Sargent Part # 68-0434

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

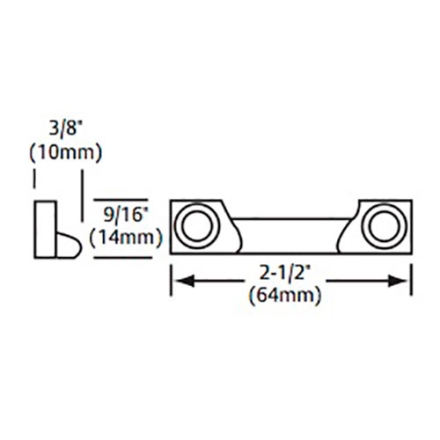

The Sargent 624 Bottom Surface Strike is used on the 20, 30, 60, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike is mounted on the floor and the bottom latch locks on to it.   Strike measures 9/16" x 2-1/2" with a 3/8" projection.   Strike features a black coated epoxy.

Sargent Part #624

The LCN 4040SE-3077T Sentronic Door Closer Arm is only for use with the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

The Corbin Russwin Door Closer Hold Open Arm has been around for the past 40 years.  This replacement hold open arm will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This is considered a Friction Hold Open Arm because as the arm rotates the arm tightens on itself and holds the arm in the open position.  This arm is also known as the A1 arm.  Corbin Russwin part # 688F77.

The International 3010-DP Adjustable Bottom Pivot is for use with the International 3010-K and 3010-PT center hung arms.  This piece is known as an adjustable dual purpose bottom pivot set.

International Part # 3010-DP

The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

Ives FB458 Metal Door Flush Bolt

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

LCN Sentronic Door Closer Rod 82

This LCN Rod will work on most Sentronic Door Closers.
LCN part # 4040SE-82

Door Finger Protector - Exterior Push Side

This model is specifically designed for exterior doors on the push side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG5 for the 78" length, and GFG5+ for the 83" length.

The Corbin Russwin Regular Arm Parallel Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is required if your are going to use a parallel arm mounting, which is when you have the closer mounted on the door, on the push side of the door.  Corbin Russwin part # 188F41-8.

The Von Duprin 990TP Trim is known as a Thump Piece Trim.  The key cylinder locks and unlocks the thumb piece, key cylinder sold separately.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990TP-R&V.

The Von Duprin 248L-4 Strike is used as a Bottom Surface Mounted Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 248L-4 strike measures 9/16" wide by 2-1/2" high with a hole spacing of 1-7/8. The strike projects out 3/8".  Ships with shim and mounting screws.  Burnished steel construction.

Von Duprin Part # 248L-4

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The LCN 1250 Rw/PA Door Closer is a direct replacement for the Norton 1600, Yale 50, Falcon/Dor-o-Matic SC60, LCN 1260 and International 8050 Series Door Closers.  It is  ideal for low frequency and low abusive traffic areas, such as store front doors and interior doors.  It features, a cast aluminum cylinder, 15 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.
Hole Spacing 3/4” x 9-16”

The Von Duprin 9927 Bottom Vertical Rod 110574 is the replacement rod for broken or bent vertical rods.  All of the 9927 bottom rods are the same length, this is set by Federal Building Codes, so the center line of the Panic Hardware is a certain height from the finished floor. The length of the rod is 31-1/4" long, less the fittings.  The old part number on this was 110574, and the newer one is 050514.

LCN 4640 Low Energy Door Closer
